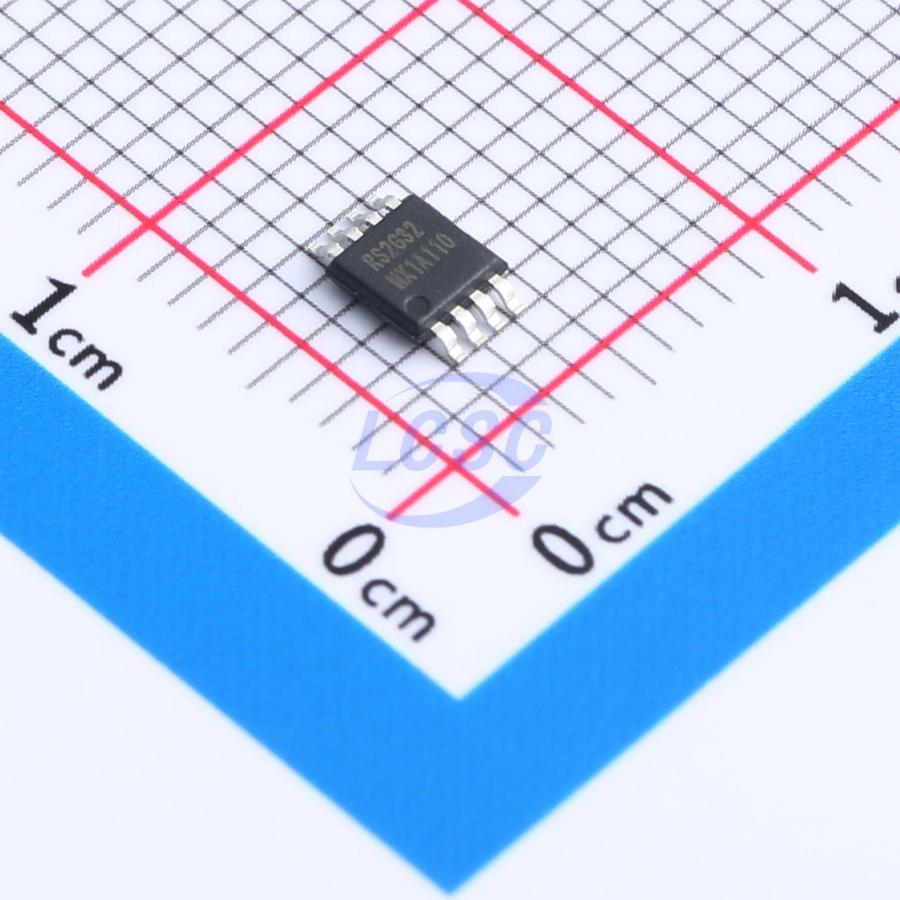

RUNIC

RS2G32XM

1uA 1.65V~5.5V 2.5ns@3.3V,50pF MSOP-8 Gates and Inverters

MSOP-8RoHSActive

Dual 2-input Positive-OR Gate

Manufacturer: RUNIC
Manufacturer part #: RS2G32XM
Store part #: C5372493
Package / case: MSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,090 in stock

#C5372493

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹33.76	₹168.80
50+	₹25.22	₹1,261.00
150+	₹21.55	₹3,232.50
500+	₹16.97	₹8,485.00

Quantity (min 5, multiples of 5)

5 × ₹33.76

₹168.80

excl. GST

₹199.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2G32XM

₹168.80 for 5 + GST

Specifications

Input Logic Level - High: 1.7V;2.2V
Input Logic Level - Low: 300mV;400mV
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V
Quiescent Current(Iq): 1uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Propagation Delay: 2.5ns@3.3V,50pF
Output Logic Level - Low: 550mV
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

Operating Voltage Range: 1.65V to 5.5V Low Power Consumption: 1μA (Max) Operating Temperature Range: -40°C to +125°C Inputs Accept Voltage to 5.5V High Output Drive: ±24mA at VCC = 3.0V PACKAGE: MSOP - 8 The RS2G32 Dual 2 - input positive - OR gate is designed for 1.65V to 5.5V VCC operation. The RS2G32 device performs the Boolean function Y = A + B or Y = A(overline)·B(overline)(overline) in positive logic. The device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receiver
Blu - ray Player and Home Theater
Digital Picture Frame (DPF)
High - Speed Data Acquisition and Generation
Personal Navigation Device (GPS)
Portable Media Player

Key features

Operating Voltage Range: 1.65V to 5.5V
Low Power Consumption: 1μA (Max)
Operating Temperature Range: -40°C to +125°C
Inputs Accept Voltage to 5.5V
High Output Drive: ±24mA at VCC = 3.0V
The device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
