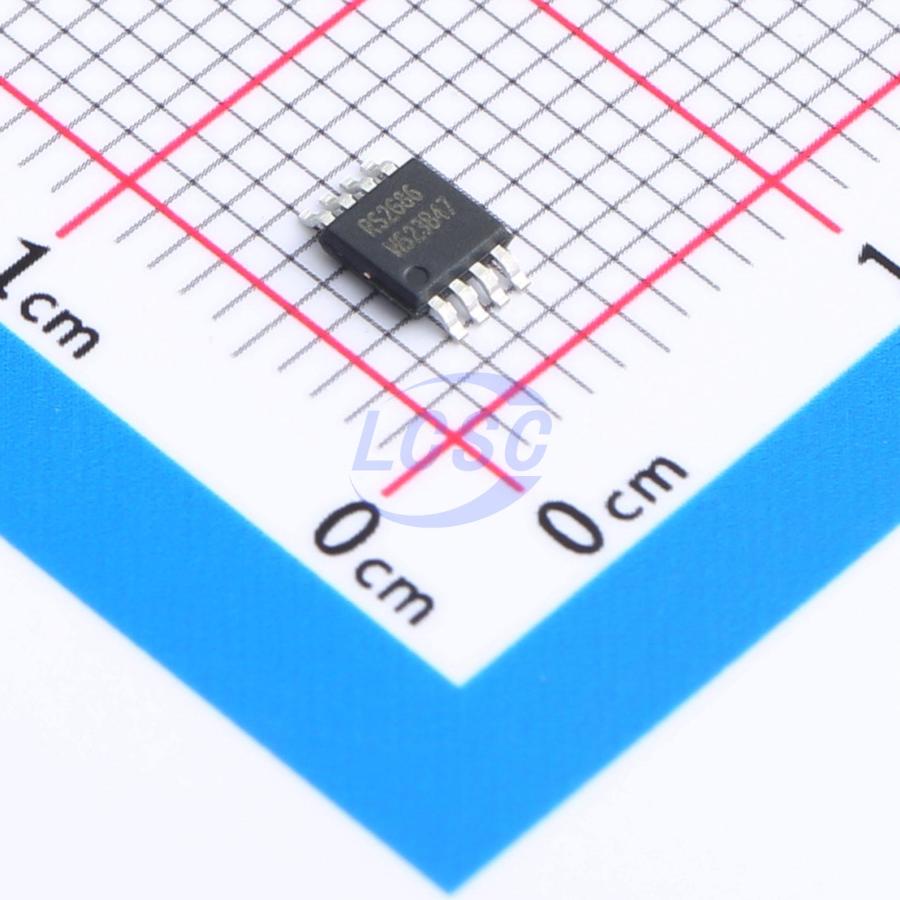

RUNIC

RS2G86XM

10uA 1.65V~5.5V 5.3ns@5V,50pF MSOP-8 Gates and Inverters

MSOP-8RoHSActive

Dual 2-Input Exclusive-OR Gate

Manufacturer: RUNIC
Manufacturer part #: RS2G86XM
Store part #: C19269219
Package / case: MSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,130 in stock

#C19269219

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹28.07	₹140.35
50+	₹20.97	₹1,048.50
150+	₹17.92	₹2,688.00
500+	₹14.11	₹7,055.00

Quantity (min 5, multiples of 5)

5 × ₹28.07

₹140.35

excl. GST

₹165.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2G86XM

₹140.35 for 5 + GST

Specifications

Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 5.3ns@5V,50pF
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.055 g

Overview

The RS2G86 Dual 2-input exclusive-OR gate is designed for 1.65V to 5.5V VCC operation. The RS2G86 device performs the Boolean function Y = A(overline)B + AB(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS2G86 is available in Green MSOP-8 packages. It operates over an ambient temperature range of -40°C to +125°C.
