RUNIC

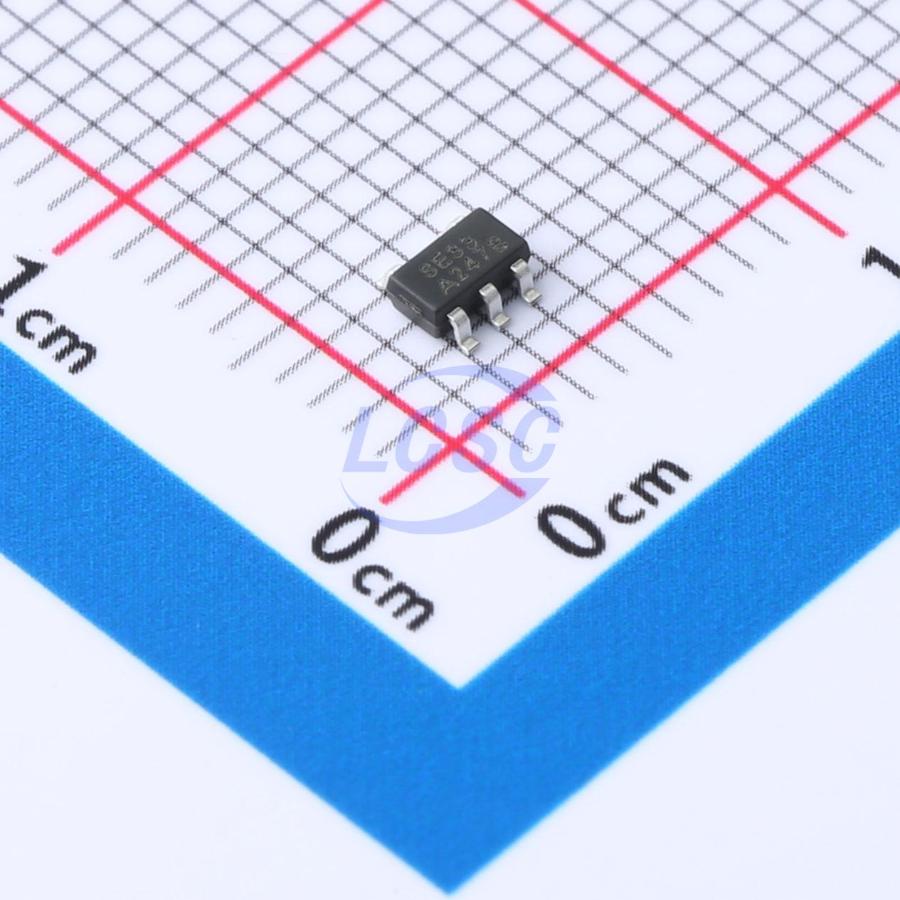

RS3007-3.3ASYF5

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

300mA, Low Power Consumption, High Voltage CMOS LDO Regulator

Manufacturer: RUNIC
Manufacturer part #: RS3007-3.3ASYF5
Store part #: C2912235
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,905 in stock

#C2912235

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.46	₹142.30
50+	₹21.25	₹1,062.50
150+	₹18.16	₹2,724.00
500+	₹14.31	₹7,155.00

Quantity (min 5, multiples of 5)

5 × ₹28.46

₹142.30

excl. GST

₹167.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS3007-3.3ASYF5

₹142.30 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 4uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 45V
Output Type: Fixed
Features: Enable control;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The RS3007 series is a set of low power high voltage regulators implemented in CMOS technology. Which can provide 300mA output current. The device allows input voltage as high as 45V. It is very suitable for multi - cell battery systems, bus voltage power supply systems and other high DC voltage systems. Wide input voltage can make it well withstand the impact of surge voltage and ensure the stability of output voltage. The RS3007 series only consume 3uA (typical), Which is particularly important in battery power system, can reduce the standby power consumption of the whole system. The RS3007 low - dropout regulators (LDO) consumes only 3µA of quiescent current at light load and delivers excellent line and load transient performance. These characteristics, combined with low noise and good PSRR with low dropout voltage, make this device ideal for portable consumer applications.

Applications

Smart Power Network Equipment
Portable Power Tools
BMS systems
Motor control system/Industrial control system
Power Meter/Instrument
White Goods
Vehicle - mounted system
Battery - Powered Equipment
Automotive Head Unit
Security Equipment
Communication Equipment

Key features

Low Quiescent Current IQ: 3µA (Typ.)
300mA Nominal Output Current
Low Dropout Voltage
Low Temperature Coefficient
High Input Voltage (up to 45V)
Output Voltage Accuracy: ±1%/±2%
Fixed Output Voltage: 1.8V, 2.5, 3.0, 3.3V and 5.0V
Current Limit Protection
Over Temperature Protection
SOT23 - 3, SOT23 - 5、SOT89 - 3L and SOT223 Packages
