RUNICDatasheet (PDF)

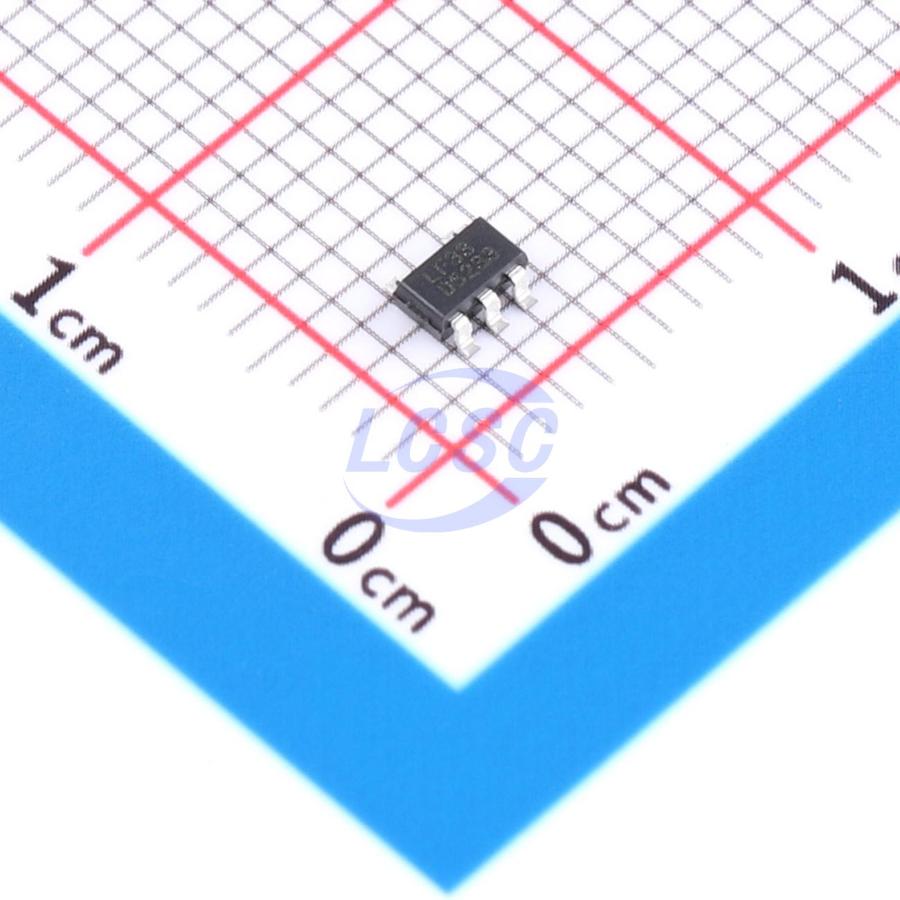

RS3215-3.3XF5-Q1
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 3.3V 500mA SOT-23-5
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3215-3.3XF5-Q1
- Store part #
- C42459573
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C42459573
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.78 | ₹113.90 |
| 50+ | ₹19.81 | ₹990.50 |
| 150+ | ₹18.54 | ₹2,781.00 |
| 500+ | ₹16.95 | ₹8,475.00 |
| 3,000+ | ₹16.25 | ₹48,750.00 |
| 6,000+ | ₹15.82 | ₹94,920.00 |
5 × ₹22.78
₹113.90
excl. GST
₹134.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS3215-3.3XF5-Q1
₹113.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Noise bypass terminal;Input under-voltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
This series of low-dropout, low-power linear regulators delivers excellent AC performance — including high PSRR, low noise, fast startup, and superior line and load transient response — while drawing extremely low ground current. Fabricated using an advanced BiCMOS process, the devices feature a typically low dropout voltage at 500mA output. A precision voltage reference and feedback loop ensure high accuracy, and the devices remain stable with ceramic output capacitors. Available in a variety of green packages with a wide operating ambient temperature range.
Applications
- Post-stage ripple filtering for DC-DC converters
- IP network cameras
- Macro base stations
- Thermostats
Key features
- Input voltage range: 2.7V to 6.5V
- Output voltage range: fixed options 1.2V to 3.3V; adjustable option 1.2V to 6V
- Load current up to 500mA
- Ultra-low dropout: 250mV at 500mA load
- Low quiescent current: 45μA
- High PSRR: 75dB at 100Hz
- Excellent load and line transient response
- Stable with 2.2μF low-ESR ceramic output capacitor
- Fast startup time: 45μs
- High output accuracy: ±0.75%
- Compact packages: SOT23-5, DFN2X2-6, DFN3X3-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS3215-3.3XF5-G#C42459572RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,915 | ₹12.89 · 1,915 in stock | View |
 | RS3217F-3.3XF5#C50202025RUNIC · SOT23-5 | RUNIC | SOT23-5 | On request | ₹6.14 · 0 in stock | View |
 | RS3217-3.3XF5#C42459584RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 3,330 | ₹11.47 · 3,330 in stock | View |
| RS3213-3.3XF5#C54300669RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 2,930 | ₹5.99 · 2,930 in stock | View | |
