RUNICDatasheet (PDF)

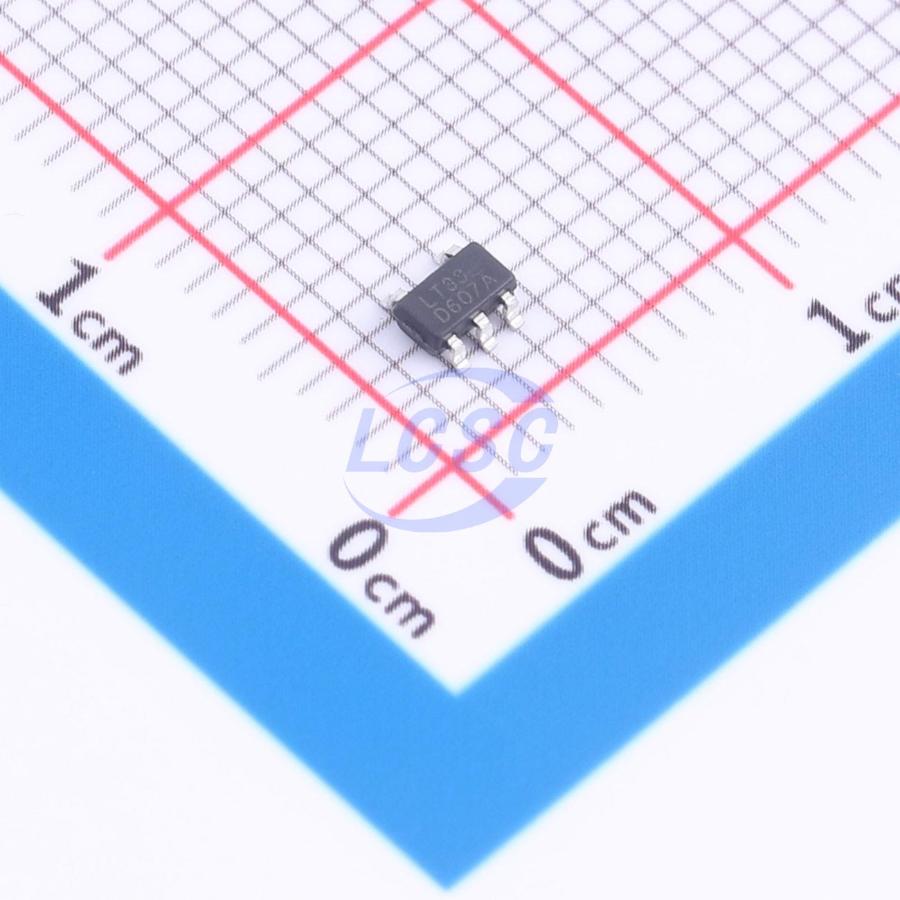

RS3217F-3.3XF5
3.3V Positive Fixed SOT23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-5RoHSActive
IC REG LINEAR 3.3V 500mA SOT23-5
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3217F-3.3XF5
- Store part #
- C50202025
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C50202025
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.14 | ₹61.40 |
| 100+ | ₹4.79 | ₹479.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 3,000+ | ₹3.74 | ₹11,220.00 |
| 6,000+ | ₹3.33 | ₹19,980.00 |
| 9,000+ | ₹3.14 | ₹28,260.00 |
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
RS3217F is a low-noise, low-dropout linear regulator capable of delivering up to 500mA of output current. Designed to meet the power supply requirements of RF and analog circuits, it features low noise, high PSRR, low quiescent current, and excellent line and load transient response. The RS3217F remains stable with 1.0μF ceramic input and output capacitors, and incorporates innovative design techniques to achieve low noise performance without a noise bypass capacitor. The device offers fixed output voltages from 1.2V to 4.2V and is available in compact SOT23-5 and XDFN1X1-4 packages, making it ideal for portable applications where board space is limited.
Applications
- Smartphones & cellular phones
- Personal digital assistants
- MP3/MP4 players
- Digital cameras
- Portable instruments
Key features
- Input voltage range: 1.9 V to 5.5 V
- Output voltage range: 1.2 V to 4.2 V
- Load current up to 500mA
- Ultra-low quiescent current: 20µA (typical)
- Excellent PSRR: 77dB @ 1kHz
- Ultra-low noise: 17μVrms @ 1.8V output
- No noise bypass capacitor required
- Outstanding load/line transient response
- Typical short-circuit protection current: 105mA
- Auto-discharge function
- Output voltage accuracy: ±1%
- Compact packages: SOT23-5, XDFN1X1-4
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS3217-3.3XF5#C42459584RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 3,330 | ₹11.47 · 3,330 in stock | View |
 | RS3215-3.3XF5-G#C42459572RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,915 | ₹12.89 · 1,915 in stock | View |
 | RS3215-3.3XF5-Q1#C42459573RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 2,010 | ₹22.78 · 2,010 in stock | View |
| RS3213-3.3XF5#C54300669RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 2,930 | ₹5.99 · 2,930 in stock | View | |
