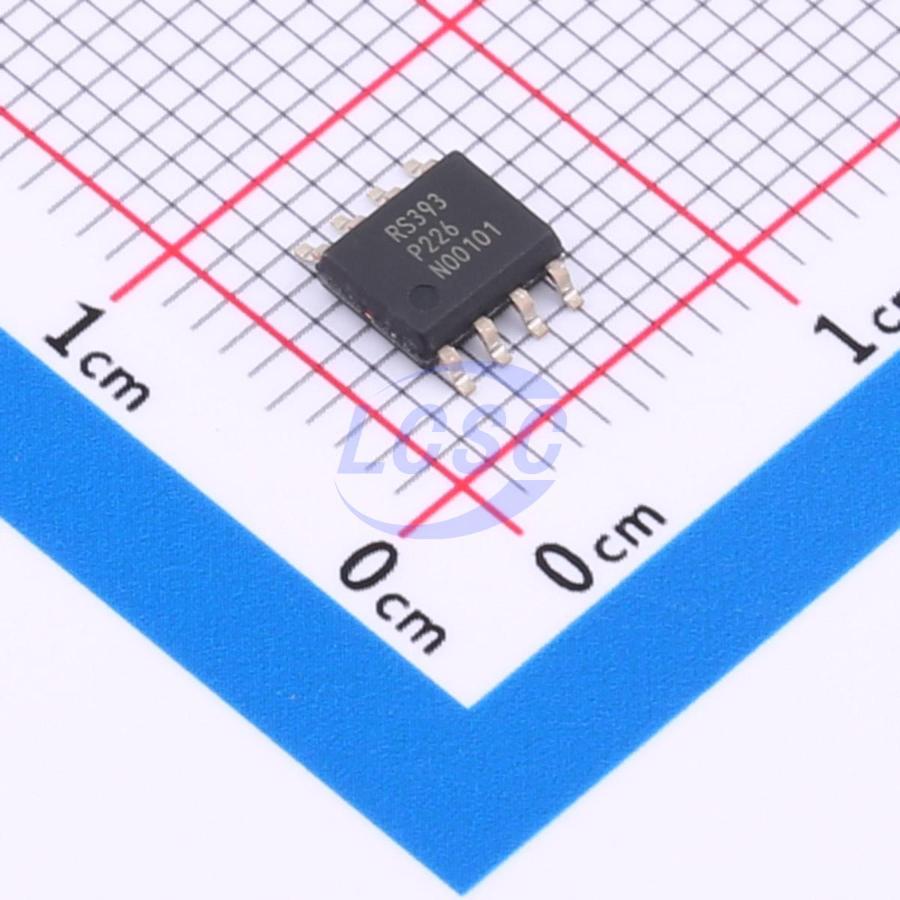

RS393XK-Q1
600uV 10pA 2 SOIC-8 Linear Comparators RoHS
General-Purpose Low-Voltage Open-Drain Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS393XK-Q1
- Store part #
- C7570385
- Package / case
- SOIC-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C7570385
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.83 | ₹194.15 |
| 50+ | ₹29.00 | ₹1,450.00 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹19.51 | ₹9,755.00 |
5 × ₹38.83
₹194.15
excl. GST
₹229.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS393XK-Q1
₹194.15 for 5 + GST
Specifications
- Output Type
- Open-drain
- Quiescent Current
- 50uA
- Propagation Delay Time
- 220ns
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Vos - Input Offset Voltage
- 600uV
- Ib - Input Bias Current
- 10pA
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Input Offset Current(Ios)
- 10pA
- Response Time (tr)
- 0.02us
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.446 g
Overview
The RS331-Q1 and RS393-Q1 is the single and dual comparator version, the RS339-Q1 is quad comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 1.8V to 5.5V, and have low power consuming 50μA (TYP) per channel. The RS331-Q1, RS393-Q1 and RS339-Q1 are the most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The RS331-Q1, RS393-Q1 and RS339-Q1 are available in Green SOT23-5, SOIC-8, MSOP-8, SOIC14 and TSSOP-14 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment Test and Measurement
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Supply Range: +1.8V to +5.5V
- Low Supply Current 50μA (TYP) per channel at Vs = 5V
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 150mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23-5
