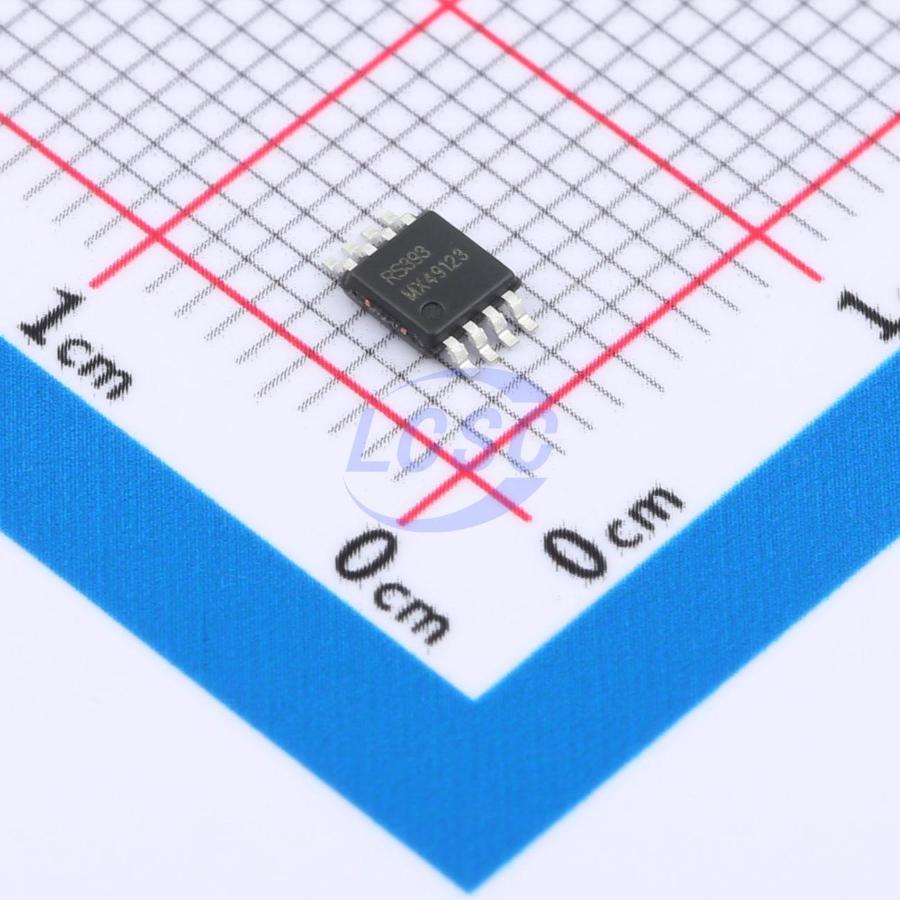

RS393XM
600uV 1pA 2 MSOP-8 Linear Comparators
General-Purpose Low-Voltage Open-Drain Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS393XM
- Store part #
- C5289904
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C5289904
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.93 | ₹129.65 |
| 50+ | ₹19.37 | ₹968.50 |
| 150+ | ₹16.55 | ₹2,482.50 |
| 500+ | ₹13.03 | ₹6,515.00 |
5 × ₹25.93
₹129.65
excl. GST
₹152.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS393XM
₹129.65 for 5 + GST
Specifications
- Dual Supply
- 0.9V~2.75V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 600uV
- Quiescent Current
- 50uA
- Ib - Input Bias Current
- 1pA
- Number of Channels
- 2
- Propagation Delay Time
- 205ns
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
The RS331 and RS393 is the single and dual comparator version, the RS339 is quad comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 1.8V to 5.5V, and have low power consuming 50μA (TYP) per channel. The RS331, RS393 and RS339 are the most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment Test and Measurement
Key features
- Supply Range: +1.8V to +5.5V
- Low Supply Current 50μA (TYP) per channel at Vs = 5V
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 150mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOT23-5
