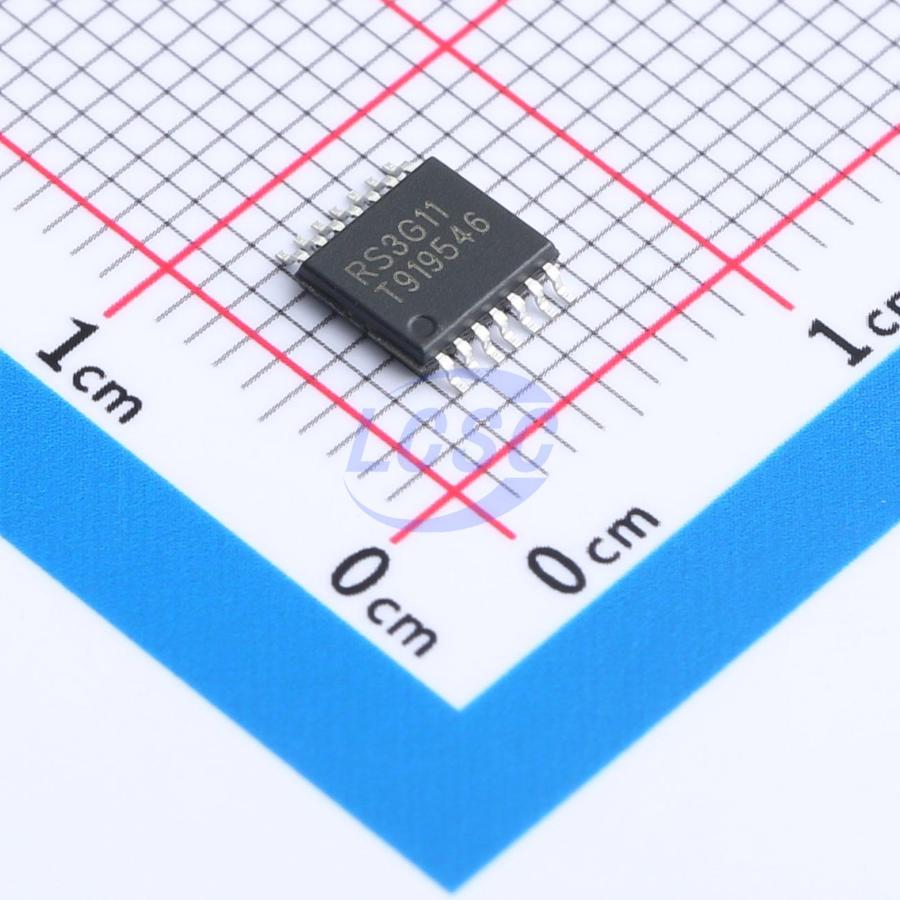

RUNICDatasheet (PDF)
RS3G11XQ
10uA 1.65V~5.5V 3.5ns@5V,50pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
Triple 3-Input Positive-AND Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3G11XQ
- Store part #
- C5372561
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,930 in stock
#C5372561
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.53 | ₹172.65 |
| 50+ | ₹24.37 | ₹1,218.50 |
| 150+ | ₹20.31 | ₹3,046.50 |
| 500+ | ₹18.28 | ₹9,140.00 |
5 × ₹34.53
₹172.65
excl. GST
₹203.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS3G11XQ
₹172.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 3;3
- Propagation Delay
- 3.5ns@5V,50pF
- Output Logic Level - Low
- 550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The RS3G11 device contains three AND gates and performs the Boolean function Y = A · B · C or Y = (A(overline) + B(overline) + C(overline))(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS3G11 is available in Green SOIC-14(SOP14) and TSSOP-14 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint Identification
- Network Attached Storage (NAS)
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to ±125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Micro SIZE PACKAGES: SOIC-14(SOP14), TSSOP14
