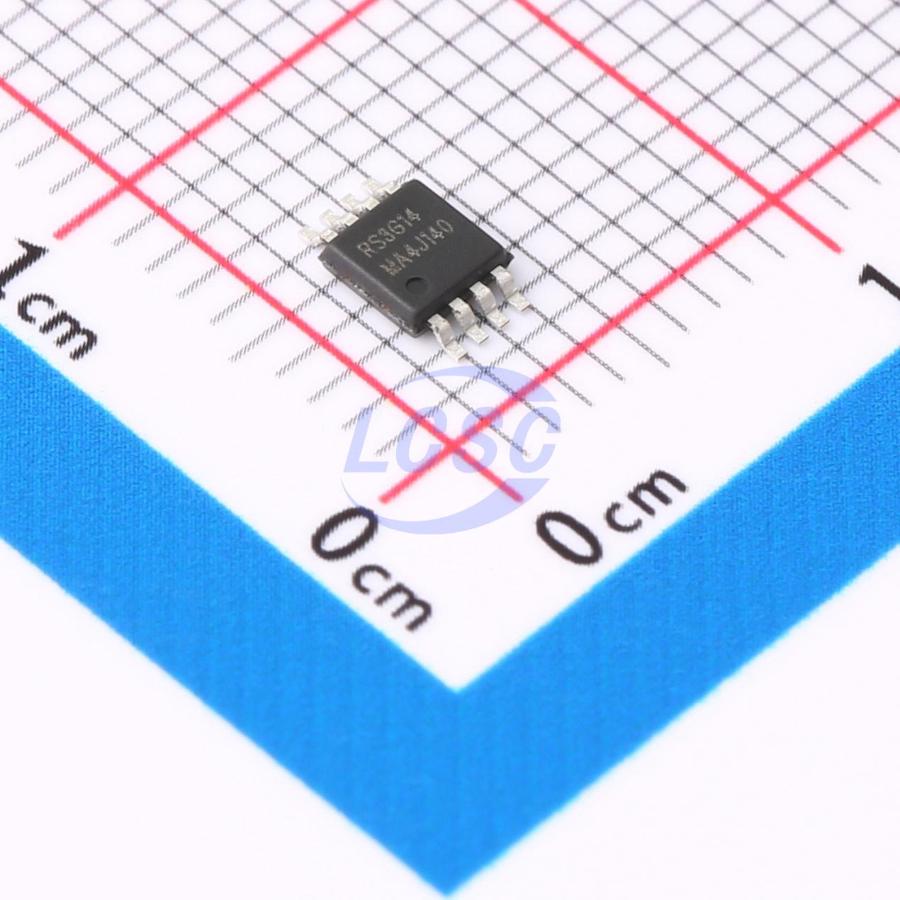

RS3G14XM

The RS3G14 Triple Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The RS3G14 device contains three inverter and performs the Boolean function Y = A(overline). The device functions as three independent inverters with Schmitttrigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS3G14 is available in Green MSOP-8 and DFN1.4×1.0 - 8L packages. It operates over an ambient temperature range of -40°C to +125°C.

Applications

• AC Receiver and Home Theaters
• Blu-ray Players and Home Theaters
• Desktops or Notebook PCs
• Digital Video Cameras (DVC)
• Mobile Phones
• Personal Navigation Device (GPS)
• Portable Media Player

Key features

• Operating Voltage Range: 1.65V to 5.5V
• Low Power Consumption: 1μA (Max)
• Operating Temperature Range: -40°C to ±125°C
• Input Accept Voltage to 5.5V
• High Output Drive: ±24mA at VCC = 3.0V
• Ioff Supports Partial-Power-Down Mode Operation
• Micro SIZE PACKAGES: MSOP-8、DFN1.4×1.0 - 8L
