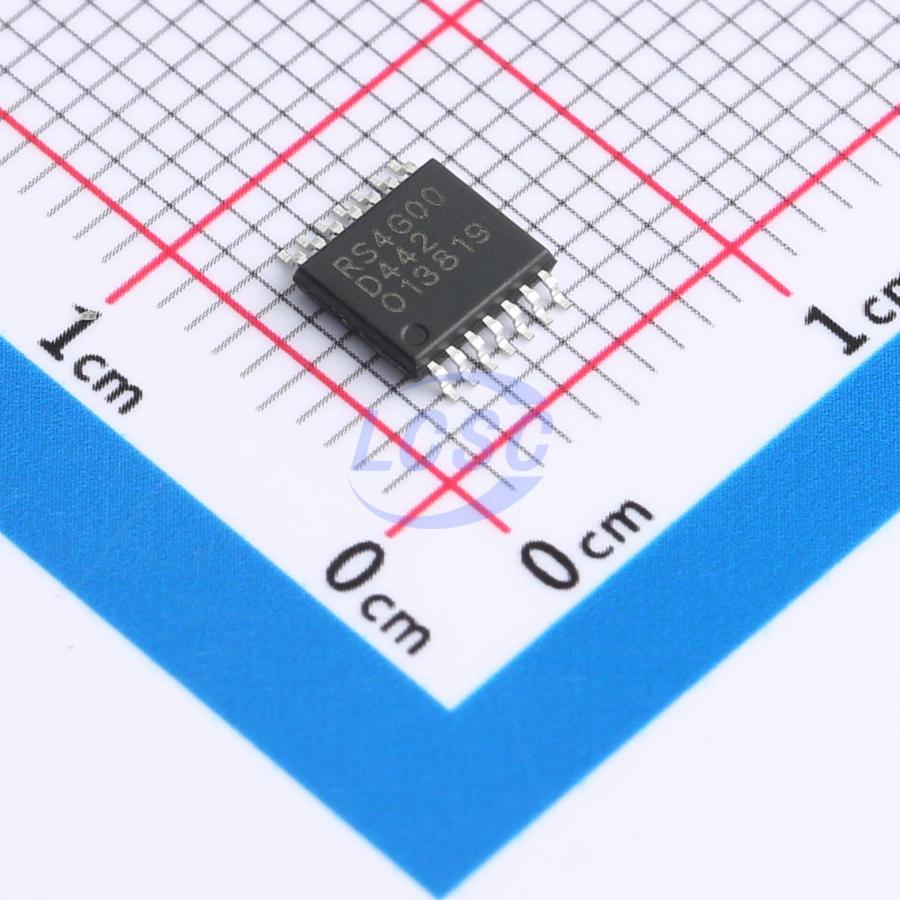

RS4G00XQ-Q1
10uA 1.65V~5.5V 10.3ns@5V,50pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
Quadruple 2-Input Positive-NAND Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS4G00XQ-Q1
- Store part #
- C42459602
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C42459602
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.03 | ₹140.15 |
| 50+ | ₹24.38 | ₹1,219.00 |
| 150+ | ₹22.82 | ₹3,423.00 |
| 500+ | ₹20.86 | ₹10,430.00 |
| 2,500+ | ₹19.99 | ₹49,975.00 |
| 4,000+ | ₹19.47 | ₹77,880.00 |
5 × ₹28.03
₹140.15
excl. GST
₹165.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS4G00XQ-Q1
₹140.15 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- RS4G00-Q1
- Input Logic Level - High
- 1.7V;2.3V
- Input Logic Level - Low
- 600mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 450mV;300mV;550mV
- Propagation Delay
- 10.3ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The RS4G00-Q1 quadruple 2-input positive-NAND gate is designed for 1.65V to 5.5V VCC operation. The RS4G00-Q1 device performs the Boolean function Y = A·B(overline) or Y = A(overline) + B(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS4G00-Q1 is available in Green SOP14 and TSSOP14 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Qualified for Automotive Applications
- Increase Digital Signal Drive Strength
- Automotive Infotainment
- Automotive HEV/EV Powertrain
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at Vcc = 3.0V
- PACKAGES: SOP14、TSSOP14
