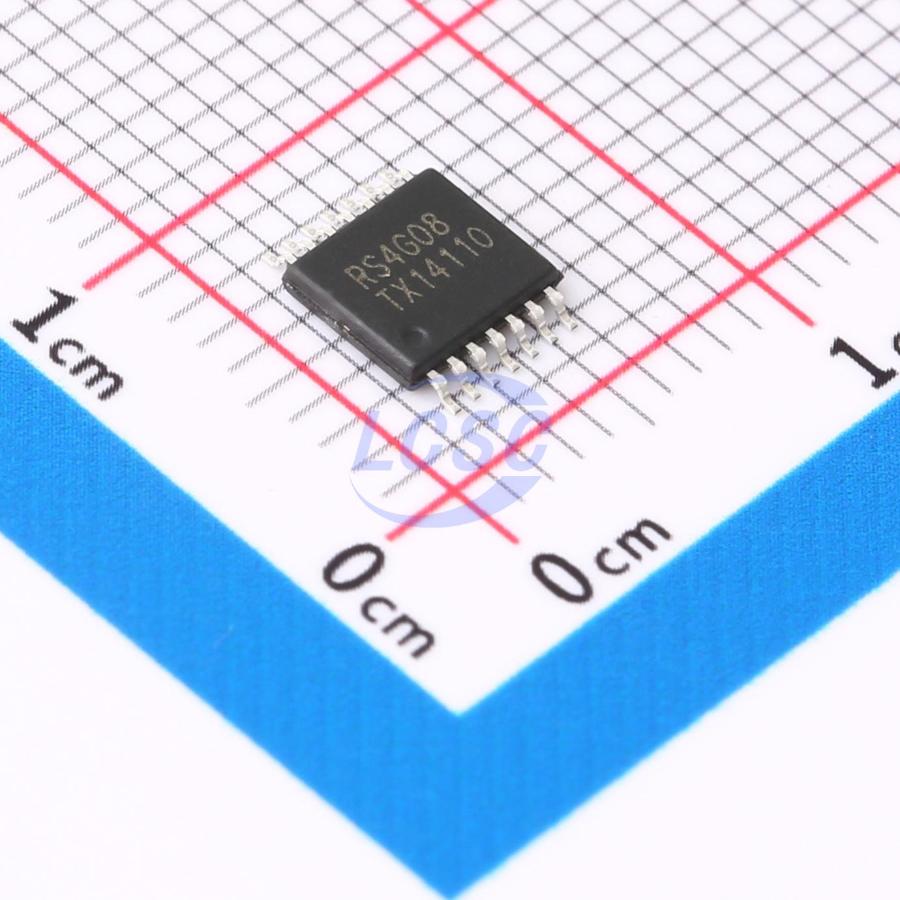

RUNIC

RS4G08XQ

1.65V~5.5V 5.4ns@3.3V,50pF 10uA TSSOP-14 Gates and Inverters

TSSOP-14RoHSActive

Quadruple 2-Input Positive-AND Gate

Manufacturer: RUNIC
Manufacturer part #: RS4G08XQ
Store part #: C5372568
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,355 in stock

#C5372568

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹40.33	₹201.65
50+	₹30.11	₹1,505.50
150+	₹25.73	₹3,859.50
500+	₹20.27	₹10,135.00

Quantity (min 5, multiples of 5)

5 × ₹40.33

₹201.65

excl. GST

₹237.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS4G08XQ

₹201.65 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;300mV;400mV;450mV;550mV
Propagation Delay: 5.4ns@3.3V,50pF
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.3V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 4;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.109 g

Overview

Operating Voltage Range:1.65V to 5.5V Low Power Consumption: 1μA (Max) Operating Temperature Range: -40°C to +125°C Inputs Accept Voltage to 5.5V High Output Drive: ±24mA at VCC = 3.0V The RS4G08 quadruple 2-input positive-AND gate is designed for 1.65V to 5.5V VCC operation. The RS4G08 device performs the Boolean function Y = A·B or Y = A(overline)+B(overline)(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
