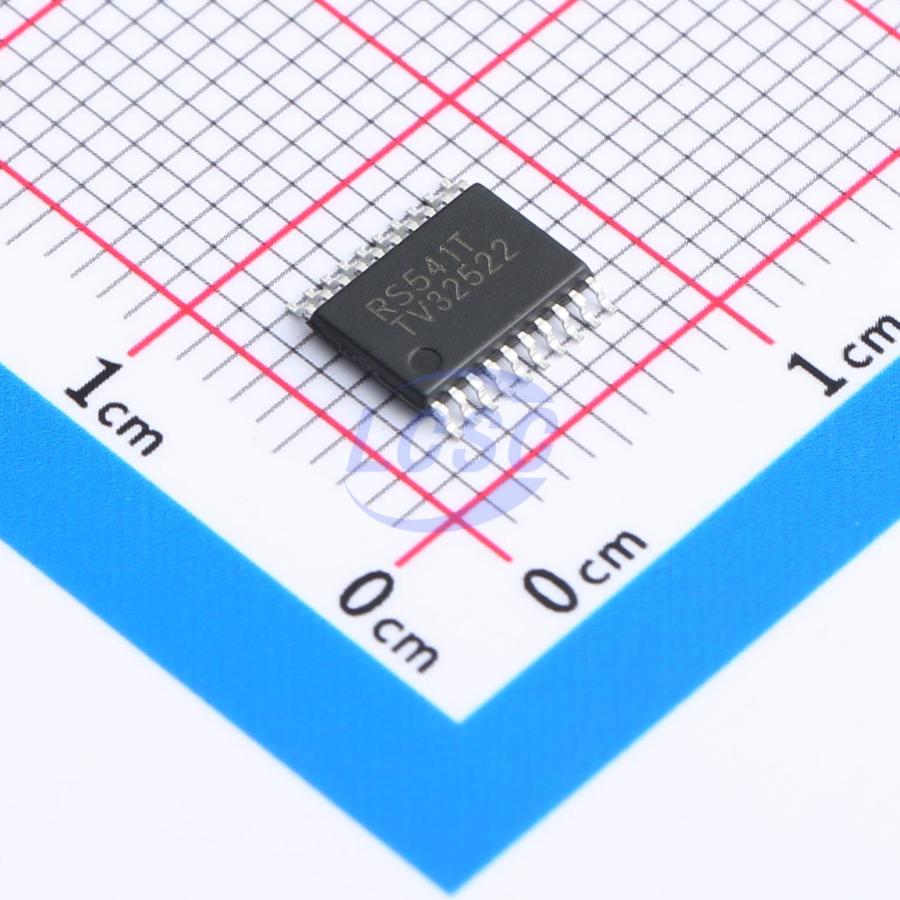

RS541TXTSS20

RS541T is an 8-bit non-inverting buffer/line driver with 3-state outputs. The device features two output enable pins (OE1 and OE2). When OE is HIGH, the associated outputs are placed in a high-impedance off state. The inputs include clamp diodes that allow the use of current-limiting resistors to interface inputs to voltages higher than VCC. To ensure the high-impedance state is maintained during power-up or power-down, OE (with overline) should be connected to VCC through a pull-up resistor, with the minimum resistance value determined by the current-sinking capability of the driver.

Applications

• Servers
• Smart grids
• Network switches
• Infotainment systems
• Surveillance cameras

Key features

• Supply voltage range: 4.5V to 5.5V
• 3-state outputs for bus line driving
• Low power consumption: max Icc of 40μA
• TTL input compatible
• ±24mA output drive capability at 5V
• Maximum input current as low as 2μA
• Extended operating temperature range: -40℃ to 125℃
• Compact packages: TSSOP20, SOP20
