RUNICDatasheet (PDF)
RS6G04XP
1.65V~5.5V 3.3ns@5V,50pF 1uA 6 SOIC-14 Gates and Inverters
SOIC-14RoHSActive

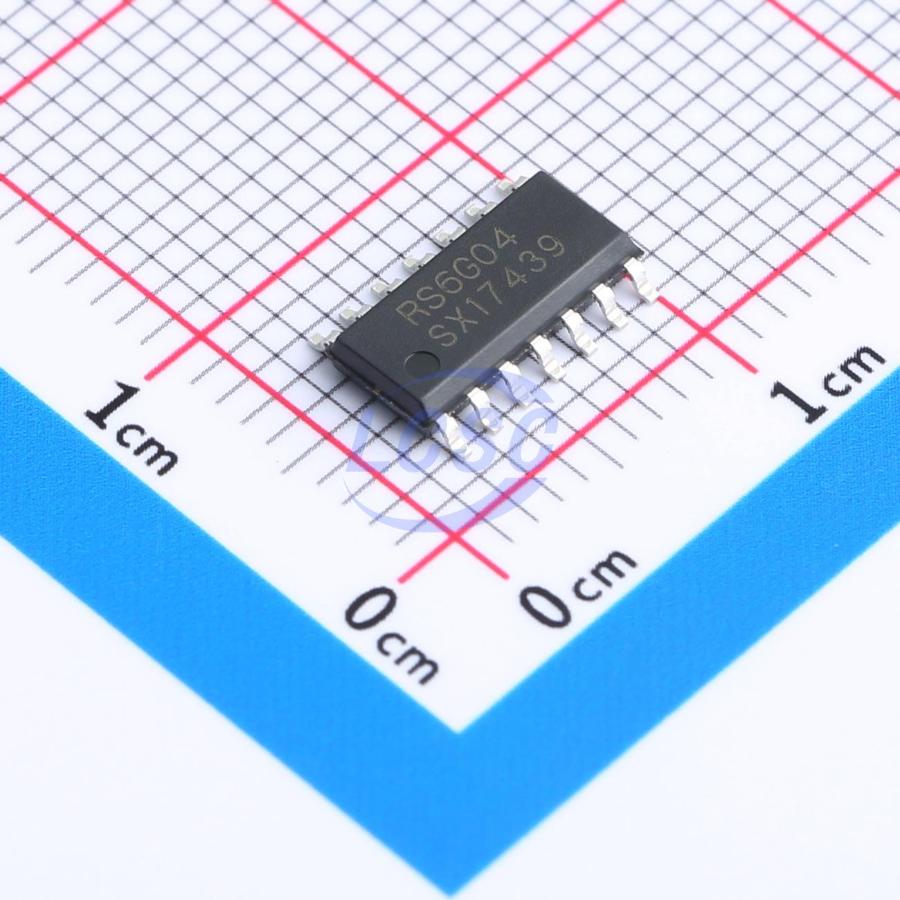

RS6G04 6-channel Inverter Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS6G04XP
- Store part #
- C5372596
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,650 in stock
#C5372596
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.02 | ₹185.10 |
| 50+ | ₹28.47 | ₹1,423.50 |
| 150+ | ₹24.81 | ₹3,721.50 |
| 500+ | ₹20.23 | ₹10,115.00 |
| 2,500+ | ₹18.19 | ₹45,475.00 |
| 4,000+ | ₹16.97 | ₹67,880.00 |
5 × ₹37.02
₹185.10
excl. GST
₹218.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS6G04XP
₹185.10 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 3.3ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The RS6G04 6-channel inverter gate is designed for 1.65V to 5.5V VCC operation. The RS6G04 device performs the Boolean function Y = A (overline). The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The RS6G04 is available in Green SOIC-14(SOP14) and TSSOP-14 packages. It operates over an ambient temperature range of -40℃ to +125℃.
Applications
- AC Receiver
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40℃ to ±125℃
- Input Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOIC-14(SOP14), TSSOP-14
