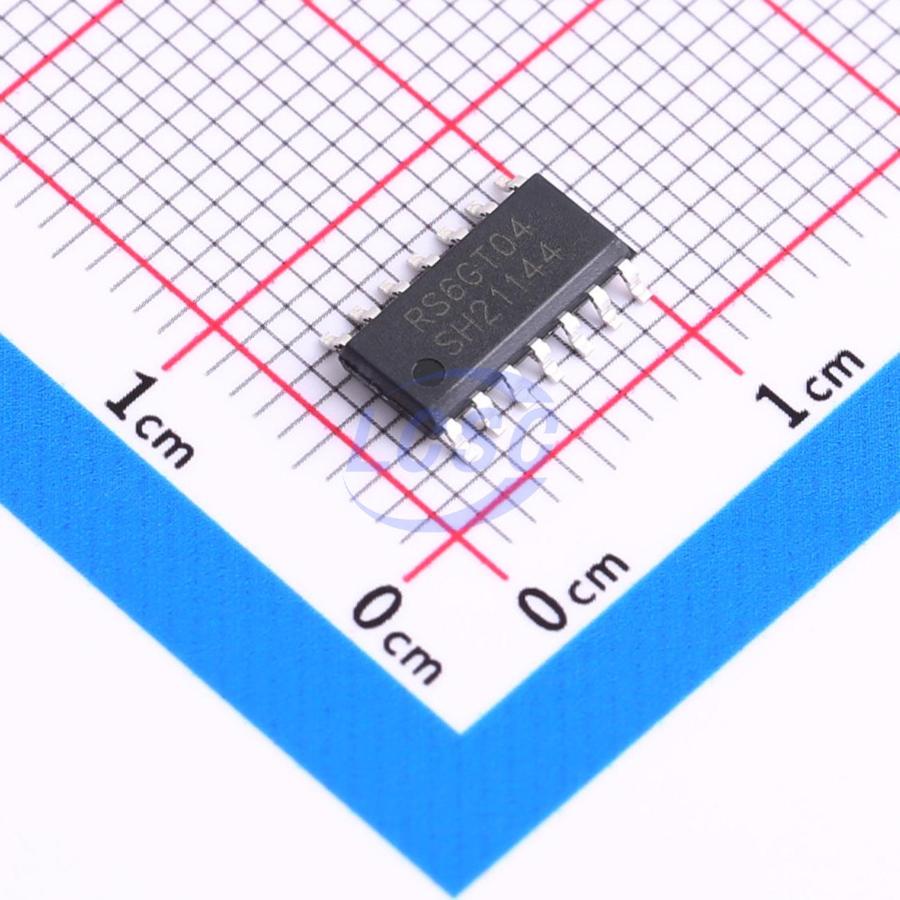

RS6GT04XP
2V~5.5V 2.8ns@5V,50pF 1uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
Six-channel Inverters
- Manufacturer
- RUNIC
- Manufacturer part #
- RS6GT04XP
- Store part #
- C42459644
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,670 in stock
#C42459644
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹19.45 | ₹972.50 |
| 150+ | ₹18.11 | ₹2,716.50 |
| 500+ | ₹16.44 | ₹8,220.00 |
| 2,500+ | ₹15.70 | ₹39,250.00 |
| 4,000+ | ₹15.27 | ₹61,080.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS6GT04XP
₹112.80 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 2.8ns@5V,50pF
- Output Logic Level - Low
- 550mV;500mV;450mV
- Features
- Power shutdown protection
- Input Logic Level - High
- 1V;1.5V;2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 300mV;550mV;800mV
- Output Logic Level - High
- 1.6V;2.5V;4.2V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.283 g
Overview
The RS6GT04 six-channel inverters is designed for 2.0V to 5.5V VCC operation. The RS6GT04 device contains six inverter and performs the Boolean function Y = A(overline). This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS6GT04 is available in Green SOP14 and TSSOP14 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AC Receiver
- Home Theaters
- Blu-ray Players
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 2.0V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- TTL Input are Compatible Input Accept Voltage to 5.5V
- Output Drive: ±32mA at Vcc = 5.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOP14, TSSOP14
