RUNICDatasheet (PDF)

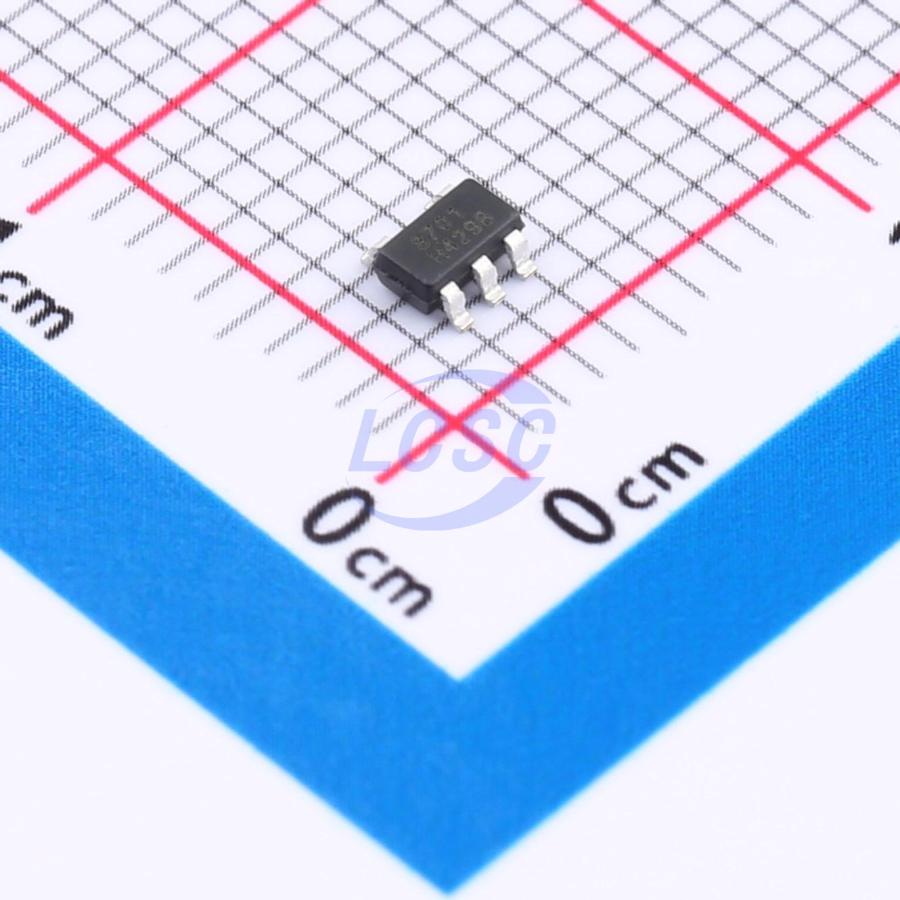

RS8701XF
150mA 100uV 40V/us 100dB 50pA 7mA 50MHz Rail-to-Rail Input, Rail-to-Rail Output SOT23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT23-5ROHS CompliantActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8701XF
- Store part #
- C7502538
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,204 in stock
#C7502538
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.54 | ₹70.54 |
| 10+ | ₹56.44 | ₹564.40 |
| 30+ | ₹49.49 | ₹1,484.70 |
| 100+ | ₹42.55 | ₹4,255.00 |
| 500+ | ₹38.21 | ₹19,105.00 |
| 1,000+ | ₹36.25 | ₹36,250.00 |
1 × ₹70.54
₹70.54
excl. GST
₹83.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8701XF
₹70.54 for 1 + GST
Specifications
- Output Current
- 150mA
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 40V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 1.6uV/℃
- Quiescent Current
- 7mA
- Gain Bandwidth Product
- 50MHz
- Input Voltage Noise Density
- 4nV/√Hz@100kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The RS870X series zero-crossover distortion, rail-to-rail, high-performance CMOS op amps are optimized for ultralow-voltage, single-supply applications. Rail-to-rail input and output, low noise (4.4uVpp), and high-speed operation (50MHz gain bandwidth) make them ideal for driving sampling ADCs. Applications include audio, signal conditioning, and sensor amplification. This op amp series is also well-suited for mobile phone power amplifier control loops. Special features include excellent common-mode rejection ratio, no input stage crossover distortion, high input impedance, and rail-to-rail input and output swing. The input common-mode range spans both the negative and positive supply rails. These devices are ideal for sensor interfaces, active filters, and portable applications. This op amp series is specified over the full temperature range of -40°C to +125°C and operates from single or dual supplies of 2.2V to 5.5V.
Applications
- Signal Conditioning
- Data Acquisition
- Process Control
- Active Filters
- Test Equipment
- Audio
- Wideband Amplifiers
Key features
- Gain bandwidth: 50MHz
- Zero crossover distortion topology
- CMRR: 100 dB (typical)
- Rail-to-rail input and output
- Low noise: 4.4uVpp in 0.1Hz~10Hz band
- Slew rate: 40 V/μs
- Fast settling time: 270ns to 0.01% accuracy
- Low offset voltage: 100uV (typical)
- Low input bias current: 50pA (typical)
- Supply range: +2.2V to +5.5V
- Specified up to +125°C
- Compact packages: SOT23-5, SOP8, MSOP8, SOP14
