RUNIC

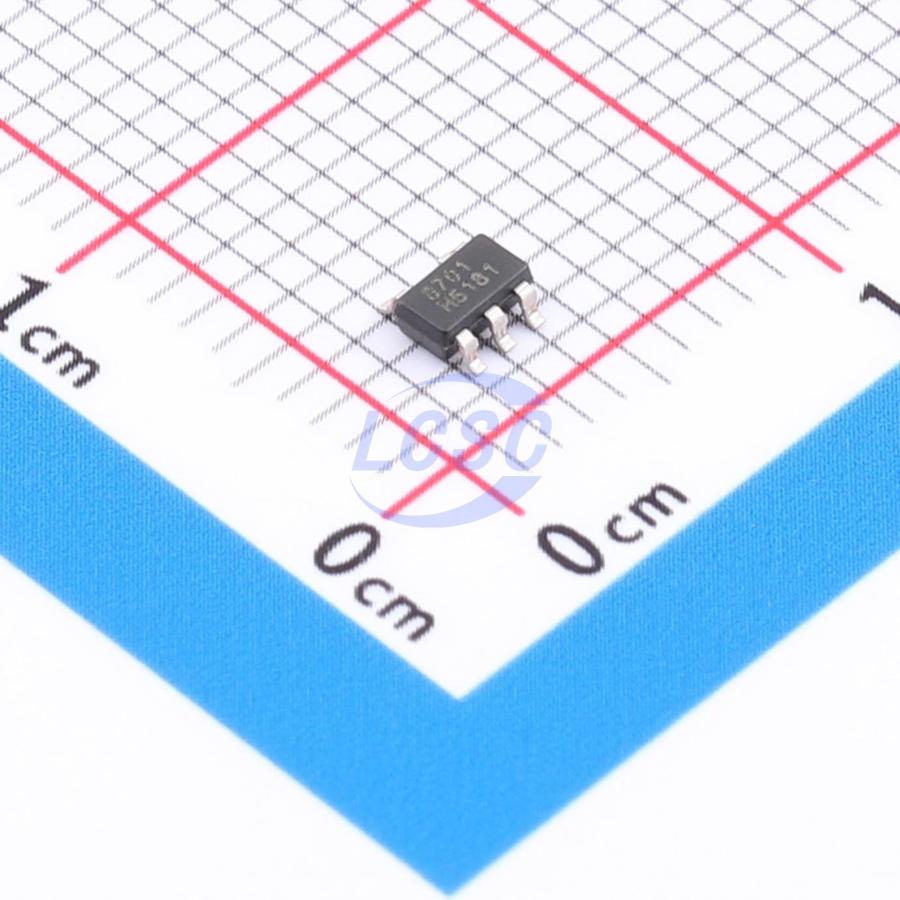

RS8701XF-Q1

7.6mA 50MHz 10pA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Audio Amplifiers

SOT-23-5RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS8701XF-Q1
Store part #: C54300722
Package / case: SOT-23-5
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,891 in stock

#C54300722

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹73.07	₹73.07
10+	₹57.84	₹578.40
30+	₹51.32	₹1,539.60
100+	₹43.06	₹4,306.00
500+	₹39.36	₹19,680.00
1,000+	₹37.19	₹37,190.00

Quantity (min 1)

1 × ₹73.07

₹73.07

excl. GST

₹86.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS8701XF-Q1

₹73.07 for 1 + GST

Specifications

Common Mode Rejection Ratio (CMRR): 96dB
Quiescent Current: 7.6mA
Gain Bandwidth Product: 50MHz
Ib - Input Bias Current: 10pA
Operating Temperature: -40℃~+125℃
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Input Offset Current(Ios): 10pA
Single Supply: 2.2V~5.5V
Slew Rate: 40V/us
Vos - Input Offset Voltage: 35uV
Noise density(eN): 4nV/√Hz@100kHz
Output Current: 180mA
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.066 g

Overview

The RS870X-Q1 zero-crossover distortion series, rail-to-rail, high-performance CMOS op amps are optimized for ultra-low voltage, single-supply applications. Rail-to-rail input and output, low noise (4.4µVₚ₋ₚ), and high-speed operation (50MHz gain bandwidth) make these devices ideal for driving sampling ADCs. Applications include audio, signal conditioning, and sensor amplification. This op amp series is also well-suited for mobile phone power amplifier control loops. Special features include excellent CMRR, no input stage crossover distortion, high input impedance, and rail-to-rail input and output swing. The input common-mode range extends from the negative supply to the positive supply. These devices are ideal for sensor interfaces, active filters, and portable applications. This op amp series is specified over the full temperature range of -40°C to +125°C with single or dual supplies from 2.2V to 5.5V.
