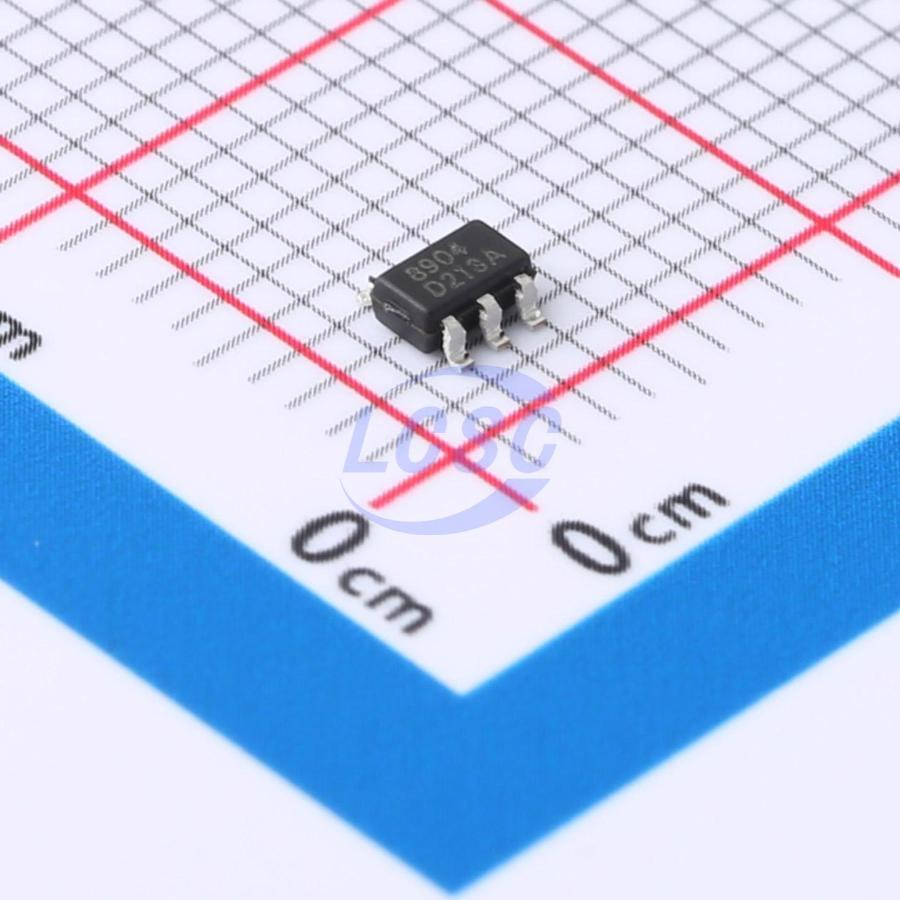

RS8904XF
Rail-to-Rail Input, Rail-to-Rail Output 3mV 1uA 1 SOT23-5 Linear Comparators
High Speed, RRIO, Push-Pull Output Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8904XF
- Store part #
- C5372655
- Package / case
- SOT23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,041 in stock
#C5372655
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.08 | ₹71.08 |
| 10+ | ₹60.92 | ₹609.20 |
| 30+ | ₹42.65 | ₹1,279.50 |
| 100+ | ₹36.55 | ₹3,655.00 |
1 × ₹71.08
₹71.08
excl. GST
₹83.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8904XF
₹71.08 for 1 + GST
Specifications
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 120uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 40ns
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.35V~2.75V
- Input Hysteresis Voltage (Vhys)
- 1mV
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Vos - Input Offset Voltage
- 3mV
- Ib - Input Bias Current
- 1uA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
High Speed, 40ns Propagation Delay Low Supply Current: 120μA (TYP) at Vcc = 5V Rail-to-Rail Input and Output Push-Pull Outputs Supply Range: +2.7V to +5.5V -40°C to +125°C Operating Temperature Micro Size Packages: SOT23-5、 SOT353(SC70-5) The RS8904 offers a wide supply voltage range, low quiescent current 120μA (Typical), high speed and rail-to-rail inputs. All these features come in industry - standard and extremely small packages, making this device an excellent choice for low-voltage and low - power applications for portable electronics and industrial systems. Featuring a push-pull output stage, the RS8904 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load. The devices are ideal for system monitoring, include tablets, portable medical, smart phones. The RS8904 is specified at the full temperature range of -40°C to +125°C under single power supplies of 2.7V to 5.5V.
Applications
- Overvoltage and Undervoltage Detection
- Multivibrators
- Overcurrent Detection
- Line Receivers
- System Monitoring
- Battery-Powered Systems
- Sampling Circuits
Key features
- High Speed, 40ns Propagation Delay
- Low Supply Current: 120μA (TYP) at Vcc = 5V
- Rail-to-Rail Input and Output
- Push-Pull Outputs
- Supply Range: +2.7V to +5.5V
- -40°C to +125°C Operating Temperature
- Micro Size Packages: SOT23-5、 SOT353(SC70-5)
