RUNIC

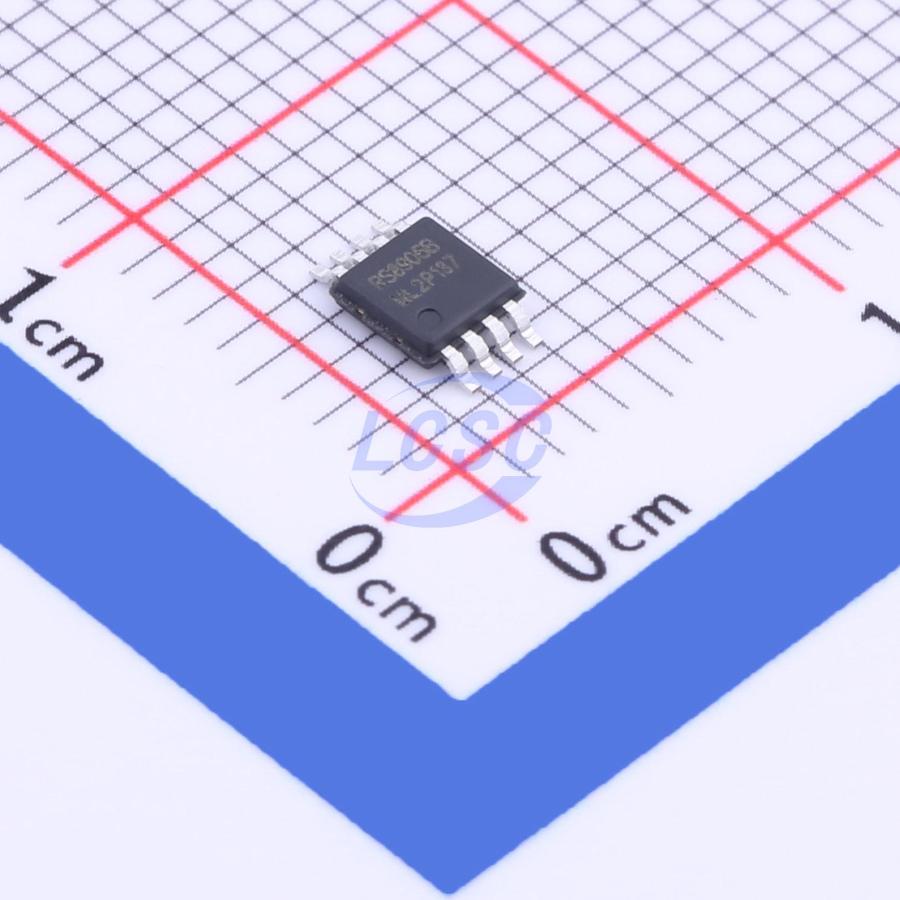

RS8905BXM

Rail-to-Rail Input, Rail-to-Rail Output 1mV 1pA 2 MSOP-8 Linear Comparators

MSOP-8RoHSActive

Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator

Manufacturer: RUNIC
Manufacturer part #: RS8905BXM
Store part #: C2762308
Package / case: MSOP-8
Category: Linear Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,165 in stock

#C2762308

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹52.22	₹261.10
50+	₹43.86	₹2,193.00
150+	₹39.69	₹5,953.50
500+	₹31.33	₹15,665.00

Quantity (min 5, multiples of 5)

5 × ₹52.22

₹261.10

excl. GST

₹308.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8905BXM

₹261.10 for 5 + GST

Specifications

Output Type: Push-pull
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Quiescent Current: 400nA
Output Mode: TTL;CMOS
Propagation Delay Time: 6us
Operating Temperature: -40℃~+125℃
Dual Supply: 0.7V~2.75V;-2.75V~-0.7V
Common Mode Rejection Ratio(CMRR): 70dB
Vos - Input Offset Voltage: 1mV
Ib - Input Bias Current: 1pA
Number of Channels: 2
Input Offset Voltage Drift(Vos TC): 2uV/℃
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.103 g

Overview

The RS8905 devices are double-channel, Nano-power comparators with a push-pull output stage. Operating from 1.4V to 5.5V and consuming only 400nA per channel. The push-pull output of the RS8905 supports rail-to-rail output swing and interfaces with TTL/CMOS logic.
