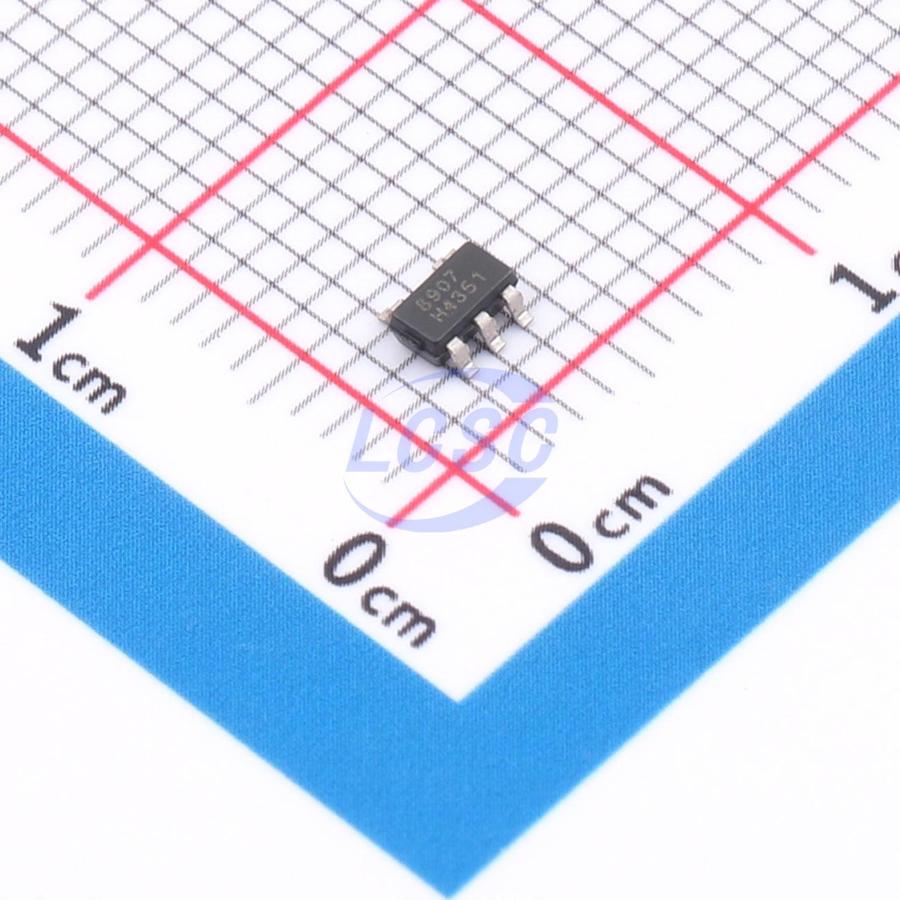

RS8907XF-Q1
Rail-to-Rail Input, Rail-to-Rail Output 3.5mV 1pA 1 SOT-23-5 Linear Comparators
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8907XF-Q1
- Store part #
- C42459688
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,285 in stock
#C42459688
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.92 | ₹224.60 |
| 50+ | ₹35.07 | ₹1,753.50 |
| 150+ | ₹30.85 | ₹4,627.50 |
| 500+ | ₹25.59 | ₹12,795.00 |
| 3,000+ | ₹23.25 | ₹69,750.00 |
| 6,000+ | ₹21.84 | ₹1,31,040.00 |
5 × ₹44.92
₹224.60
excl. GST
₹265.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8907XF-Q1
₹224.60 for 5 + GST
Specifications
- Dual Supply
- 0.7V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 3.5mV
- Ib - Input Bias Current
- 1pA
- Quiescent Current
- 650nA
- Propagation Delay Time
- 9us
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The device offers a wide supply voltage range, low quiescent current of 650nA (typical), and rail-to-rail input. All these features are available in industry-standard, extremely compact packages, making it an ideal choice for low-voltage, low-power applications in portable electronics and industrial systems. The device features a push-pull output stage, enabling operation at minimum power consumption when driving any capacitive or resistive load. It is ideal for system monitoring applications including tablets, portable medical devices, and smartphones. The RS8907-Q1 is specified for single-supply operation from 1.4V to 5.5V over the full temperature range of -40°C to +125°C.
Applications
- Overvoltage and undervoltage detection
- Astable multivibrator
- Overcurrent detection
- System monitoring
- Battery-powered systems
Key features
- Automotive-qualified
- AEC-Q100 Grade 1 certified
- Low supply current: 650nA (typical) at Vs = 5V
- Low input offset voltage: VOS (max) = ±3.5mV
- Rail-to-rail input and output
- Supply range: +1.4V to +5.5V
- Specified operating temperature up to +125°C
- Miniature package: SOT23-5
