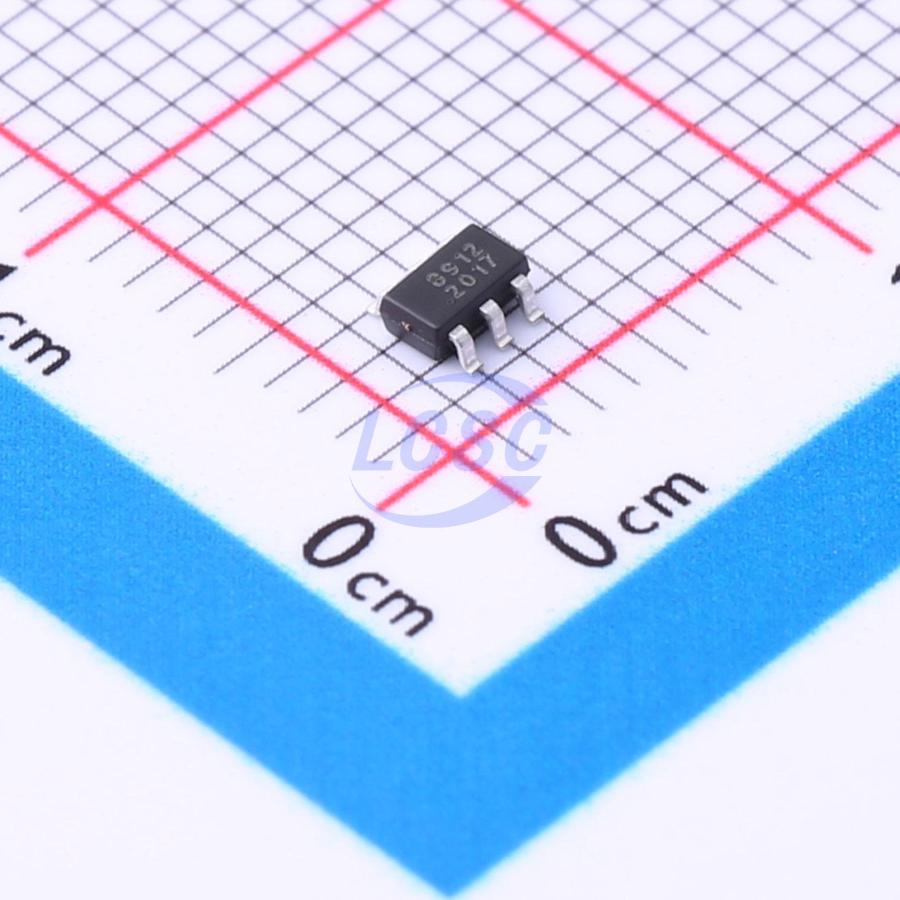

RS8912XH
Rail-to-rail input 5mV 10pA 1 SOT-23-6 Linear Comparators
Nano-Power, RRIO, 2.3V, Push-Pull Output Comparator with Voltage Reference
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8912XH
- Store part #
- C2887732
- Package / case
- SOT-23-6
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C2887732
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.58 | ₹252.90 |
| 50+ | ₹37.88 | ₹1,894.00 |
| 150+ | ₹32.37 | ₹4,855.50 |
| 500+ | ₹25.40 | ₹12,700.00 |
5 × ₹50.58
₹252.90
excl. GST
₹298.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8912XH
₹252.90 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 3.5uA
- Output Mode
- CMOS
- Propagation Delay Time
- 135us
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in reference source
- Dual Supply
- 1.15V~2.75V;-2.75V~-1.15V
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 10pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Response Time (tr)
- 12us
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The RS8912 is a push-pull output comparator. It features an uncommitted on-chip voltage reference and have low quiescent current, input common-mode range 200mV beyond the supply rails, and single-supply operation from 2.3V to 5.5V. The integrated 1.2V series voltage reference offers low 42uV/°C drift, is stable with up to 10nF capacitive load, and can provide up to 350uA (TYP) of output current. Featuring a push-pull output stage, the RS8912 allows for operation with absolute minimum power consumption when driving any capacitive or resistive load.
Applications
- RC TIMERS
- MULTIVIBRATORS
- WINDOW DETECTORS
- SYSTEM MONITORING
- SENSOR SYSTEMS: Smoke Detectors, Light Sensors, Alarms
Key features
- Low supply current: 0.5uA(TYP) at Vs = 2.3V
- Supply Range: +2.3V to +5.5V
- Integrated Voltage Reference: 1.2V
- Low input offset voltage: Vos(max) = 3.5mV at Vs = 5V
- Rail-to-Rail Input
- Push-Pull Output
- Operating Temperature Range: -40°C to +85°C
- Micro SIZE PACKAGES: SOT23-6、DFN1.6x1.6-6
