YLPTECDatasheet (PDF)

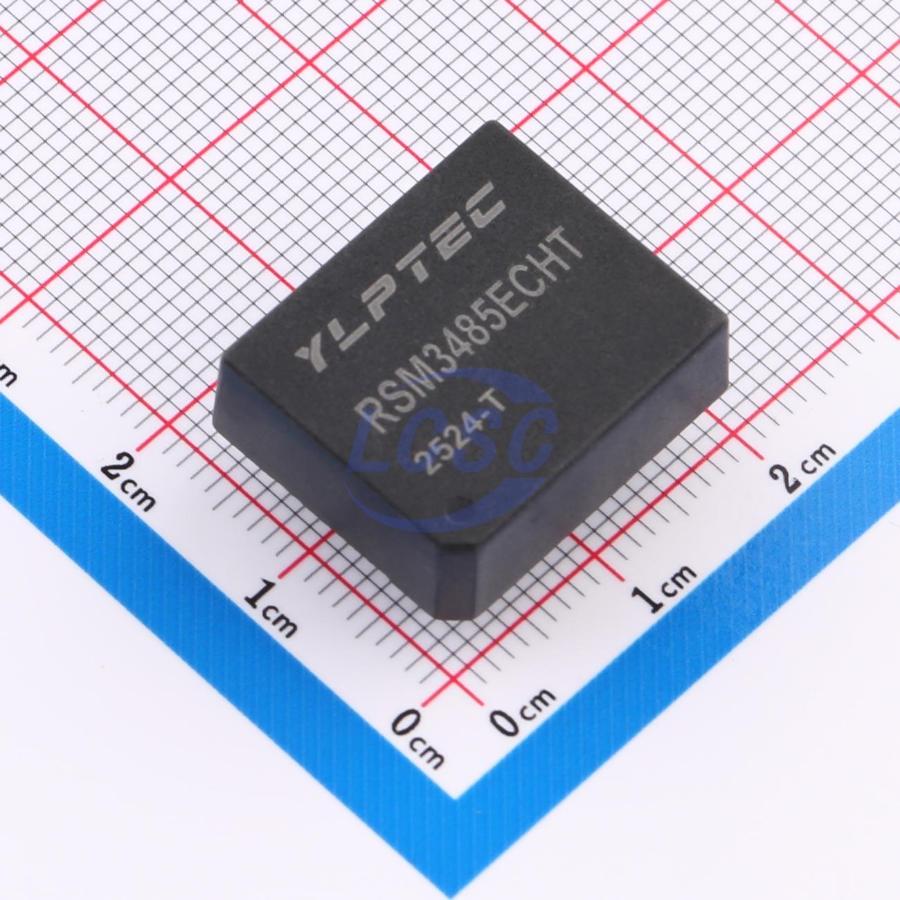

RSM3485ECHT
3.15V~3.45V 500Kbps 256 No DIP-8 Drivers, Receivers, Transceivers
DIP-8RoHSActive
- Manufacturer
- YLPTEC
- Manufacturer part #
- RSM3485ECHT
- Store part #
- C2992406
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,882 in stock
#C2992406
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹759.51 | ₹759.51 |
| 10+ | ₹645.76 | ₹6,457.60 |
| 30+ | ₹577.90 | ₹17,337.00 |
| 90+ | ₹509.38 | ₹45,844.20 |
| 510+ | ₹477.85 | ₹2,43,703.50 |
| 900+ | ₹463.50 | ₹4,17,150.00 |
1 × ₹759.51
₹759.51
excl. GST
₹896.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
RSM3485ECHT
₹759.51 for 1 + GST
Specifications
- Voltage - Supply
- 3.15V~3.45V
- Data Rate
- 500Kbps
- Number of Nodes
- 256
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- Yes
- Automatic flow control
- No
- Features
- Power isolation function;Signal isolation function
- Quiescent Supply Current
- 36mA
- Isolation Voltage(Vrms)
- 2500V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.1 g
Overview
The RSM3485ECHT/RSM485ECHT converts logic-level signals to RS-485 differential signals with signal isolation. Using IC integration technology, it combines isolated power supply, signal isolation, RS-485 communication, and bus protection in a single package. With a built-in regulated isolated power supply supporting 2500VDC electrical isolation, it can be easily embedded into user equipment, enabling seamless RS-485 network connectivity.
Applications
- Industrial Communication
- Coal Mining
- Power Monitoring
- Building Automation
Key features
- Single input power supply
- No isolated output power pin
- Up to 256 nodes connectable
- Extremely low EMI
- Operating temperature range: -40℃ ~ +85℃
- Integrated power isolation, signal isolation, and bus ESD protection
