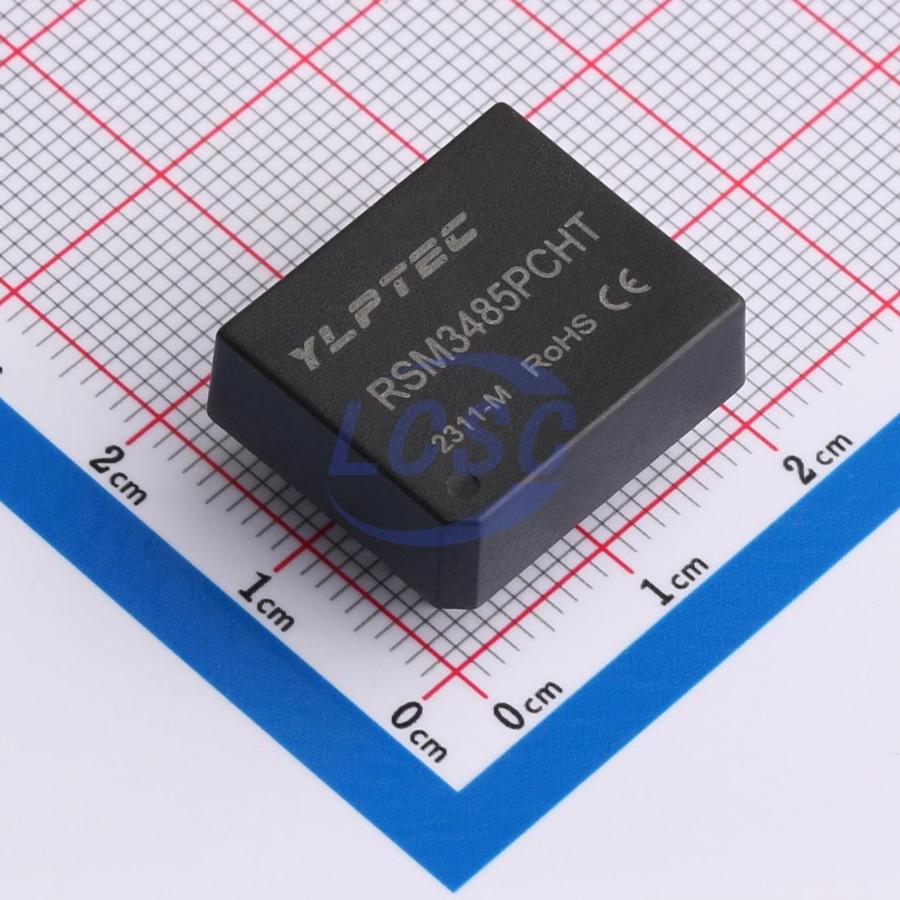

RSM3485PCHT
3.15V~3.45V 115.2Kbps 64 No DIP-9 Drivers, Receivers, Transceivers
DIP-9RoHSActive
- Manufacturer
- YLPTEC
- Manufacturer part #
- RSM3485PCHT
- Store part #
- C5451845
- Package / case
- DIP-9
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,472 in stock
#C5451845
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹599.86 | ₹599.86 |
| 10+ | ₹507.30 | ₹5,073.00 |
| 30+ | ₹462.56 | ₹13,876.80 |
| 90+ | ₹406.94 | ₹36,624.60 |
| 510+ | ₹381.30 | ₹1,94,463.00 |
| 900+ | ₹369.78 | ₹3,32,802.00 |
1 × ₹599.86
₹599.86
excl. GST
₹707.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
RSM3485PCHT
₹599.86 for 1 + GST
Specifications
- Voltage - Supply
- 3.15V~3.45V
- Data Rate
- 115.2Kbps
- Number of Nodes
- 64
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- Yes
- Automatic flow control
- No
- Features
- Power isolation function;Signal isolation function
- Quiescent Supply Current
- 33mA
- Isolation Voltage(Vrms)
- 2500V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.434 g
Overview
The primary function is to convert logic levels to RS-485 differential levels for signal isolation. This is an RS-485 transceiver module that integrates IC technology to achieve power isolation, signal isolation, RS-485 communication, and bus protection in a single unit. The product features a built-in regulated isolated power supply, enabling 2500VDC electrical isolation. It can be easily embedded into user equipment, allowing devices to seamlessly connect to RS-485 protocol networks.
Applications
- Industrial Communication
- Coal Mining Industry
- Power Monitoring
- Building Automation
Key features
- Single input power supply
- No isolated output power pin
- Up to 64 nodes
- Ultra-low EMI
- Operating temperature range: -40°C~+85°C
- Integrated power isolation, signal isolation, and bus ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD311D485H#C5451831YLPTEC · DIP-9 | YLPTEC | DIP-9 | 62 | ₹700.11 · 62 in stock | View |
 | TD511D485H#C5451832YLPTEC · DIP-9 | YLPTEC | DIP-9 | 30 | ₹649.13 · 30 in stock | View |
 | RSM485PCHT#C5451846YLPTEC · DIP-9 | YLPTEC | DIP-9 | 30 | ₹780.97 · 30 in stock | View |
