YLPTECDatasheet (PDF)

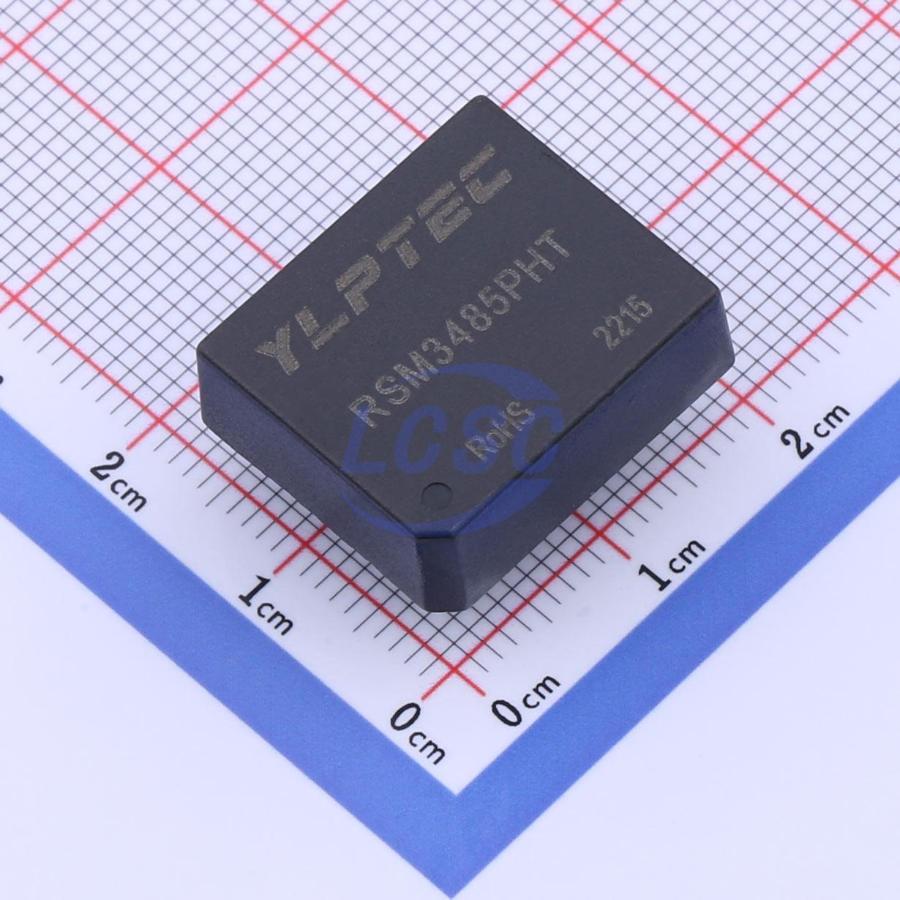

RSM3485PHT
3.15V~3.45V 500Kbps 128 Yes DIP-8 Drivers, Receivers, Transceivers
DIP-8RoHSActive
Automatic Transmit-Receive Isolated RS-485 Transceiver
- Manufacturer
- YLPTEC
- Manufacturer part #
- RSM3485PHT
- Store part #
- C2992403
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,167 in stock
#C2992403
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹635.62 | ₹635.62 |
| 10+ | ₹548.24 | ₹5,482.40 |
| 30+ | ₹496.36 | ₹14,890.80 |
| 90+ | ₹444.05 | ₹39,964.50 |
| 510+ | ₹419.70 | ₹2,14,047.00 |
| 900+ | ₹408.77 | ₹3,67,893.00 |
1 × ₹635.62
₹635.62
excl. GST
₹750.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
RSM3485PHT
₹635.62 for 1 + GST
Specifications
- Voltage - Supply
- 3.15V~3.45V
- Data Rate
- 500Kbps
- Number of Nodes
- 128
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- Yes
- Automatic flow control
- Yes
- Features
- Automatic transmit/receive function;Power isolation function;Signal isolation function
- Quiescent Supply Current
- 35mA
- Isolation Voltage(Vrms)
- 2500V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.1 g
Overview
The main function is to convert logic levels to RS-485 differential levels for signal isolation. It is an RS-485 transceiver module based on IC integration technology, combining power isolation, signal isolation, RS-485 communication, and bus protection in a single unit. The product features a built-in regulated isolated power supply, achieving 2500VDC electrical isolation. With automatic transmit/receive switching, the module eliminates the need for manual control via TX/RX control pins, reducing design complexity. The product can be easily embedded into user equipment, enabling seamless RS-485 network connectivity.
Applications
- Industrial Communication
- Coal Mining Industry
- Power Monitoring
- Building Automation
Key features
- Single input power supply
- Isolated output power pin
- Auto transceiver data function
- Up to 128 nodes
- Ultra-low EMI
- Operating temperature range: -40°C ~ +85°C
- Integrated power isolation, signal isolation, and bus ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD301D485H-A#C2992416YLPTEC · DIP-8 | YLPTEC | DIP-8 | 780 | ₹607.96 · 780 in stock | View |
 | TD321D485H-A#C5451849YLPTEC · DIP-8 | YLPTEC | DIP-8 | 739 | ₹634.07 · 739 in stock | View |
 | RSM485PHT#C2992404YLPTEC · DIP-8 | YLPTEC | DIP-8 | 39 | ₹700.75 · 39 in stock | View |
 | TD501D485H-A#C2992417YLPTEC · DIP-8 | YLPTEC | DIP-8 | 226 | ₹799.04 · 226 in stock | View |
 | TD521D485H-A#C5451850YLPTEC · DIP-8 | YLPTEC | DIP-8 | 120 | ₹620.74 · 120 in stock | View |
