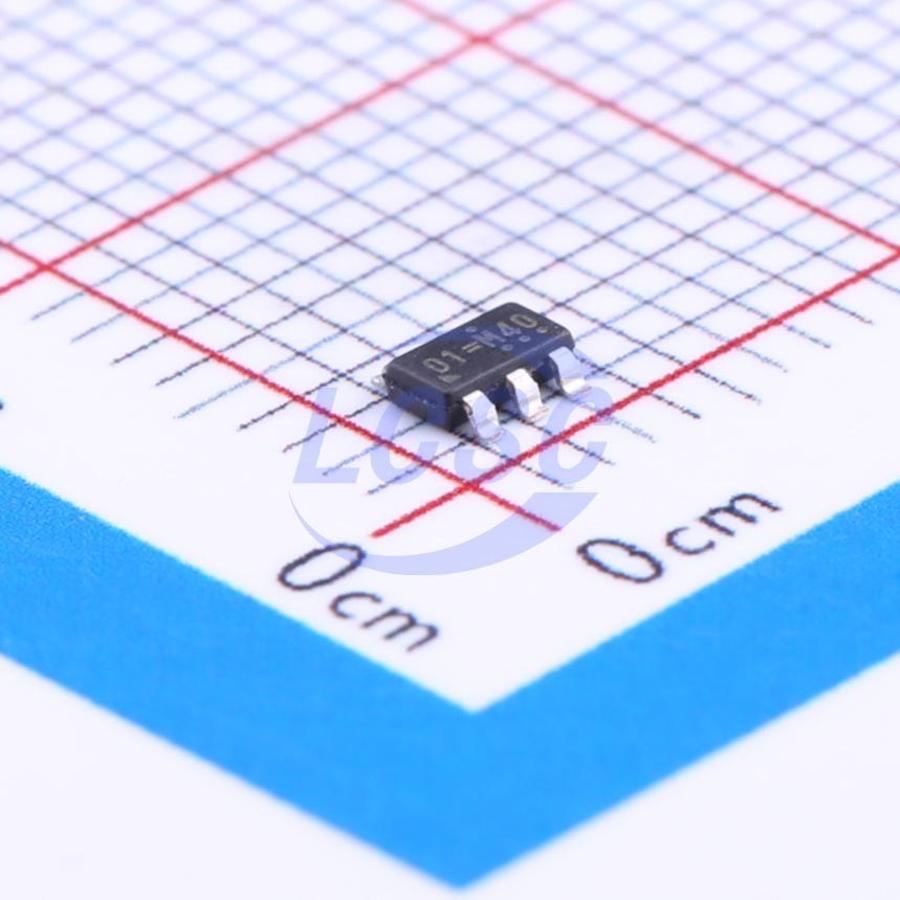

RT8471GJ5
1 DC-DC 1A 7V~36V TSOT-23-5 LED Drivers RoHS
Hysteretic, High Brightness LED Driver with Internal Switch
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8471GJ5
- Store part #
- C105529
- Package / case
- TSOT-23-5
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,818 in stock
#C105529
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.76 | ₹69.76 |
| 10+ | ₹55.20 | ₹552.00 |
| 30+ | ₹49.11 | ₹1,473.30 |
| 100+ | ₹41.29 | ₹4,129.00 |
| 500+ | ₹32.39 | ₹16,195.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹69.76
₹69.76
excl. GST
₹82.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT8471GJ5
₹69.76 for 1 + GST
Specifications
- Dimming
- Analog;PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1A
- Features
- Built-in soft-start;Over-Temperature Protection (OTP)
- Topology
- Buck
- Constant Current Accuracy
- 5%
- Voltage - Input(DC)
- 7V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
The RT8471 is a high efficiency, continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs from a voltage source higher than the LED voltage. It operates from an input voltage of 7V to 36V and employs hysteretic control with a high side current sense resistor to set the constant output current. The RT8471 includes an output switch and a high side output current sensing circuit, which uses an external resistor to set the nominal average output current. LED brightness control is achieved with PWM dimming from an analog or PWM input signal. The RT8471 is available in a small TSOT-23-5 package or a more thermal efficient SOP-8 (Exposed Pad) and MSOP8 (Exposed Pad) packages.
Applications
- Automotive LED Lighting
- High Power LED Lighting
- Indicator and Emergency Lighting
- Architectural Lighting
- Low Voltage Industrial Lighting
- Signage and Decorative LED Lighting
Key features
- 7V to 36V Input Voltage Range
- Hysteretic Control with High Side Current Sensing
- Internal N-MOSFET with 350mΩ Low RDS(ON)
- 1A Output Current (For TSOT-23-5 Only)
- 1.2A Output Current (For SOP-8 (Exposed Pad) and MSOP-8 (Exposed Pad) Only)
- Up to 97% Efficiency
- Typical ±5% LED Current Accuracy
- Analog or PWM Control Signal for LED Dimming
- 300Hz On-Board Ramp Generator
- Input Under Voltage Lockout
- Thermal Shutdown Protection
- RoHS Compliant and Halogen Free
