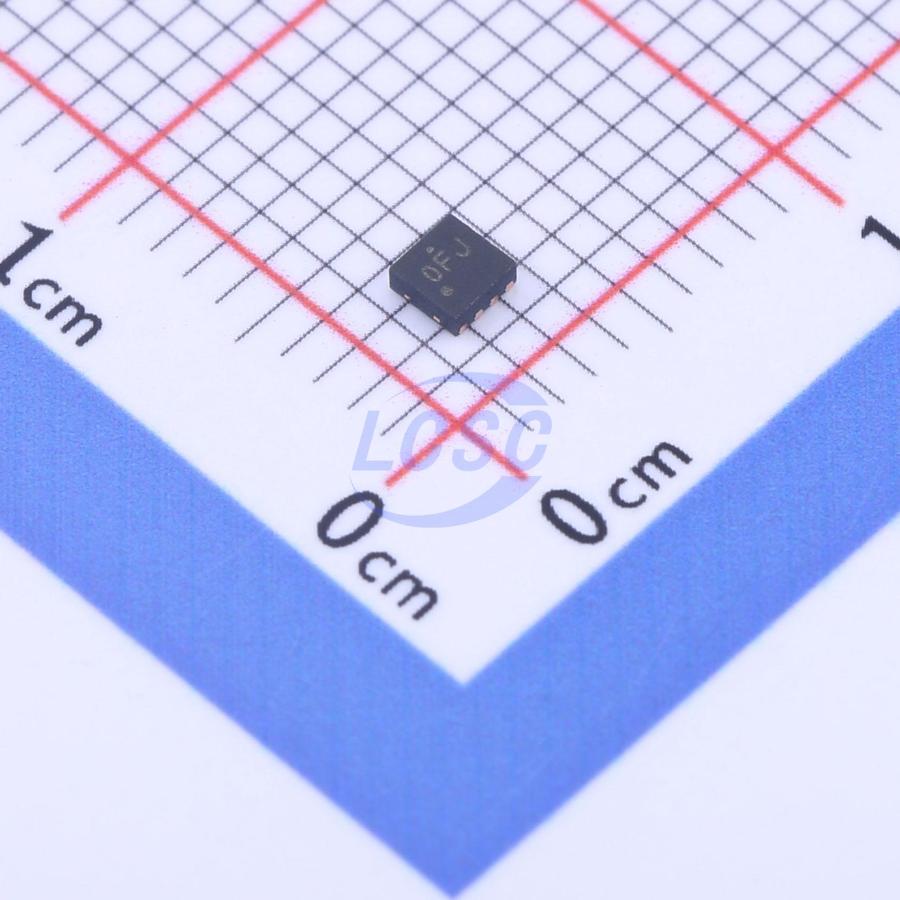

RT8511BGQW
500kHz PWM 1 DC-DC 2.7V~24V DFN-8-EP(2x2) LED Drivers RoHS
43V Asynchronous Boost WLED Driver
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT8511BGQW
- Store part #
- C250426
- Package / case
- DFN-8-EP(2x2)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,128 in stock
#C250426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.68 | ₹119.68 |
| 10+ | ₹96.43 | ₹964.30 |
| 30+ | ₹84.80 | ₹2,544.00 |
| 100+ | ₹73.40 | ₹7,340.00 |
| 500+ | ₹64.79 | ₹32,395.00 |
| 1,000+ | ₹61.35 | ₹61,350.00 |
1 × ₹119.68
₹119.68
excl. GST
₹141.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT8511BGQW
₹119.68 for 1 + GST
Specifications
- Frequency - Switching
- 500kHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The RT8511B is an LED driver IC that can support up to 10 WLED in series. It is composed of a current mode boost converter integrated with a 43V/2.2A power switch running at a fixed 500kHz frequency and covering a wide VIN range from 2.7V to 24V. The white LED current is set with an external resistor, and the feedback voltage is regulated to 200mV (typ.). During operation, the LED current can be controlled by the PWM input signal in which the duty cycle determines the feedback reference voltage. For brightness dimming, the RT8511B is able to maintain steady control of the LED current. Therefore, no audible noises are generated on the output capacitor. The RT8511B also has programmable over voltage pin to prevent the output from exceeding absolute maximum ratings during open LED conditions. The RT8511B is available in WDFN-8L 2x2 package.
Applications
- UMPC and Notebook Computer Backlight
- GPS, Portable DVD Backlight
Key features
- Wide Input Voltage Range : 2.7V to 24V
- High Output Voltage : up to 43V
- Direct PWM Dimming Control and Frequency from 100Hz to 8kHz
- Internal Soft-Start and Compensation
- 200mV Reference Voltage
- PWM Dimming with Internal Filter
- Programmable Over Voltage Protection
- Over Temperature Protection
- Current Limit Protection
- Thin 8-Lead WDFN Package
- RoHS Compliant and Halogen Free
