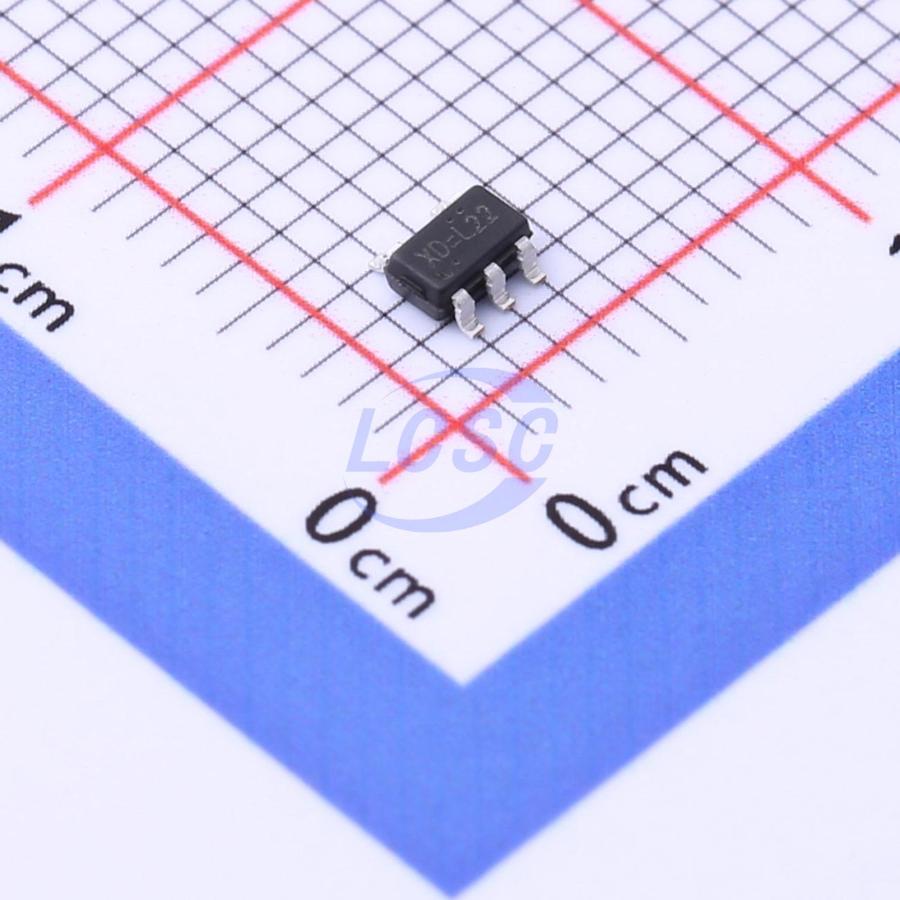

RICHTEK

RT9013-28GB

2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

500mA, Low Dropout, Low Noise Ultra-Fast Without Bypass Capacitor CMOS LDO Regulator

Manufacturer: RICHTEK
Manufacturer part #: RT9013-28GB
Store part #: C2972227
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,305 in stock

#C2972227

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹22.11	₹110.55
50+	₹17.56	₹878.00
150+	₹15.60	₹2,340.00
500+	₹13.16	₹6,580.00
3,000+	₹10.52	₹31,560.00
6,000+	₹9.87	₹59,220.00

Quantity (min 5, multiples of 5)

5 × ₹22.11

₹110.55

excl. GST

₹130.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT9013-28GB

₹110.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 500mA
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The RT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The RT9013 quiescent current as low as 25μA, further prolonging the battery life. The RT9013 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in handheld wireless devices. The RT9013 consumes typical 0.7μA in shutdown mode and has fast turn-on time less than 40μs. The other features include ultra-low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the SC-82, SOT-23-5, SC-70-5 and WDFN-6L 2x2 package.

Applications

CDMA/GSM Cellular Handsets
Portable Information Appliances
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
Mini PCI & PCI-Express Cards
PCMCIA & New Cards

Key features

Wide Operating Voltage Ranges: 2.2V to 5.5V
Low Dropout: 25001101 at 500mA
Ultra-Low-Noise for RF Application
Ultra-Fast Response in Line/Load Transient
Current Limiting Protection
Thermal Shutdown Protection
High Power Supply Rejection Ratio
Output Only 1μF Capacitor Required for Stability
TTL-Logic-Controlled Shutdown Input
RoHS Compliant and 100% Lead (Pb)-Free

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPL740F28-5TR#C29023583PEAK · SOT-23-5	3PEAK	SOT-23-5	2,585	₹15.61 · 2,585 in stock	View
LR6205B28M#C22381729LRC · SOT-23-5	LRC	SOT-23-5	2,070	₹6.85 · 2,070 in stock	View
CJ6205B28M#C2829391JSCJ · SOT-23-5L	JSCJ	SOT-23-5L	755	₹10.74 · 755 in stock	View
LN1152B282MR-G#C3008001NATLINEAR · SOT-23-5L	NATLINEAR	SOT-23-5L	2,930	₹6.76 · 2,930 in stock	View
SK6014AS5-28#C2682750Suntek · SOT-23-5L	Suntek	SOT-23-5L	2,900	₹11.63 · 2,900 in stock	View
