RICHTEKDatasheet (PDF)

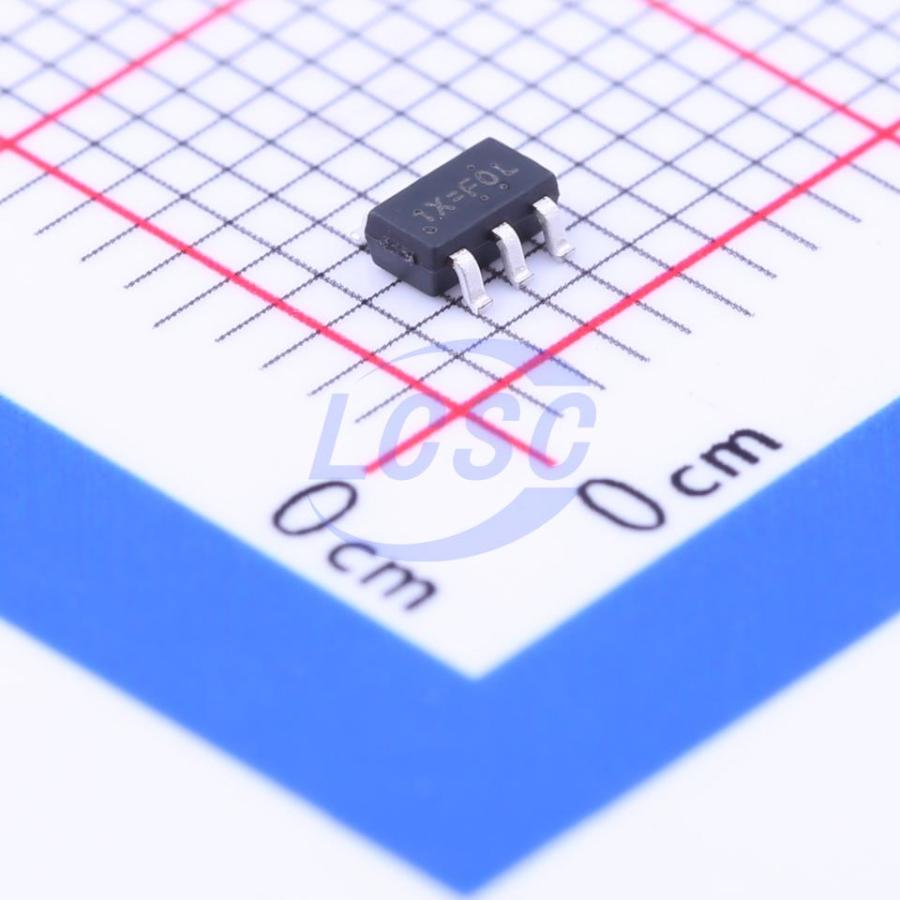

RT9043GB
1.2V~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
High PSRR, Low Dropout, 400mA Adjustable LDO Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9043GB
- Store part #
- C55019
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,620 in stock
#C55019
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.53 | ₹97.65 |
| 50+ | ₹15.28 | ₹764.00 |
| 150+ | ₹13.16 | ₹1,974.00 |
| 500+ | ₹11.30 | ₹5,650.00 |
| 3,000+ | ₹10.03 | ₹30,090.00 |
| 6,000+ | ₹9.39 | ₹56,340.00 |
5 × ₹19.53
₹97.65
excl. GST
₹115.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9043GB
₹97.65 for 5 + GST
Specifications
- Output Voltage
- 1.2V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.643 g
Overview
The RT9043 is a high-performance, 400mA LDO regulator, offering high PSRR and low dropout. The quiescent current is as low as 35μA, further prolonging the battery life. The RT9043 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in handheld wireless devices. The RT9043 consumes typical 0.7μA in shutdown mode. The other features include low dropout voltage, high output accuracy, current limit protection, and enable/shutdown control. The RT9043 is available in the SOT-23-5 package.
Applications
- Mega SIM Card
- CDMA/GSM Cellular Handsets
- Portable Information Appliances
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- Mini PCI & PCI-Express Cards
- PCMCIA & New Cards
Key features
- Adjustable Output Voltage
- Enable/Shutdown Control
- Wide Operating Voltage Range: 2.2V to 5.5V
- Low Dropout: 230mV at 400mA
- Low-Noise for RF Application
- Ultra-Fast Response in Line/Load Transient
- Current Limit Protection
- High Power Supply Rejection Ratio
- Output Only 1μF Capacitor Required for Stability
- RoHS Compliant and Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM2028-ADJYN5G/TR#C80894SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 5,590 | ₹43.12 · 5,590 in stock | View |
| MG6222T5-AJ#C54279899Megain · SOT-23-5 | Megain | SOT-23-5 | 2,120 | ₹3.80 · 2,120 in stock | View | |
