RICHTEKDatasheet (PDF)

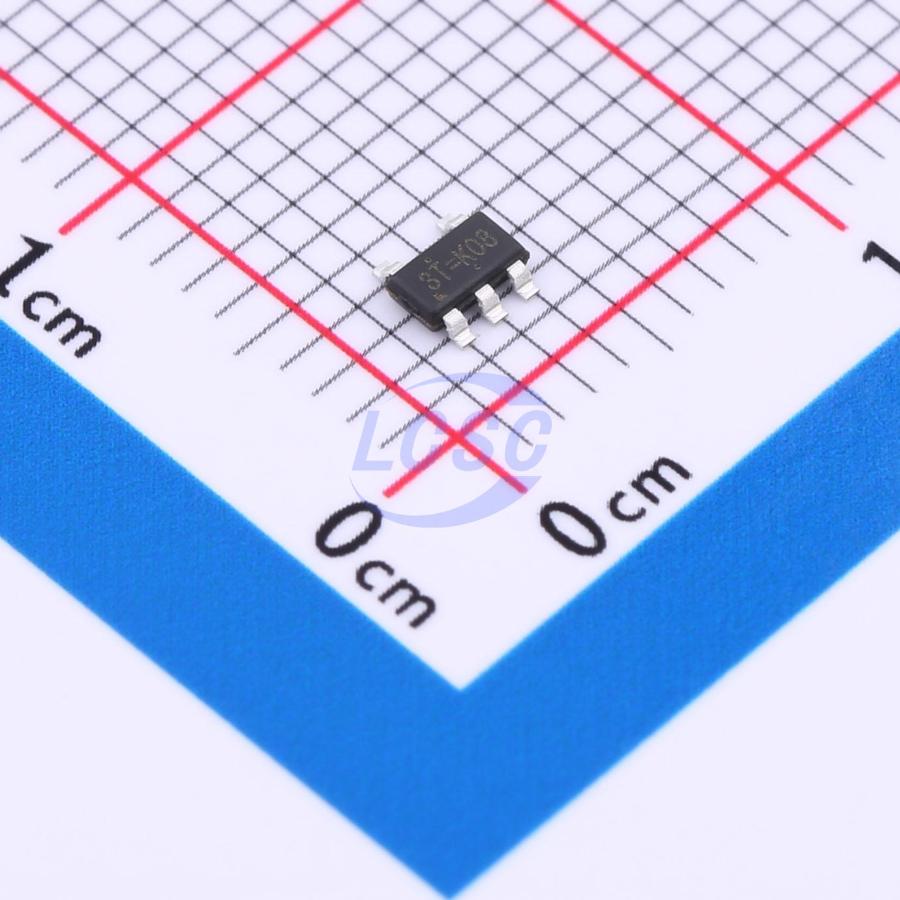

RT9078N-08GJ5
800mV~5V Positive Adjustable TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
2uA IQ, 300mA Low-Dropout Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9078N-08GJ5
- Store part #
- C250435
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,865 in stock
#C250435
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.07 | ₹65.35 |
| 50+ | ₹10.31 | ₹515.50 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹7.90 | ₹3,950.00 |
| 3,000+ | ₹6.72 | ₹20,160.00 |
| 6,000+ | ₹6.31 | ₹37,860.00 |
5 × ₹13.07
₹65.35
excl. GST
₹77.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9078N-08GJ5
₹65.35 for 5 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The RT9078 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- Portable, Battery Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- Input Voltage Range: 1.2V to 5.5V
- 2μA Ground Current (IQ) at no Load
- PSRR = 75dB at 1kHz
- Adjustable Output Voltage Range: 0.8V to 5V (TSOT - 23 - 5 Package with SNS Pin Only)
- ±2% Output Accuracy
- Low (0.1μA) Shutdown Current
- Dropout Voltage: 0.15V at 300mA when VOUT ≥ 3V
- Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- TSOT - 23 - 5 and ZQFN - 4L 1x1 (ZDFN - 4L 1x1) Packages Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMI6050#C478956TMI · SOT-23-5 | TMI | SOT-23-5 | 7,560 | ₹5.33 · 7,560 in stock | View |
 | SGM2032-ADJYN5G/TR#C83281SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 4,410 | ₹34.42 · 4,410 in stock | View |
 | JY1105A-ADJBX#C3038106JingYang · SOT-23-5L | JingYang | SOT-23-5L | 5,080 | ₹11.89 · 5,080 in stock | View |
 | JY1105-ADJBX#C3038107JingYang · SOT-23-5L | JingYang | SOT-23-5L | 2,060 | ₹16.91 · 2,060 in stock | View |
 | AP7366-W5-7#C2934600DIODES · SOT-25 | DIODES | SOT-25 | 3,075 | ₹41.79 · 3,075 in stock | View |
