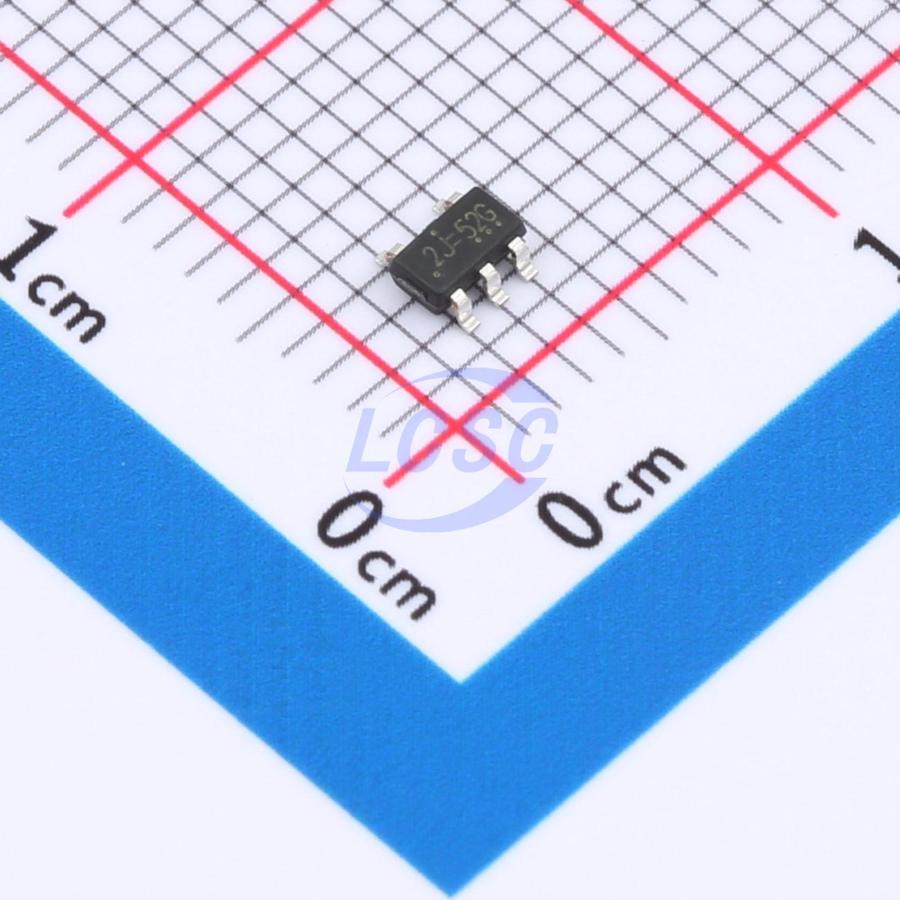

RT9080-12GJ5
Linear Voltage Regulator IC Positive Fixed 1 Output 600mA SOT-23-5
SOT-23-5RoHSActive
600 mA, 2 μA, high PSRR voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RT9080-12GJ5
- Store part #
- C23380884
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,325 in stock
#C23380884
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.51 | ₹67.55 |
| 50+ | ₹10.69 | ₹534.50 |
| 150+ | ₹9.27 | ₹1,390.50 |
| 500+ | ₹8.20 | ₹4,100.00 |
| 3,000+ | ₹7.36 | ₹22,080.00 |
| 6,000+ | ₹6.93 | ₹41,580.00 |
5 × ₹13.51
₹67.55
excl. GST
₹79.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9080-12GJ5
₹67.55 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The RT9080 series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5V, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 600mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.32V at 600mA/ Vout 3.3V
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over Temperature Protection
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9080-12GJ5#C2959866TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,790 | ₹14.28 · 2,790 in stock | View |
 | TPAP7365-12WG#C2940635TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,060 | ₹18.89 · 1,060 in stock | View |
 | TPAP2112K-1.2TRG1#C49451994TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,675 | ₹13.69 · 2,675 in stock | View |
 | XC6210B122MR#C22435183TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,475 | ₹22.07 · 1,475 in stock | View |
 | XC6227C121MR#C22435149TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,505 | ₹22.03 · 1,505 in stock | View |
