RICHTEKDatasheet (PDF)

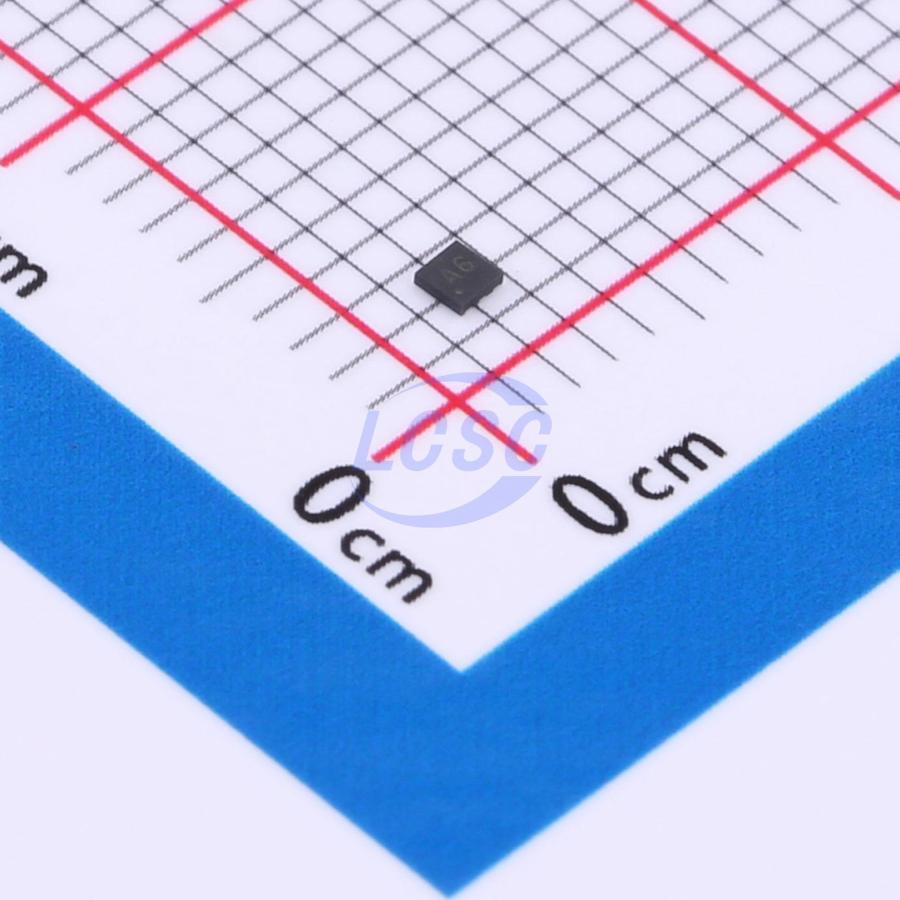

RT9081AGQZA
800mV~3.6V Positive Adjustable ZADFN-6-EP(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ZADFN-6-EP(1.2x1.2)ROHS CompliantActive
500mA, 5.5V, Ultra Low Dropout Linear Regulator
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9081AGQZA
- Store part #
- C2962576
- Package / case
- ZADFN-6-EP(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,110 in stock
#C2962576
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.10 | ₹180.50 |
| 50+ | ₹28.66 | ₹1,433.00 |
| 150+ | ₹25.45 | ₹3,817.50 |
| 500+ | ₹21.47 | ₹10,735.00 |
| 2,500+ | ₹16.76 | ₹41,900.00 |
| 5,000+ | ₹15.69 | ₹78,450.00 |
5 × ₹36.10
₹180.50
excl. GST
₹212.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9081AGQZA
₹180.50 for 5 + GST
Specifications
- Output Voltage
- 800mV~3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 110uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The RT9081A is a high performance positive voltage regulator with separated bias voltage (VBIAS), designed for applications requiring low input voltage and ultra low dropout voltage, output current up to 500mA. The feature of ultra low dropout voltage is ideal for applications where output voltage is very close to input voltage. The input voltage can be as low as 0.8V and the output voltage is adjustable by an external resistive divider. The RT9081A features very low quiescent current consumption for portable applications. The device is available in the ZADFN6L 1.2x1.2 package.
Applications
- Battery Powered Systems
- Portable Electronic Device
- Digital Set Top Boxes
Key features
- Input Voltage Range : 0.8V to 5.5V
- Bias Voltage Range : 2.4V to 5.5V
- Output Voltage Fixed and Adjustable Versions
- 0.9V to 1.8V (Fixed)
- 0.8V to 3.6V (Adjustable)
- Accurate Output Voltage Accuracy (1.5%) Over Line, Load @ 55°C
- Ultra Low Dropout Voltage : 140mV at 500mA
- Low Bias Input Current
- 80μA in Operating Mode
- 0.5μA in Shutdown Mode
- Enable Control
- Output Active Discharge Function
- RoHS Compliant and Halogen Free
