RICHTEK

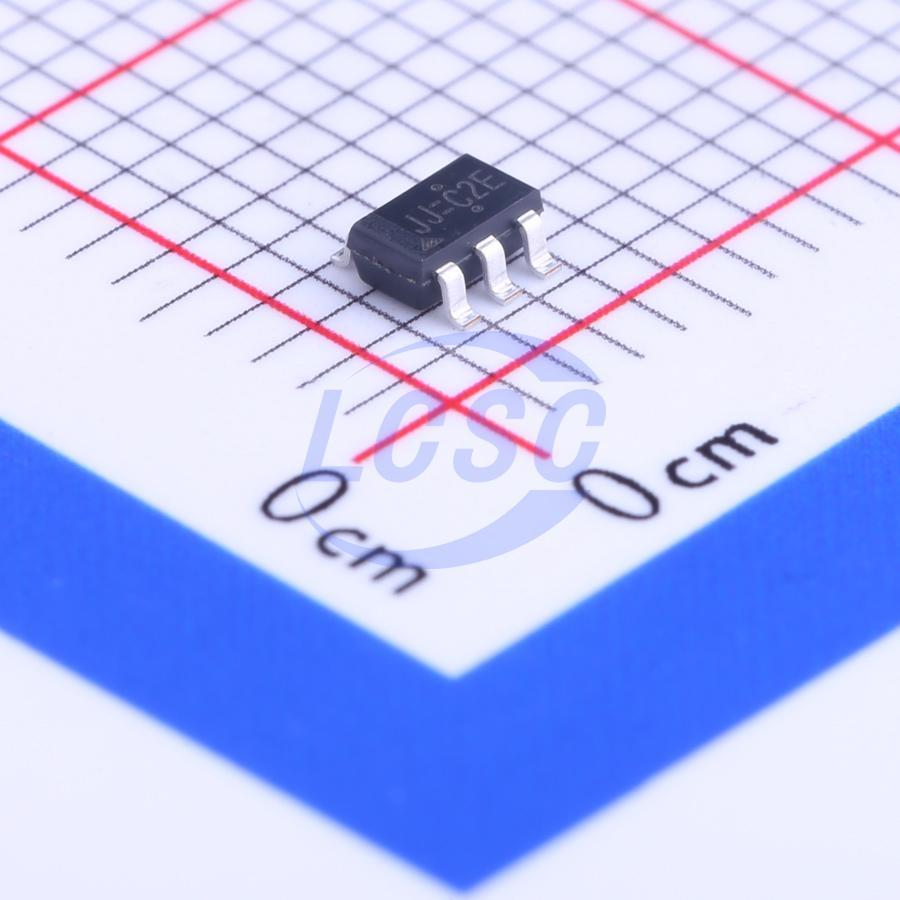

RT9167A-33GB

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

Low-Noise, Fixed Output Voltage, LDO Regulator

Manufacturer: RICHTEK
Manufacturer part #: RT9167A-33GB
Store part #: C113513
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,330 in stock

#C113513

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹26.31	₹131.55
50+	₹20.86	₹1,043.00
150+	₹18.51	₹2,776.50
500+	₹15.60	₹7,800.00
3,000+	₹12.28	₹36,840.00
6,000+	₹11.50	₹69,000.00

Quantity (min 5, multiples of 5)

5 × ₹26.31

₹131.55

excl. GST

₹155.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT9167A-33GB

₹131.55 for 5 + GST

Specifications

Output Voltage: 3.3V
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 90uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 7V
Features: Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.643 g

Overview

The RT9167/A is a 300mA/500mA low dropout and low noise micropower regulator suitable for portable applications. The output voltages range from 1.5V to 5V in 100mV increments and 2% accuracy. The RT9167/A is designed for use with very low ESR capacitors. The output remains stable even with 1μF ceramic output capacitor. The RT9167/A uses an internal P-MOSFET as the pass device, which does not cause extra GND current in heavy load and dropout conditions. The shutdown mode of nearly zero operation current makes the IC suitable for battery-powered devices. Other features include a reference bypass pin to improve low noise performance, current limiting, and over temperature protection.

Applications

Cellular Telephones
Laptop, Notebook, and Palmtop Computers
Battery-powered Equipment
Hand-held Equipment

Key features

Stable with Low-ESR Output Capacitor
Low Dropout Voltage (350mV @ 300mA)
Low Operation Current (-80μA Typical)
Shutdown Function
Low Noise Output
Low Temperature Coefficient
Current and Thermal Limiting
Custom Voltage Available
SOT-23-5 and SOP-8 Packages
RoHS Compliant and 100% Lead (Pb)-Free

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SPX3819M5-L-3-3/TR#C9055MaxLinear · SOT-23-5	MaxLinear	SOT-23-5	40,000	₹33.44 · 40,000 in stock	View
BL8558-33PRN#C313519BL · SOT-23-5	BL	SOT-23-5	2,825	₹10.16 · 2,825 in stock	View
TP5108E23E-33#C587168TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	4,220	₹10.45 · 4,220 in stock	View
TP151C33S5#C2844725TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	1,960	₹12.30 · 1,960 in stock	View
MS5108E23E-33#C30197551MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	1,410	₹8.09 · 1,410 in stock	View
