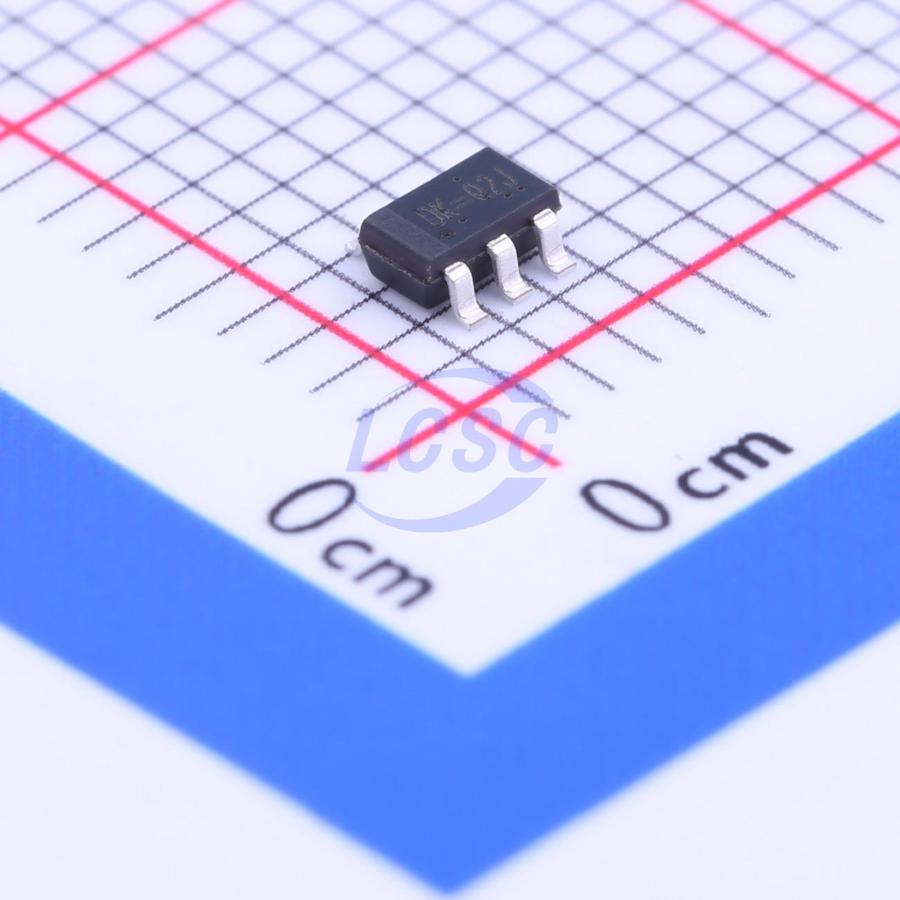

RT9193-30GB

The RT9193 is designed for portable RF and wireless applications with demanding performance and space requirements. The RT9193 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. A noise bypass pin is available for further reduction of output noise. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The RT9193 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The RT9193 consumes less than 0.01μA in shutdown mode and has fast turn-on time less than 50μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the SC-70-5, SOT-23-5, TSOT-23-5, WDFN-6L 2x2 and MSOP-8 packages.

Applications

• CDMA/GSM Cellular Handsets
• Battery-Powered Equipment
• Laptop, Palmtops, Notebook Computers
• Hand-Held Instruments
• PCMCIA Cards
• Portable Information Appliances

Key features

• Ultra Low Noise for RF Application
• Ultra Fast Response in Line/Load Transient
• Quick Start-Up (Typically 50μs)
• <0.01μμ Standby Current When Shutdown
• Low Dropout: 220 v@300n mA
• Wide Operating Voltage Ranges: 2.5V to 5.5V
• TTL-Logic-Controlled Shutdown Input
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1μF Output Capacitor Required for Stability
• High Power Supply Rejection Ratio
• Custom Voltage Available
• RoHS Compliant and 100% Lead (Pb)-Free
