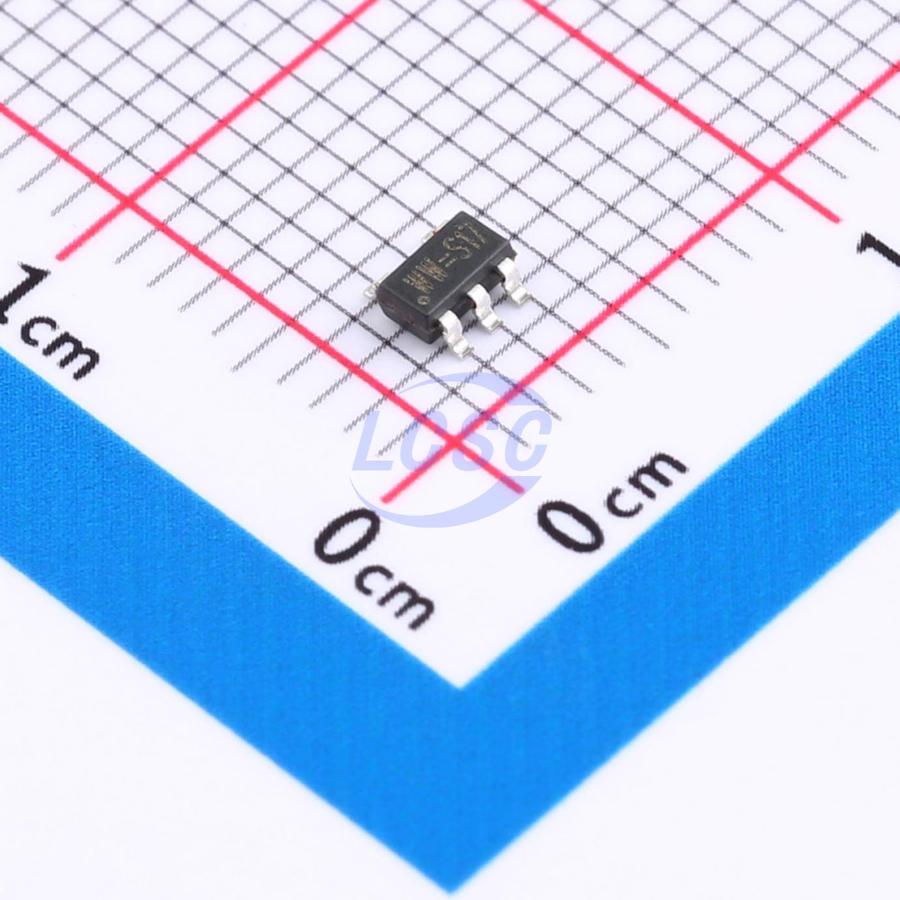

TPRT9013-30GB
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9013-30GB
- Store part #
- C587159
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,655 in stock
#C587159
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.84 | ₹54.20 |
| 50+ | ₹8.57 | ₹428.50 |
| 150+ | ₹7.44 | ₹1,116.00 |
| 500+ | ₹6.59 | ₹3,295.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.41 | ₹32,460.00 |
5 × ₹10.84
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9013-30GB
₹54.20 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TPRT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPRT9013 is available in 5pin SOT23-5 Package. It output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/G-SM mobile phone
- PDAs
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA(Typ.) SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP9001-30S5#C708749TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 245 | ₹5.03 · 245 in stock | View |
 | WL2803E30#C41408121TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 155 | ₹7.22 · 155 in stock | View |
 | TP2028-3.0YN5G#C907844TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,050 | ₹9.29 · 3,050 in stock | View |
 | TP5108E23E-30#C907846TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,100 | ₹10.41 · 3,100 in stock | View |
 | SPX3819M5-L-3-0#C23380894TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,155 | ₹18.87 · 2,155 in stock | View |
