JSMSEMIDatasheet (PDF)

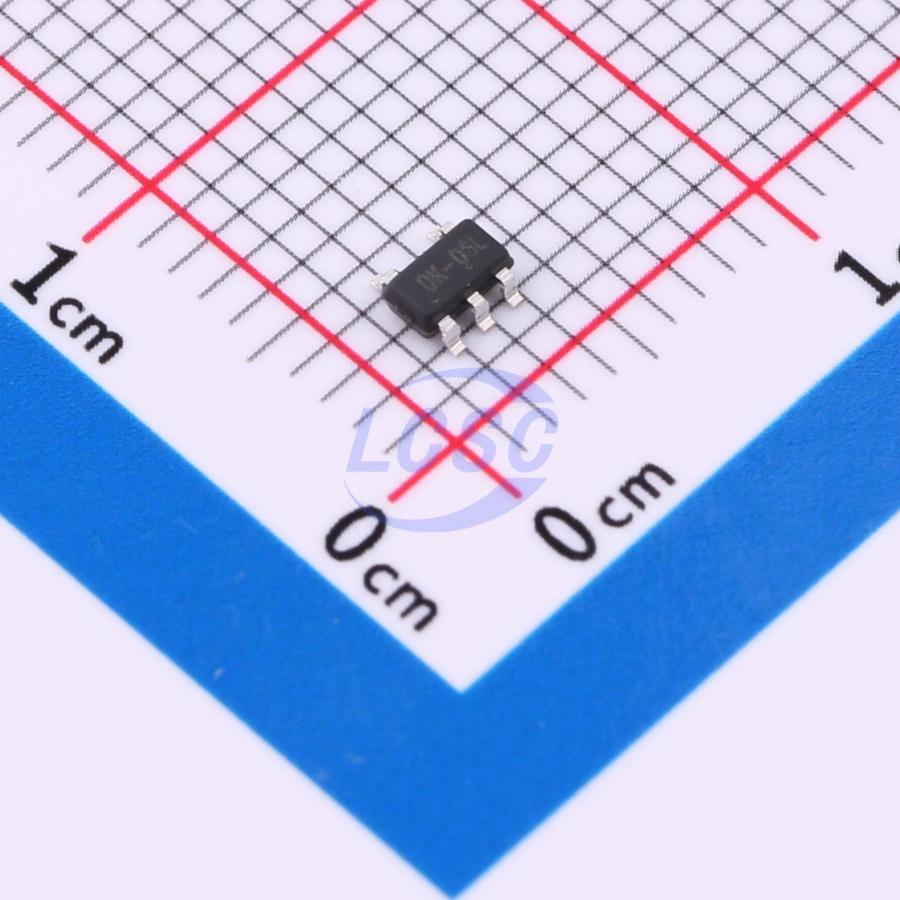

RT9193-30GB-JSM
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS CompliantActive
IC REG LINEAR 3V 300mA SOT-23-5
- Manufacturer
- JSMSEMI
- Manufacturer part #
- RT9193-30GB-JSM
- Store part #
- C39846935
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C39846935
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.34 | ₹56.70 |
| 50+ | ₹8.96 | ₹448.00 |
| 150+ | ₹7.78 | ₹1,167.00 |
| 500+ | ₹6.88 | ₹3,440.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 6,000+ | ₹5.81 | ₹34,860.00 |
5 × ₹11.34
₹56.70
excl. GST
₹66.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9193-30GB-JSM
₹56.70 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+60℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The RT9193 series is a high-accuracy, low-noise, fast-transient LDO linear regulator fabricated in CMOS process. This series integrates a built-in fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, fast transient response, and low dropout performance. The RT9193 series is compatible with ceramic capacitors smaller than coin-type capacitors, and requires no 0.1 μF bypass capacitor, saving board space and reducing cost. With high-accuracy output regulation and fast transient response performance to handle load current variations, it is especially suitable for handheld devices and RF products. By controlling the CE pin on the chip, the output can be shut down. The quiescent current in shutdown mode is only 0.1 μA (Typ), significantly reducing power consumption.
Applications
- Smartphones/mobile phones
- Digital cameras/camcorders
- Battery-powered devices
Key features
- High output voltage accuracy: ±2.5%
- Selectable output voltage: 1.8 V ~ 5.0 V
- Ultra-low quiescent current (Typ. = 25 μA)
- Ultra-low shutdown current (Typ. = 0.1 μA)
- Good line regulation: Typ. = 0.2%/V
- Ceramic capacitor compatible
- Package: SOT89-5, SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-30GB-JSM#C39846928JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 1,690 | ₹8.94 · 1,690 in stock | View |
