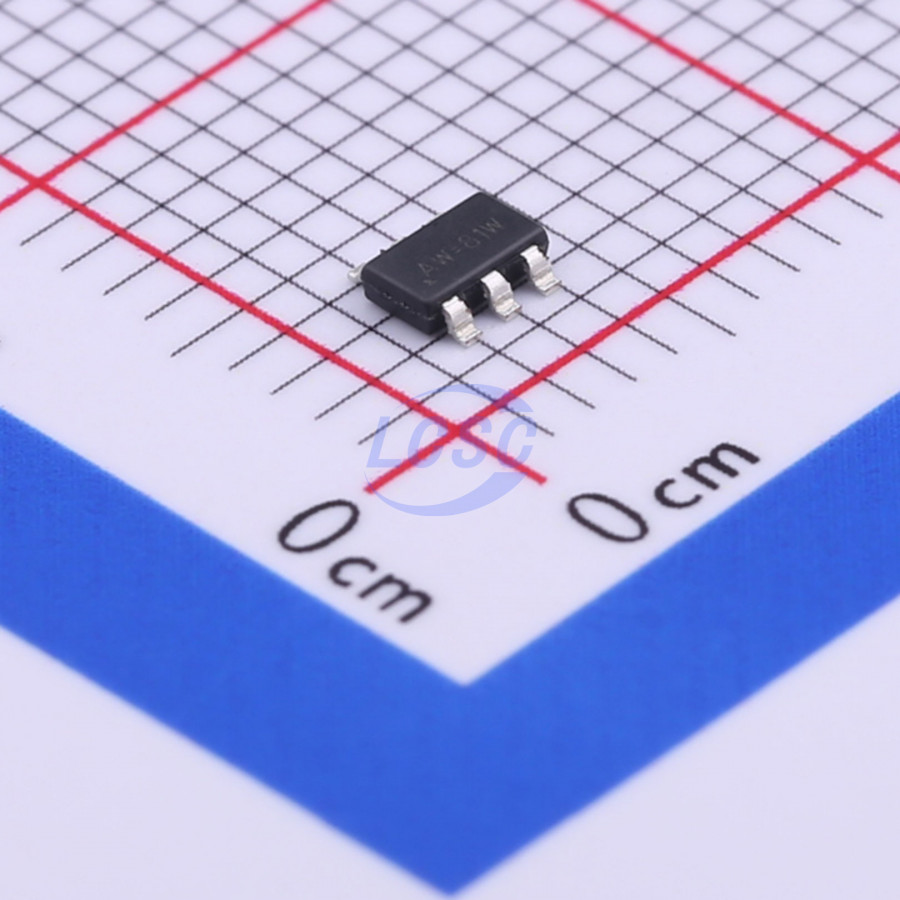

RT9284A-20GJ6E
1.2MHz 1 20V 100mA 2.7V~5.5V TSOT-23-6 LED Drivers RoHS
Tiny Package, High Performance, Constant Current Switching Regulator for White LED
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9284A-20GJ6E
- Store part #
- C250540
- Package / case
- TSOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,425 in stock
#C250540
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.47 | ₹202.35 |
| 50+ | ₹31.70 | ₹1,585.00 |
| 150+ | ₹27.93 | ₹4,189.50 |
| 500+ | ₹23.25 | ₹11,625.00 |
| 3,000+ | ₹21.15 | ₹63,450.00 |
| 6,000+ | ₹19.90 | ₹1,19,400.00 |
5 × ₹40.47
₹202.35
excl. GST
₹238.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9284A-20GJ6E
₹202.35 for 5 + GST
Specifications
- Frequency - Switching
- 1.2MHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 20V
- Operating Temperature
- -40℃~+85℃
- Output Current
- 100mA
- Features
- Over Voltage Protection;Built-in soft-start
- Topology
- Boost
- Voltage - Input(DC)
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The RT9284A/B is a compact, high efficient and high integration LED driver. Internal 22V MOSFET can support 2 to 5 White LEDs for backlighting and camera flashing. Highly integration and internal compensation network minimizes as 5 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. Internal soft start function can reduce the inrush current. Tiny package type of TSOT-23-5 and TSOT-23-6 packages provide the best solution for PCB space saving and total BOM cost.
Applications
- Camera Flash White LED
- Mobile Phone, Smart Phone LED Backlight
- PDA LED Backlight
- Digital Still Camera
- Camcorder
Key features
- VIN Operating Range: 2.7V to 5.5V
- Maximum Output Voltage up to 20V
- Dimming with Zero-inrush and Wide Frequency Range of 100 to 100kHz
- Over Voltage Protection
- Output Current up to 100mA at VOUT: 12V
- Zero Shutdown Supply Current
- Minimize the External Component
- Small LC Filter
- Internal Soft Start
- RoHS Compliant and 100% Lead (Pb)-Free
