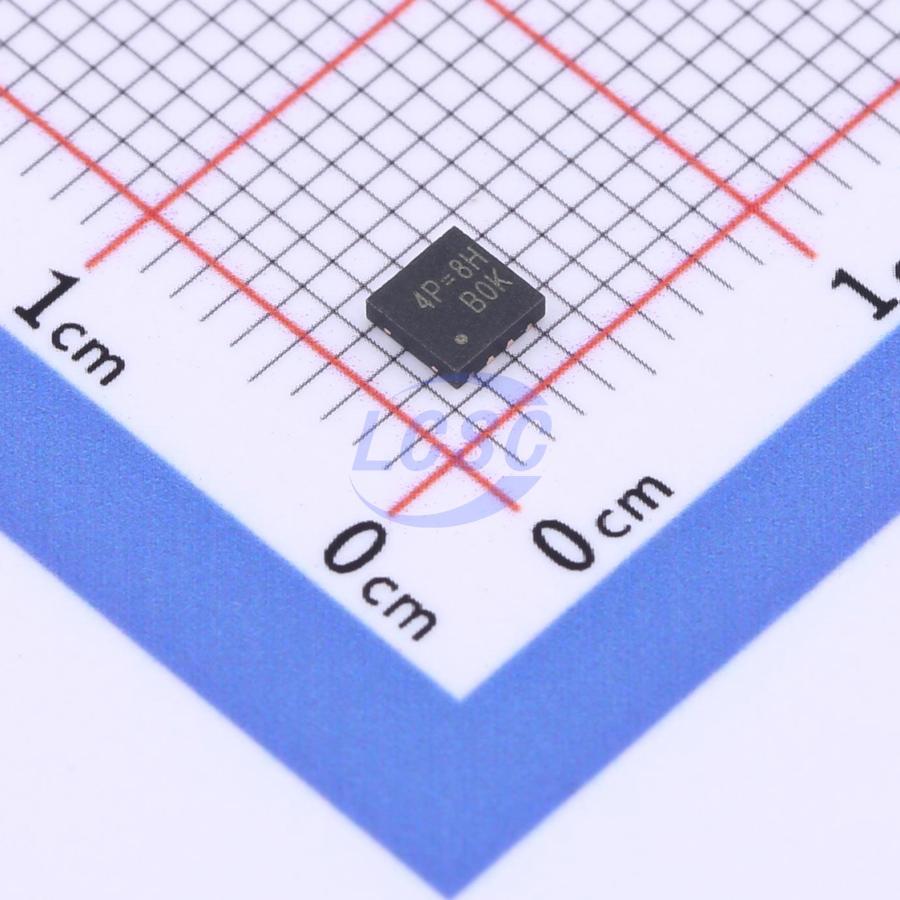

RT9624FGQW
4.5V~13.2V TDFN-8-EP(3x3) Gate Drivers RoHS
Single Phase Synchronous Rectified Buck MOSFET Driver
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9624FGQW
- Store part #
- C3020454
- Package / case
- TDFN-8-EP(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,235 in stock
#C3020454
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.42 | ₹182.10 |
| 50+ | ₹28.75 | ₹1,437.50 |
| 150+ | ₹25.47 | ₹3,820.50 |
| 1,500+ | ₹20.41 | ₹30,615.00 |
| 3,000+ | ₹18.59 | ₹55,770.00 |
| 4,500+ | ₹17.50 | ₹78,750.00 |
5 × ₹36.42
₹182.10
excl. GST
₹214.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RT9624FGQW
₹182.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.4V
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.3V
- Voltage - Supply
- 4.5V~13.2V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Rise Time
- 25ns
- Fall Time
- 12ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
The RT9624F is a high frequency, synchronous rectified, single phase MOSFET driver designed for normal MOSFET driving applications and high performance CPU VR driving capabilities. The RT9624F can be supplied from 4.5V to 13.2V. The applicable power stage VIN range is from 5V to 24V. The IC also builds in an internal power switch to replace external bootstrap diode. The RT9624F can support switching frequency efficiently up to 500kHz. The IC has both UGATE and LGATE driving circuits for synchronous rectified DC/DC converter applications. The shoot through protection mechanism is designed to prevent shoot through between high - side and low - side power MOSFETs. The RT9624F has tri - state PWM input with shutdown function, which can force driver to output low UGATE and LGATE signals. The RT9624F is available in a small footprint WDFN - 8L 3x3 package.
Applications
- Core Voltage Supplies for Desktop, Motherboard CPU
- High Frequency Low Profile DC/DC Converters
- High Current Low Voltage DC/DC Converters
- Core Voltage Supplies for GFX Card
Key features
- Drive Two N - MOSFETs
- Shoot Through Protection
- Embedded Bootstrap Diode
- Support High Switching Frequency
- Fast Output Rising Time
- Tri - State PWM Input for Output Shutdown
- 8 - Lead WDFN Package
- RoHS Compliant and Halogen Free
