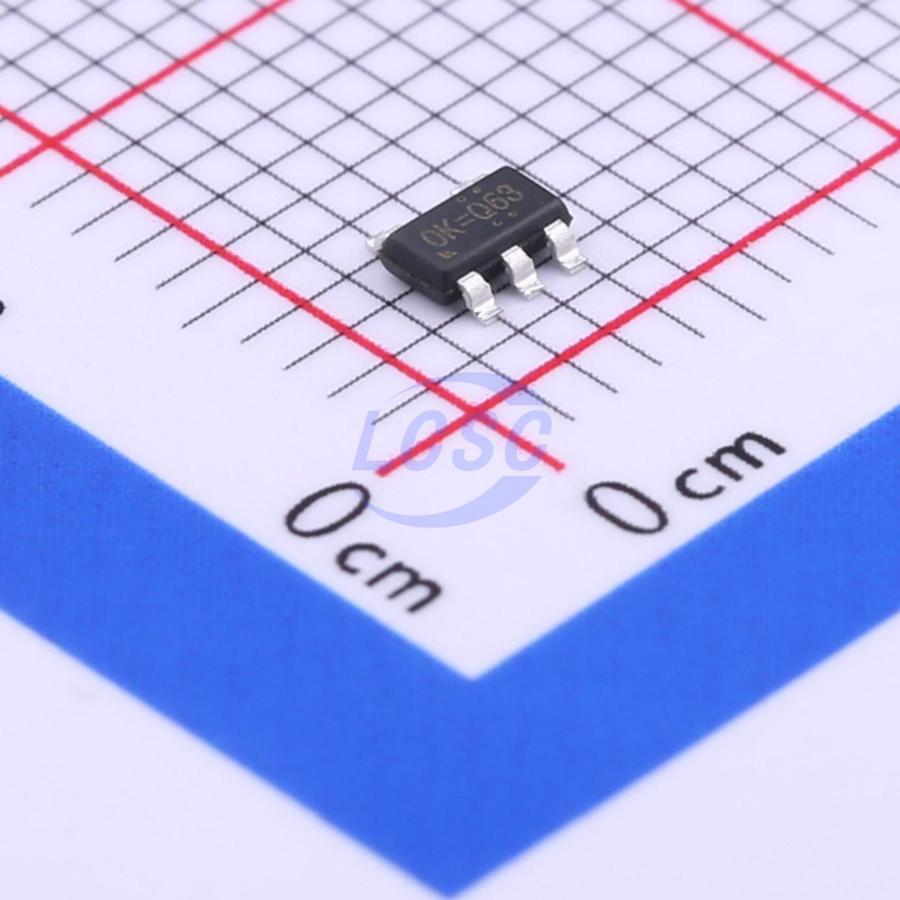

RT9742CGJ5(Z30)
1 2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
High-Side Power Switches with Flag
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9742CGJ5(Z30)
- Store part #
- C424402
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,265 in stock
#C424402
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.72 | ₹113.60 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹16.35 | ₹2,452.50 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 3,000+ | ₹11.44 | ₹34,320.00 |
| 6,000+ | ₹10.81 | ₹64,860.00 |
5 × ₹22.72
₹113.60
excl. GST
₹134.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9742CGJ5(Z30)
₹113.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Integrated charge pump;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- RDS(on)
- 55mΩ
- Operating Voltage
- 2.7V~6V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The RT9742 is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. Low switch-on resistance and low supply current are realized in this IC. The RT9742 integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection. Besides, a flag output is available to indicate fault conditions to the local USB controller. Furthermore, the chip also integrates an embedded delay function to prevent miss-operation from happening due to inrush-current. The RT9742 is an ideal solution for USB power supply and can support flexible applications since it is available in TSOT-23-5, TSOT-23-5 (FC) and SOT-23-3 package.
Applications
- USB Peripherals
- Notebook PCs
Key features
- 70mΩ/55mΩ (typ.) N-MOSFET Switch
- Operating Range: 2.7V to 6V
- Reverse Blocking Current
- Under Voltage Lockout
- Deglitched Fault Report (FLG)
- Thermal Protection with Fold-back
- Over Current Protection
- Short Circuit Protection
- UL Approved - E219878
- Nemko Approved - NO87949
