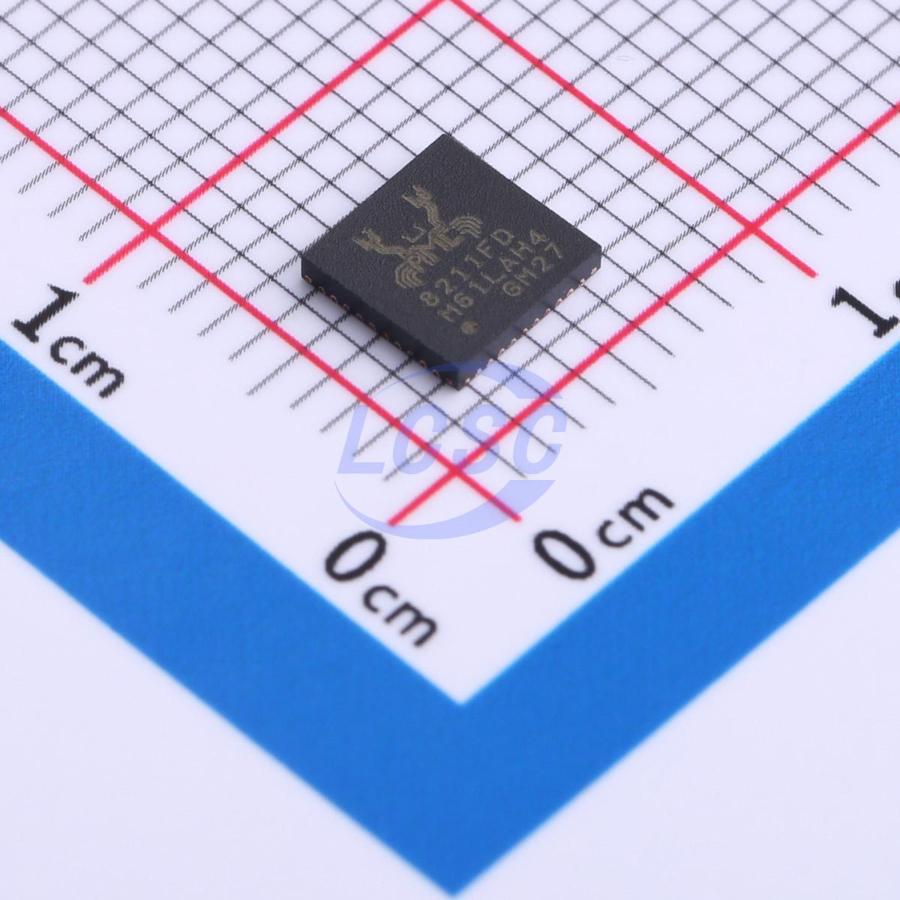

REALTEK

RTL8211FD-CG

Ethernet Transceiver RGMII QFN-40-EP(5x5) Drivers, Receivers, Transceivers

QFN-40-EP(5x5)RoHSActive

Integrated 10/100/1000M Ethernet Precision Transceiver

Manufacturer: REALTEK
Manufacturer part #: RTL8211FD-CG
Store part #: C2687133
Package / case: QFN-40-EP(5x5)
Category: Drivers, Receivers, Transceivers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,966 in stock

#C2687133

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹320.52	₹320.52
10+	₹273.79	₹2,737.90
30+	₹244.46	₹7,333.80
100+	₹183.84	₹18,384.00
490+	₹170.36	₹83,476.40
980+	₹164.50	₹1,61,210.00

Quantity (min 1)

1 × ₹320.52

₹320.52

excl. GST

₹378.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 490 per tray

RTL8211FD-CG

₹320.52 for 1 + GST

Specifications

Type: Ethernet Transceiver
Voltage - Supply: 3.3V;2.5V;1.8V;1.5V
Ethernet Speed Standards: 10BASE-T;100BASE-TX;1000BASE-T
Data Rate: 10Mbit/s;100Mbit/s;1Gbit/s
Features: Low-power mode;Programmable LED indication
Interface: RGMII

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tray
Standard pack: 490 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The RTL8211F(I) series is a single-chip, low-power, high-performance 10BASE-Te/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver that integrates all necessary physical layer functions to provide complete 10/100/1000Mbps Ethernet connectivity over standard CAT-5 unshielded twisted-pair cable. The transceiver supports the IEEE 802.3az Energy-Efficient Ethernet standard, significantly reducing power consumption through low-power idle and burst modes. It supports auto-negotiation for automatic selection of the highest-performance link mode, along with crossover detection and auto-correction. The device also supports remote wake-up via Magic Packet and Wake-on-LAN frames. Its management interface is compliant with the IEEE 802.3 standard. The transceiver is fabricated using advanced CMOS process technology and is available in a 48-pin QFN green package.

Applications

Network interface cards
Laptops and desktop computers
Network printers
Consumer electronics
Embedded systems

Key features

Supports 10BASE-Te, 100BASE-TX, and 1000BASE-T operation, compliant with IEEE 802.3, 802.3u, and 802.3ab standards
Supports IEEE 802.3az Energy Efficient Ethernet
Supports crossover detection and auto-correction
Supports remote wake-up via Magic Packet and Wake-on-LAN frames
Compatible with IEEE 802.3 MDIO interface
Supports EMI reduction
Supports auto-negotiation with next page capability
Supports master/slave configuration
Supports LED customization for Energy Efficient Ethernet and remote wake-up
Supports polarity correction
Supports INTB/PMEB pin for interrupt and power management events
Single supply voltage: 3.3V
Industrial temperature range: -40℃ ~ 85℃
48-pin halogen-free QFN green package
