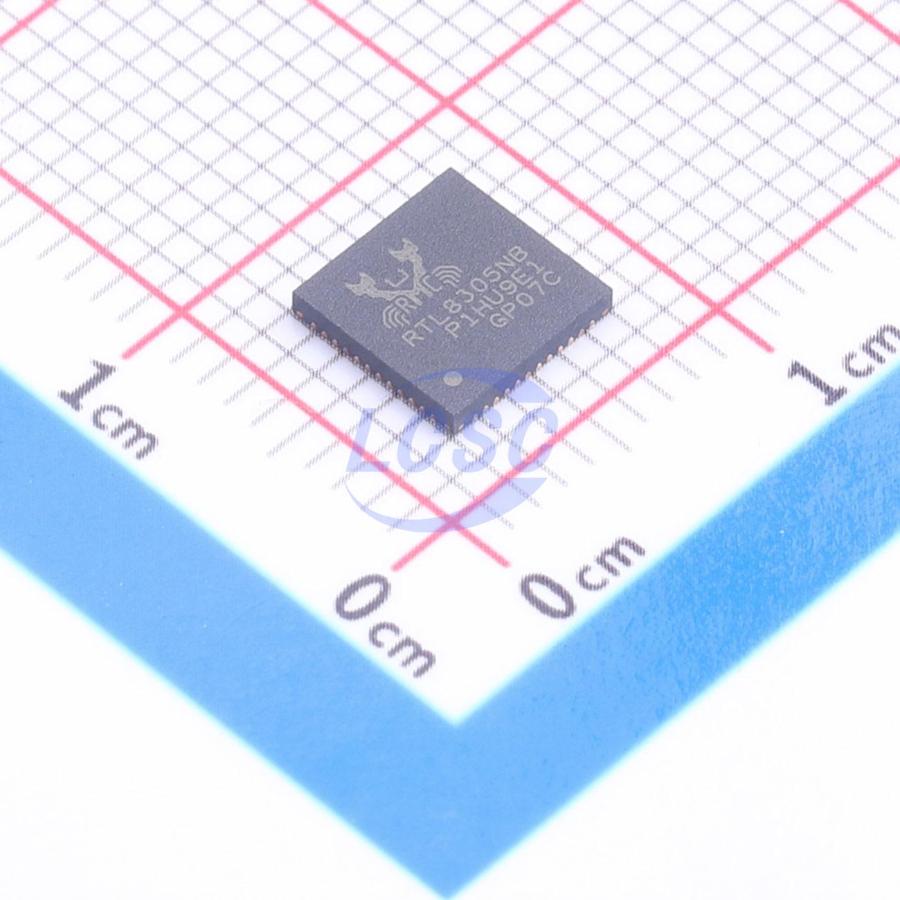

RTL8305NB-VC-CG

RTL8305NB-VC-CG is a single-chip 5-port 10/100M Ethernet switch controller. The device integrates five PHY transceivers supporting 10BASE-T and 100BASE-TX operation, a high-performance non-blocking switch engine, an on-chip SRAM for address lookup, an on-chip SRAM for packet buffering, and a built-in management interface for configuration and management. The switch controller supports a wide range of advanced features, including port-based VLAN, IEEE 802.1Q tag-based VLAN, QoS, bandwidth control, storm filtering, loop detection, and cable diagnostics. It supports auto-negotiation, auto MDI/MDIX crossover detection and correction, polarity detection and correction, and link monitoring. The device is powered by a 1.2V core voltage and 3.3V I/O voltage, and integrates an LDO for generating the 1.2V core voltage. It supports configuration via serial EEPROM or an external management interface. The device is available in a 48-pin QFN package.

Applications

• Network switches
• Industrial Ethernet equipment
• Security surveillance systems
• Network-attached storage
• Enterprise networking equipment

Key features

• Integrated 5-port 10/100M Ethernet switch controller and PHY transceiver
• Compliant with IEEE 802.3/802.3u/802.3x standards
• Supports 10BASE-T and 100BASE-TX operation
• Supports full-duplex IEEE 802.3x flow control and half-duplex backpressure flow control
• Supports auto-negotiation, auto MDI/MDIX crossover, polarity detection and correction
• Supports port-based VLAN and IEEE 802.1Q tag-based VLAN
• Supports QoS with priority assignment based on port, 802.1p, DSCP, and IP address
• Supports ingress and egress bandwidth control
• Supports broadcast, multicast, and unknown unicast storm filtering
• Supports loop detection
• Supports cable diagnostics
• Supports Energy Efficient Ethernet
• Integrated on-chip SRAM for address lookup and packet buffering
• Supports configuration via serial EEPROM or SMI interface
• Built-in 1.2V LDO
• 48-pin QFN package
