RTL8370N-VB-CG
3.3V LQFP-128-EP(14x20) Drivers, Receivers, Transceivers
LQFP-128-EP(14x20)RoHSActive

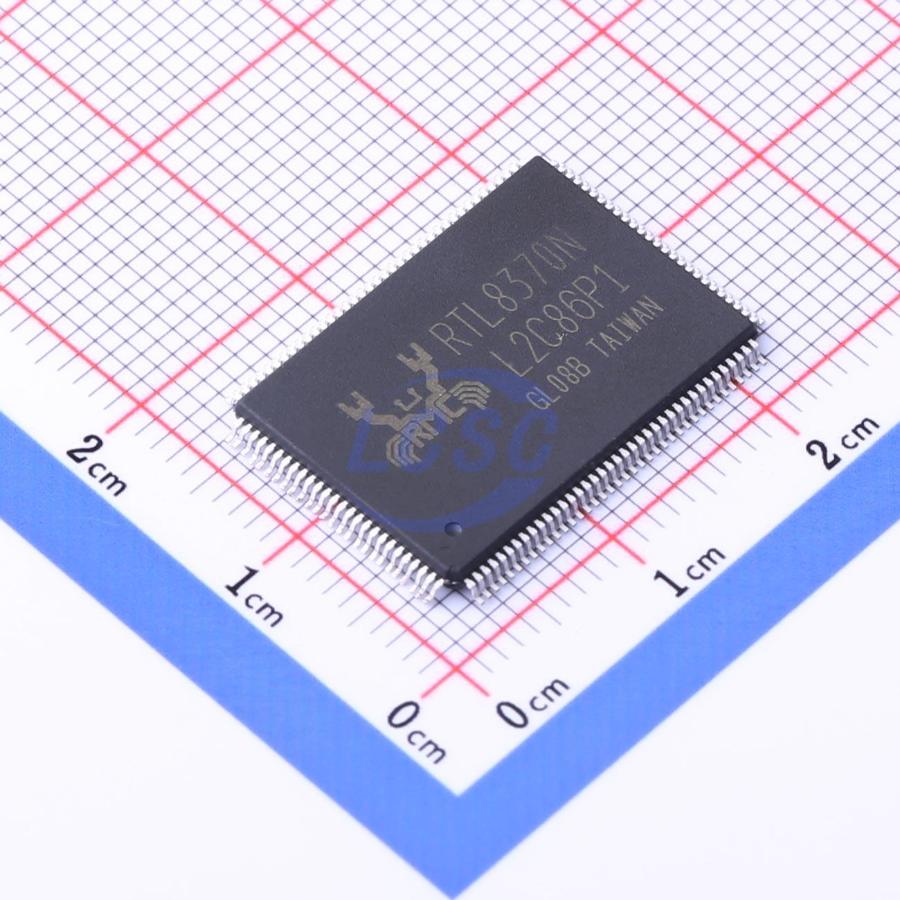

Single-Chip 8-Port 10/100/1000M Switch Controller
- Manufacturer
- REALTEK
- Manufacturer part #
- RTL8370N-VB-CG
- Store part #
- C2803243
- Package / case
- LQFP-128-EP(14x20)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C2803243
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹586.19 | ₹586.19 |
| 10+ | ₹496.79 | ₹4,967.90 |
| 30+ | ₹443.52 | ₹13,305.60 |
| 72+ | ₹389.71 | ₹28,059.12 |
| 504+ | ₹364.97 | ₹1,83,944.88 |
| 1,008+ | ₹353.77 | ₹3,56,600.16 |
1 × ₹586.19
₹586.19
excl. GST
₹691.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 72 per tray
RTL8370N-VB-CG
₹586.19 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V
- Ethernet Speed Standards
- 10BASE-T;100BASE-TX;1000BASE-T
- Data Rate
- 10Mbit/s;100Mbit/s;1Gbit/s
- number of channels
- 8
- Operating Temperature
- 0℃~+70℃
- Features
- Cable diagnostics;IEEE1588 timestamp;Low-power mode;Programmable LED indication
- Interface
- GMII;MII
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 72 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.95 g
Overview
RTL8370N-VB-CG is a single-chip 8-port 10/100/1000M Ethernet switch controller.
Applications
- SMB network switches
- Home gateways
- Industrial Ethernet switches
- Network attached storage devices
- Security surveillance systems
Key features
- Integrated 8-port 10/100/1000BASE-T PHY transceivers
- Compliant with IEEE 802.3, 802.3u, and 802.3ab standards
- Auto-negotiation, crossover detection, and auto-correction
- Full-duplex and half-duplex flow control
- Port-based VLAN, IEEE 802.1Q tagged VLAN, and protocol-based VLAN
- QoS features including ingress bandwidth control, priority assignment, and queue scheduling
- IGMP and MLD snooping
- IEEE 802.1X port access control
- IEEE 802.1D Spanning Tree Protocol
- Integrated embedded 8051 microcontroller
- Green Ethernet and IEEE 802.3az Energy Efficient Ethernet (EEE)
- Parallel LED mode and scanning LED mode indication
- Cable length detection
- External CPU interrupt pin
- LQFP-128 package
