YAGEODatasheet (PDF)

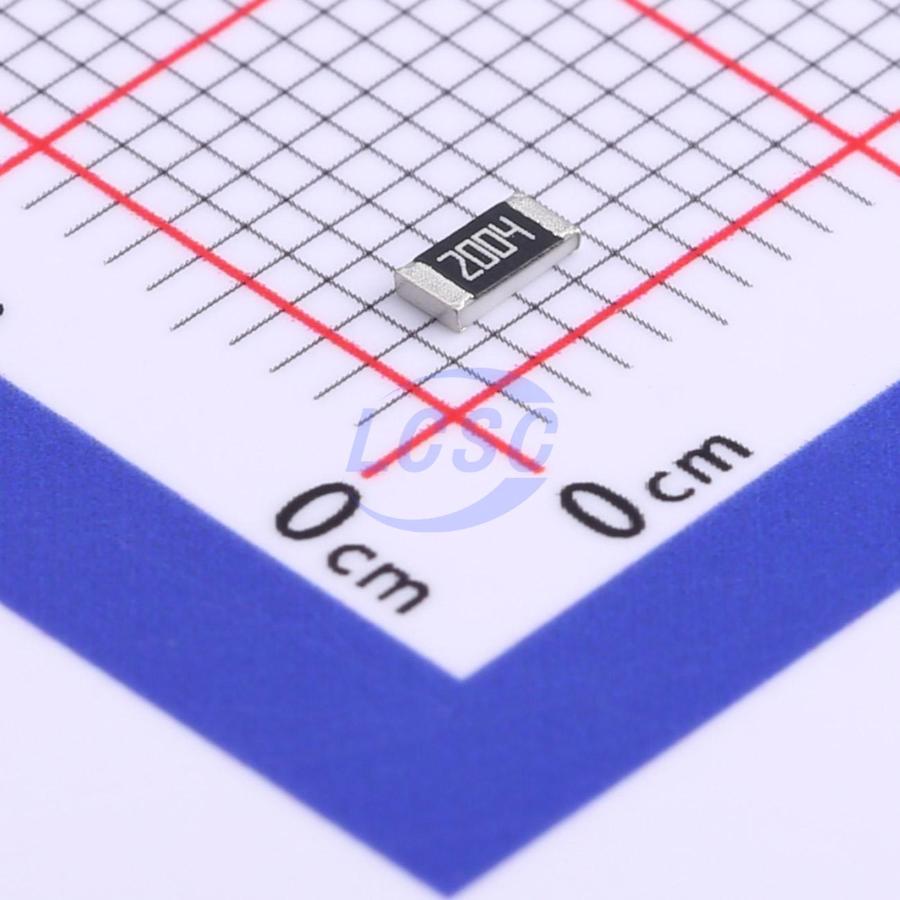

RV1206FR-072ML
2MΩ 250mW Thick Film Resistor ±1% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 2MΩ ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206FR-072ML
- Store part #
- C706460
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,450 in stock
#C706460
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.97 | ₹98.50 |
| 500+ | ₹1.63 | ₹815.00 |
| 1,500+ | ₹1.44 | ₹2,160.00 |
| 5,000+ | ₹1.32 | ₹6,600.00 |
| 25,000+ | ₹1.22 | ₹30,500.00 |
| 50,000+ | ₹1.16 | ₹58,000.00 |
50 × ₹1.97
₹98.50
excl. GST
₹116.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206FR-072ML
₹98.50 for 50 + GST
Specifications
- Resistance
- 2MΩ
- Power(Watts)
- 250mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCV12062M00FKEA#C2078378VISHAY · 1206 | VISHAY | 1206 | 450 | ₹16.99 · 450 in stock | View |
 | RC1206FR-072ML#C137328YAGEO · 1206 | YAGEO | 1206 | 60,700 | ₹1.31 · 60,700 in stock | View |
 | AC1206FR-072ML#C125917YAGEO · 1206 | YAGEO | 1206 | 45,050 | ₹2.21 · 45,050 in stock | View |
 | RVS-06K2004FT#C20627076FH · 1206 | FH | 1206 | 4,600 | ₹1.60 · 4,600 in stock | View |
 | 1206W4F2004T5E#C26120UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 22,200 | ₹0.6747 · 22,200 in stock | View |
