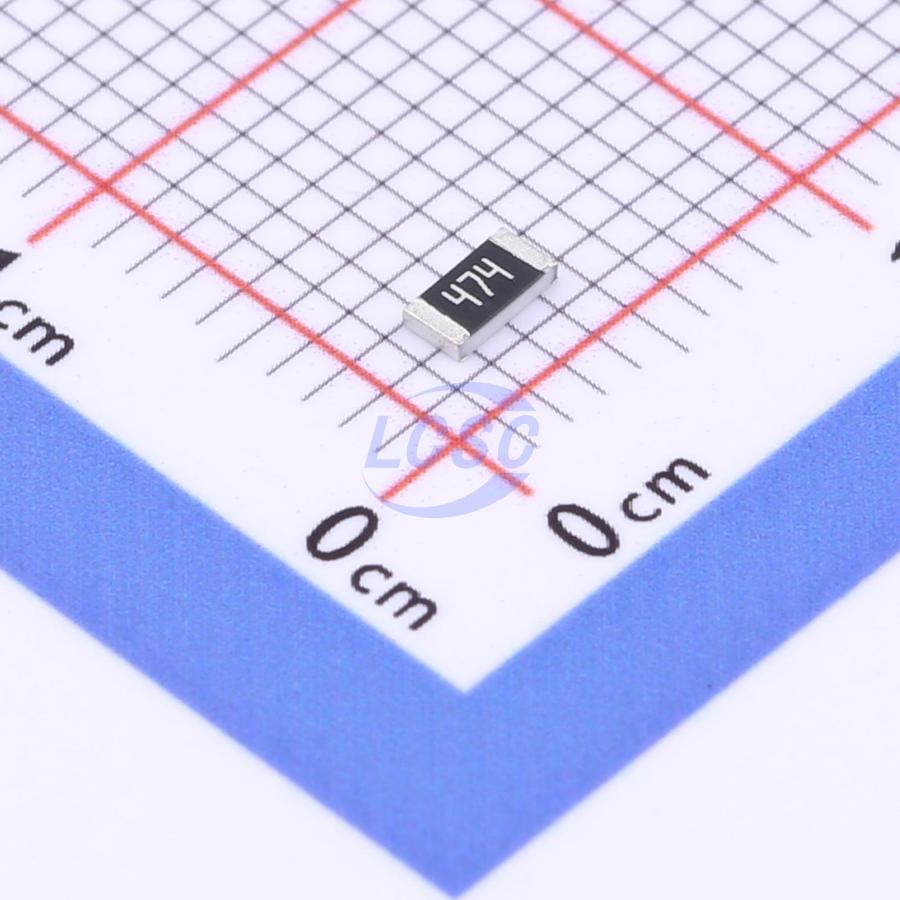

YAGEODatasheet (PDF)
RV1206JR-07470KL
250mW 470kΩ 500V Thick Film Resistor ±5% ±200ppm/℃ 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 470kΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RV1206JR-07470KL
- Store part #
- C873649
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C873649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹2.04 | ₹1,020.00 |
| 1,500+ | ₹1.77 | ₹2,655.00 |
| 5,000+ | ₹1.61 | ₹8,050.00 |
| 25,000+ | ₹1.48 | ₹37,000.00 |
| 50,000+ | ₹1.40 | ₹70,000.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RV1206JR-07470KL
₹125.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 470kΩ
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.03 g
Overview
This specification describes RV0603/0805/1206/2010/2512 high-voltage chip resistors with lead-free terminations, manufactured using thick-film technology.
Applications
- Converters, printer equipment, battery chargers, computers, power supplies, automotive electronics
Key features
- AEC-Q200 certified
- RoHS compliant
- Reduced environmentally hazardous waste
- Enhanced component and device reliability
- No prohibited materials used in product/production process
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
- IEC 62368-1:2018 safety certificate issued by UL Demko, applicable sizes and resistance ranges as follows:
- 0603: 100KΩ ~ 12MΩ
- 0805: 100KΩ ~ 24MΩ
- 1206: 100KΩ ~ 27MΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQV1206J474 TS#C54619643FOJAN · 1206 | FOJAN | 1206 | 6,350 | ₹1.80 · 6,350 in stock | View |
| HV06W4J0474T5E#C2765804UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 9,700 | ₹1.10 · 9,700 in stock | View | |
 | FQV1206F4703TS#C53064385FOJAN · 1206 | FOJAN | 1206 | 4,150 | ₹1.35 · 4,150 in stock | View |
 | RV1206FR-07470KL#C723378YAGEO · 1206 | YAGEO | 1206 | 5,050 | ₹2.25 · 5,050 in stock | View |
 | RMCF1206JT470K#C237785SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | 4,950 | ₹1.28 · 4,950 in stock | View |
