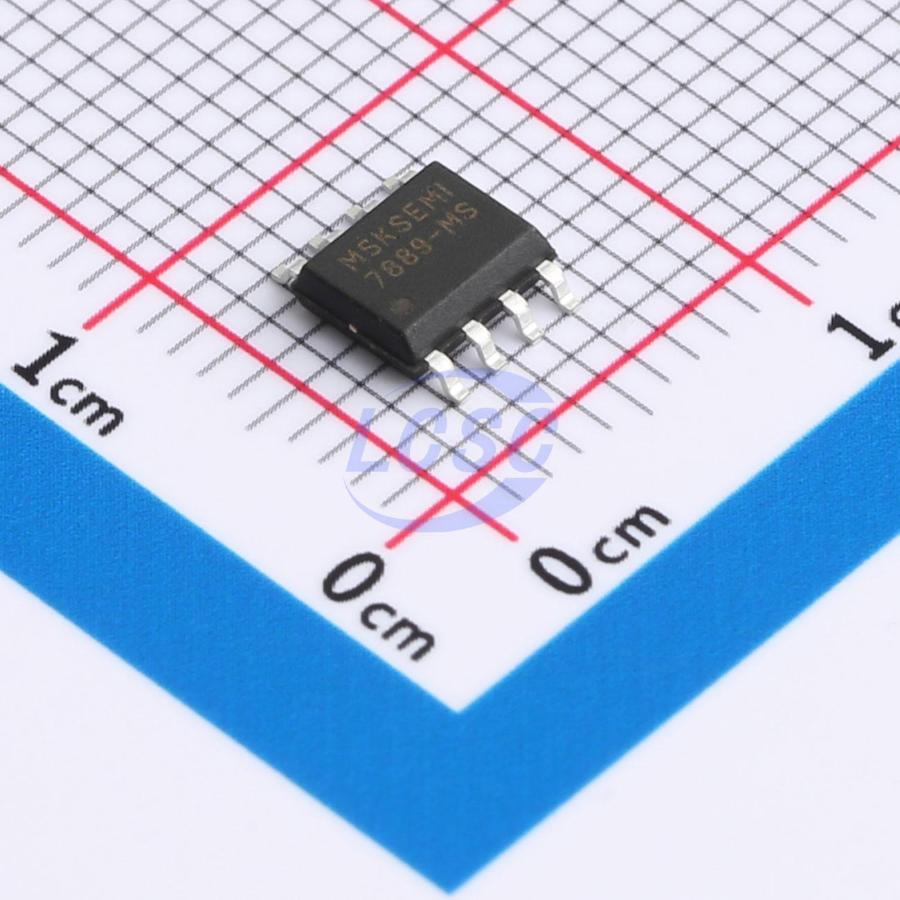

RZ7889-MS
3V~18V SOP-8 Motor Drivers, Controllers
RZ7889-MS DC Bidirectional Motor Driver Circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- RZ7889-MS
- Store part #
- C22462543
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,731 in stock
#C22462543
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.24 | ₹65.24 |
| 10+ | ₹52.19 | ₹521.90 |
| 30+ | ₹46.54 | ₹1,396.20 |
| 100+ | ₹39.58 | ₹3,958.00 |
| 500+ | ₹35.02 | ₹17,510.00 |
| 1,000+ | ₹33.27 | ₹33,270.00 |
1 × ₹65.24
₹65.24
excl. GST
₹76.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RZ7889-MS
₹65.24 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 5A
- Peak Current
- 9A
- RDS(on)
- 58mΩ;71mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.129 g
Overview
RZ7889-MS is a DC bidirectional motor driver IC, suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals for controlling motor forward, reverse, and braking operations. The IC offers excellent noise immunity, ultra-low standby current, and low output on-resistance. In addition, it integrates built-in diodes to suppress reverse kick-back current from inductive loads. The RZ7889-MS is available in an SOP-8 package, compliant with RoHS standards, with a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging robots
Key features
- Single brushed DC motor drive
- Ultra-low standby current, less than 1uA
- Low RDS(ON) resistance
- Maximum continuous output current 5.0A
- Operating voltage range: 3.0V - 18V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP-8
