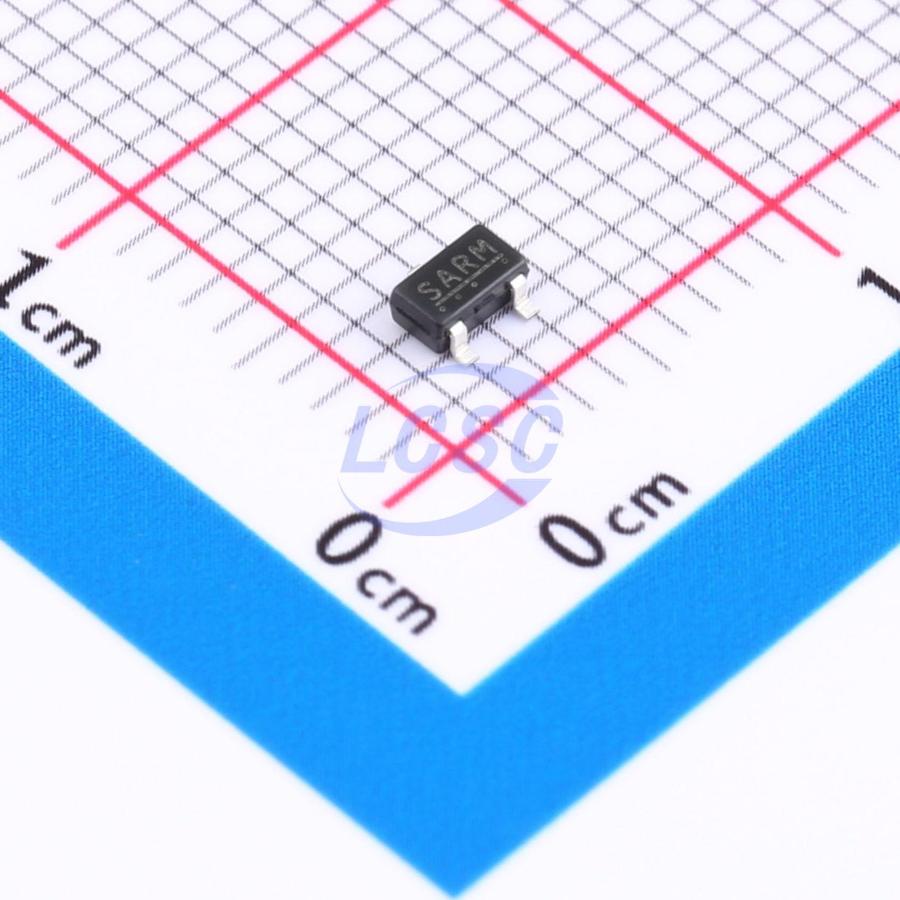

S-1206B28-M3T1U

The S-1206 Series is a positive voltage regulator with ultra low current consumption, low dropout voltage, high-accuracy output voltage, and 250 mA output current developed based on CMOS technology. I/O capacitors are as small as 0.1 μF. S-1206 Series operates at ultra low current consumption of 1.0 μA (typ.). The built-in low-on-resistance transistor realizes low dropout voltage and a large output current. A built-in overcurrent protection circuit prevents the load current from exceeding the current capacity of the output transistor. Compared with voltage regulators using a conventional CMOS technology, more types of capacitors, including small I/O capacitors, can be used with the S-1206 Series. The S-1206 Series features ultra low current consumption and comes in a small package, making them most suitable for portable equipment.

Applications

• Constant-voltage power supply for battery-powered device
• Constant-voltage power supply for cellular phone
• Constant-voltage power supply for portable equipment

Key features

• Output voltage: 1.2 V to 5.2 V, selectable in 0.05 V step
• Input voltage: 1.7 V to 6.5 V
• Output voltage accuracy: ±1.0% (1.2 V to 1.45 V output product: ±15 mV)
• Dropout voltage: 150 mV typ. (3.0 V output product, ΔIour = 100 mA)
• Current consumption: During operation: 1.0 μA typ., 1.5 μA max.
• Output current: Possible to output 250 mA (3.0 V output product, VIN ≥ Vour(S) + 1.0 V)
• Input and output capacitors: A ceramic capacitor of 0.1 μF or more can be used.
• Built-in overcurrent protection circuit: Limits overcurrent of output transistor.
• Operation temperature range: Ta = -40°C to +85°C
• Lead-free, Sn 100%, halogen-free
