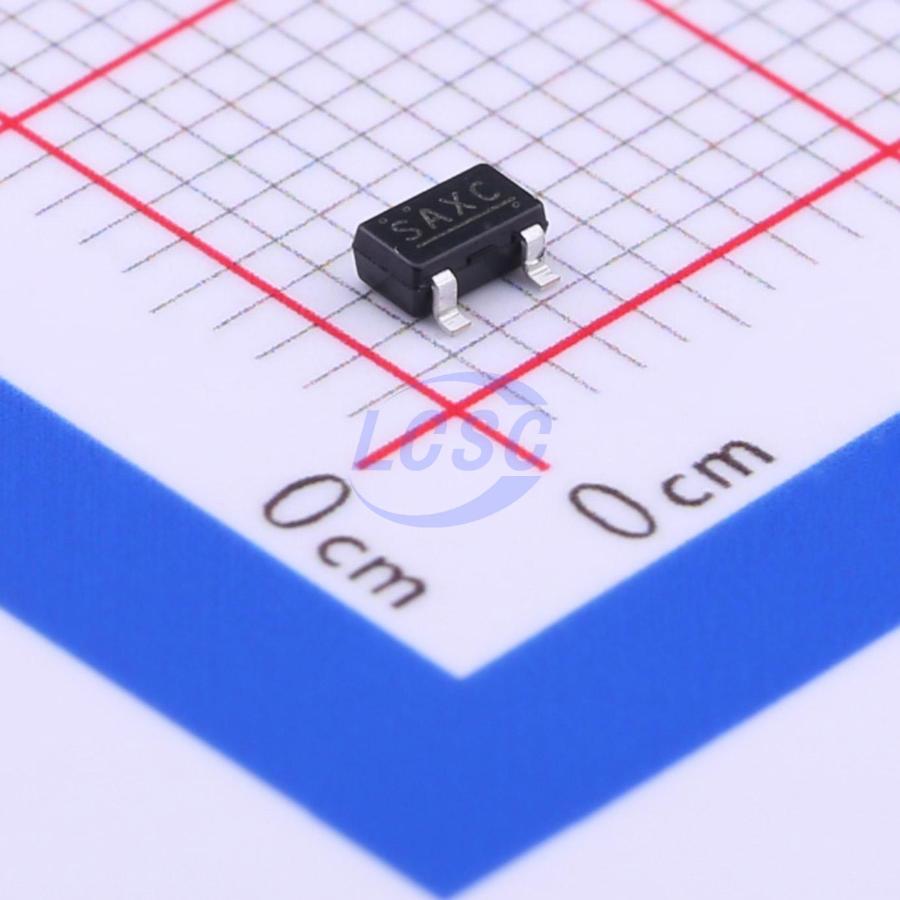

S-1206B33-M3T1U

The S-1206 Series is a positive-voltage regulator developed using CMOS technology, featuring ultra-low quiescent current, low dropout voltage, high-accuracy output voltage, and 250 mA output current. It requires minimal input/output capacitors of only 0.1 μF and operates under ultra-low quiescent current conditions (1.0 μA typ.). In addition, the built-in low on-resistance transistor enables a small input/output voltage differential and high output current. An overcurrent protection circuit is integrated to prevent the load current from exceeding the current capacity of the output transistor. Compared to conventional CMOS-process voltage regulators, this product supports a wider variety of capacitors, including small ceramic capacitors for both input and output. The combination of ultra-low quiescent current and compact packaging makes it ideal for portable devices.

Applications

• Regulated power supply for battery-powered devices
• Regulated power supply for cellular phones
• Regulated power supply for portable devices

Key features

• Output voltage: Selectable from 1.2 V to 5.2 V in 0.05 V increments
• Input voltage: 1.7 V~6.5 V
• Output voltage accuracy: ±1.0% (±15 mV for 1.2 V~1.45 V output products)
• Input/output voltage differential: 150 mV (typ.) (3.0 V output product, IOUT = 100 mA)
• Supply current: Active: 1.0 μA (typ.), 1.5 μA (max.)
• Output current: 250 mA (3.0 V output product, VIN ≥ VOUT(S) + 1.0 V)
• Input/output capacitor: Compatible with ceramic capacitors ≥0.1 μF
• Built-in overcurrent protection circuit: Limits overcurrent through output transistor
• Operating temperature range: Ta = -40°C~+85°C
• Lead-free, Sn 100%, halogen-free
