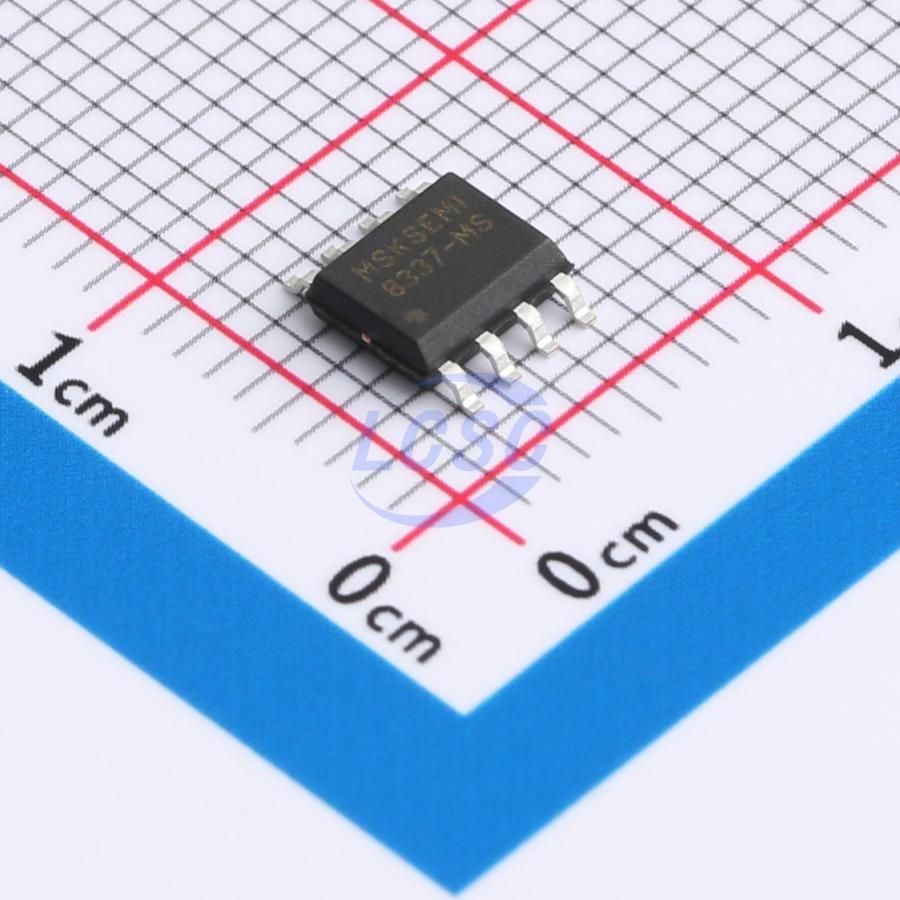

SA8337-MS
3V~18V SOP-8 Motor Drivers, Controllers
SA8337-MS DC Bidirectional Motor Drive Circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SA8337-MS
- Store part #
- C22462545
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,453 in stock
#C22462545
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.58 | ₹87.58 |
| 10+ | ₹69.76 | ₹697.60 |
| 30+ | ₹60.84 | ₹1,825.20 |
| 100+ | ₹51.94 | ₹5,194.00 |
| 500+ | ₹46.50 | ₹23,250.00 |
| 1,000+ | ₹43.90 | ₹43,900.00 |
1 × ₹87.58
₹87.58
excl. GST
₹103.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA8337-MS
₹87.58 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 5A
- RDS(on)
- 58mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.129 g
Overview
SA8337-MS is a DC bidirectional motor driver IC suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals to control motor forward, reverse, and braking operations. The device offers excellent noise immunity, ultra-low standby current, and low output on-resistance. It also incorporates built-in diodes to dissipate reverse surge current from inductive loads. The SA8337-MS is available in an SOP-8 package, complies with RoHS standards, and features a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging
- Robotics
Key features
- Single brushed DC motor drive
- Ultra-low standby current, less than 1uA
- Low RDS(ON) resistance
- Maximum continuous output current 5.0A
- Operating voltage range: 3.0V - 18V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP-8
