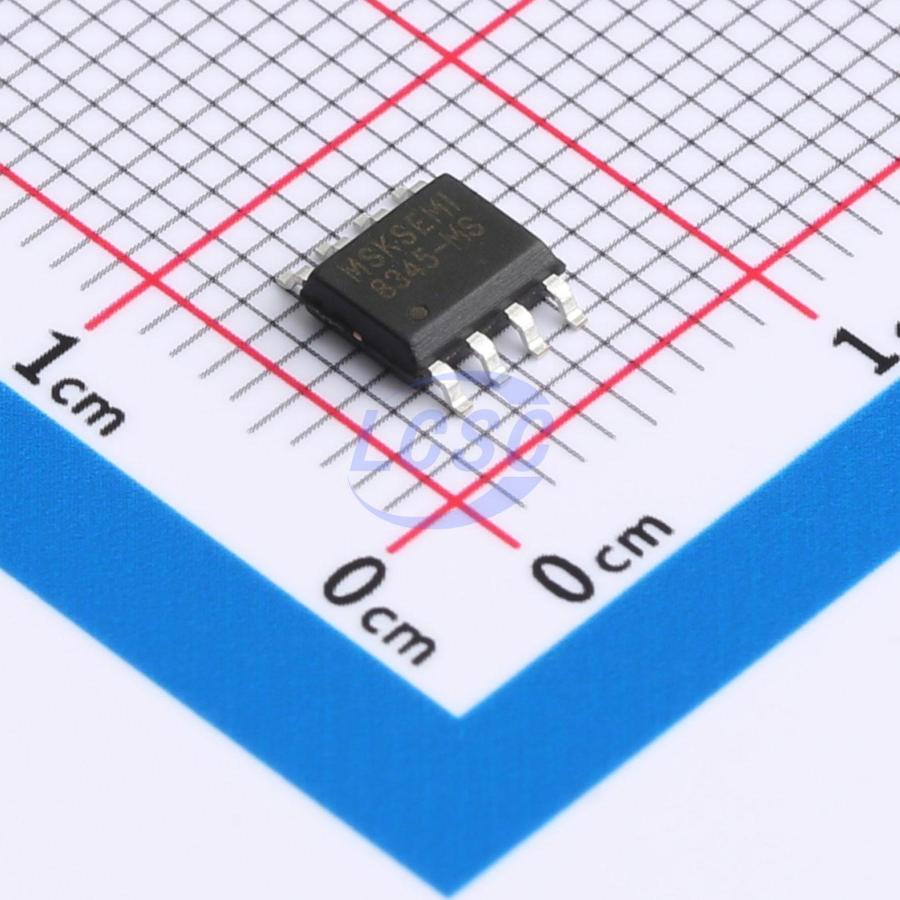

SA8345-MS
3V~30V SOP-8 Motor Drivers, Controllers
SA8345-MS DC Bidirectional Motor Drive Circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SA8345-MS
- Store part #
- C22462556
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,520 in stock
#C22462556
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.64 | ₹90.64 |
| 10+ | ₹72.86 | ₹728.60 |
| 30+ | ₹63.97 | ₹1,919.10 |
| 100+ | ₹55.08 | ₹5,508.00 |
| 500+ | ₹49.88 | ₹24,940.00 |
| 1,000+ | ₹47.06 | ₹47,060.00 |
1 × ₹90.64
₹90.64
excl. GST
₹106.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA8345-MS
₹90.64 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Voltage - Supply
- 3V~30V
- Technology
- Yes
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 6A
- RDS(on)
- 80mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
SA8345-MS is a DC bidirectional motor driver IC, suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals for controlling motor forward, reverse, and braking operations. The IC offers excellent noise immunity, ultra-low standby current, and low output on-resistance. It also incorporates built-in diodes to dissipate reverse surge currents from inductive loads. The SA8345-MS is available in an SOP-8 package, complies with RoHS standards, and features a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging robots
Key features
- Single brushed DC motor drive
- Ultra-low standby current, <1uA
- Low RDS(ON) resistance
- Maximum continuous output current 6.0A
- Operating voltage range: 3.0V - 30V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP8
