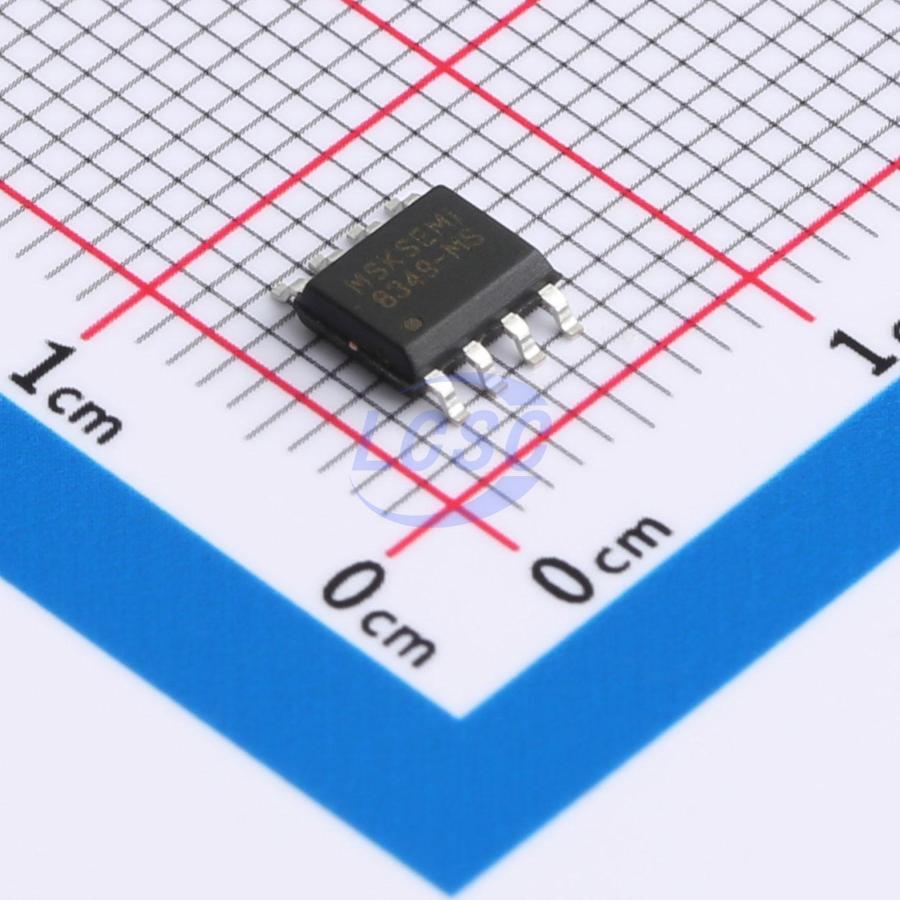

SA8349-MS
3V~30V SOP-8 Motor Drivers, Controllers
DC bidirectional motor drive circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SA8349-MS
- Store part #
- C22462555
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,942 in stock
#C22462555
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.50 | ₹91.50 |
| 10+ | ₹73.72 | ₹737.20 |
| 30+ | ₹64.84 | ₹1,945.20 |
| 100+ | ₹55.95 | ₹5,595.00 |
| 500+ | ₹50.53 | ₹25,265.00 |
| 1,000+ | ₹47.92 | ₹47,920.00 |
1 × ₹91.50
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA8349-MS
₹91.50 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Voltage - Supply
- 3V~30V
- Technology
- Yes
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 6A
- RDS(on)
- 80mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
SA8349-MS is a DC bidirectional motor driver IC, suitable for toy motor drives, automatic valve motor drives, electromagnetic door lock drives, and similar applications. It features two logic input terminals for controlling motor forward, reverse, and braking. The IC offers excellent noise immunity, minimal standby current, and low output on-resistance. In addition, it incorporates built-in diodes for freewheeling of reverse surge current from inductive loads. The SA8349-MS comes in an SOP-8 package, is RoHS compliant, and features a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging robot pin definitions
Key features
- Single brushed DC motor drive
- Ultra-low standby current, <1uA
- Low RDS(ON) resistance
- Maximum continuous output current 6.0A
- Operating voltage range: 3.0V - 30V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP8
