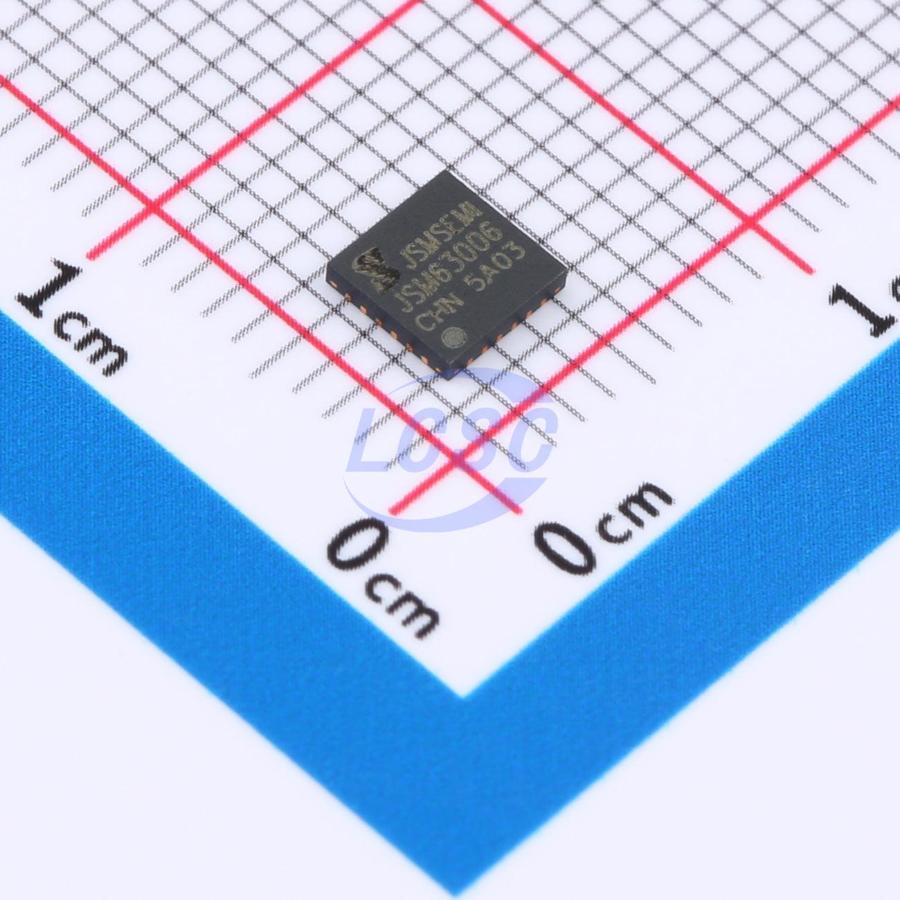

SBD63006MUV-E2
8V~28V QFN-24-EP(4x4) Motor Drivers, Controllers RoHS
1.5A 28V three-phase brushless motor drive circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SBD63006MUV-E2
- Store part #
- C44606229
- Package / case
- QFN-24-EP(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,326 in stock
#C44606229
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.19 | ₹70.19 |
| 10+ | ₹62.37 | ₹623.70 |
| 30+ | ₹58.45 | ₹1,753.50 |
| 100+ | ₹54.53 | ₹5,453.00 |
| 500+ | ₹52.15 | ₹26,075.00 |
| 1,000+ | ₹50.84 | ₹50,840.00 |
1 × ₹70.19
₹70.19
excl. GST
₹82.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SBD63006MUV-E2
₹70.19 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Interleaved conduction protection;Motor stall protection;Motor speed indication
- Voltage - Supply
- 8V~28V
- Technology
- Yes
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 1.7mA
- Output Current
- 1.5A
- Number of Half Bridges
- 3
- RDS(on)
- 800mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
BD63006 is a three-phase brushless motor driver rated at 33V supply voltage and 1.5A output current. It uses external Hall sensors for commutation and generates PWM drive signals via PWM control signal input. The power supply can be 12V or 24V, with various control and protection functions integrated internally, making it suitable for a wide range of applications. Thanks to its compact package, it can be used with small-diameter motors.
Applications
- OA machines
- Automation equipment
- Robots
Key features
- Built-in 120° commutation logic circuit
- Low-impedance DMOS output
- PVWM control mode (low-side switch)
- Built-in power-saving circuit
- Forward/reverse function
- Short brake function
- FG output (1FG/3FG switchable)
- Built-in current limiting protection (CL), thermal shutdown (TSD), overcurrent protection (OCP), undervoltage lockout (UVLO), overvoltage lockout (OVLO), motor lock protection (MLP)
