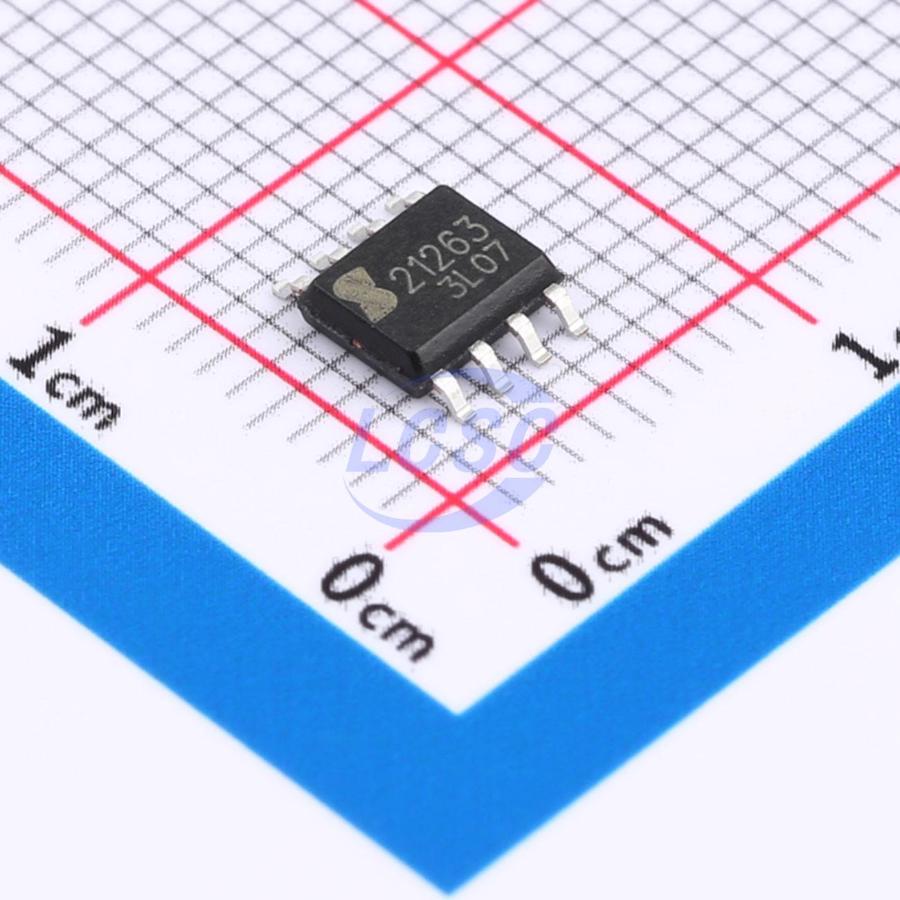

SDH21263TR
9V~20V 1.5A 1.2A SOP-8 Gate Drivers RoHS
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SDH21263TR
- Store part #
- C7466375
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,595 in stock
#C7466375
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.66 | ₹123.30 |
| 50+ | ₹19.20 | ₹960.00 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹13.92 | ₹6,960.00 |
| 2,500+ | ₹13.49 | ₹33,725.00 |
| 4,000+ | ₹12.71 | ₹50,840.00 |
5 × ₹24.66
₹123.30
excl. GST
₹145.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SDH21263TR
₹123.30 for 5 + GST
Specifications
- Quiescent Current
- 190uA
- Voltage - Supply
- 9V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 50ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
SDH21263 is a high voltage, high speed power MOSFET drivers with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross- conduction. The floating channel can be used to drive an N- channel power MOSFET in the high- side configuration which operates up to 200 V.
Applications
- Motor Control
- Air Conditioners/Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +250 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V / msec
- Allowable negative Vs capability: - 9V
- Gate drive supply range from 6 V to 20V
- Cross- conduction prevention logic
- Deadtime: 200ns
- Matched propagation delay for both channels
- Wide operating temperature range - 40°C ~ 125°C
- Typically output Source/Sink current capability: 1.2A/1.5A
- RoSH compatible
